Kadee HO #156 'Scale' Whisker Metal Couplers with Draft Gear boxes Long 25/64" Centerset Shank - 2 Pair

Description

Kadee HO #156 'Scale' Whisker Metal Couplers with Draft Gear boxes Long 25/64" Centerset Shank - 2 Pair

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.  Use the provided insulated gearbox.

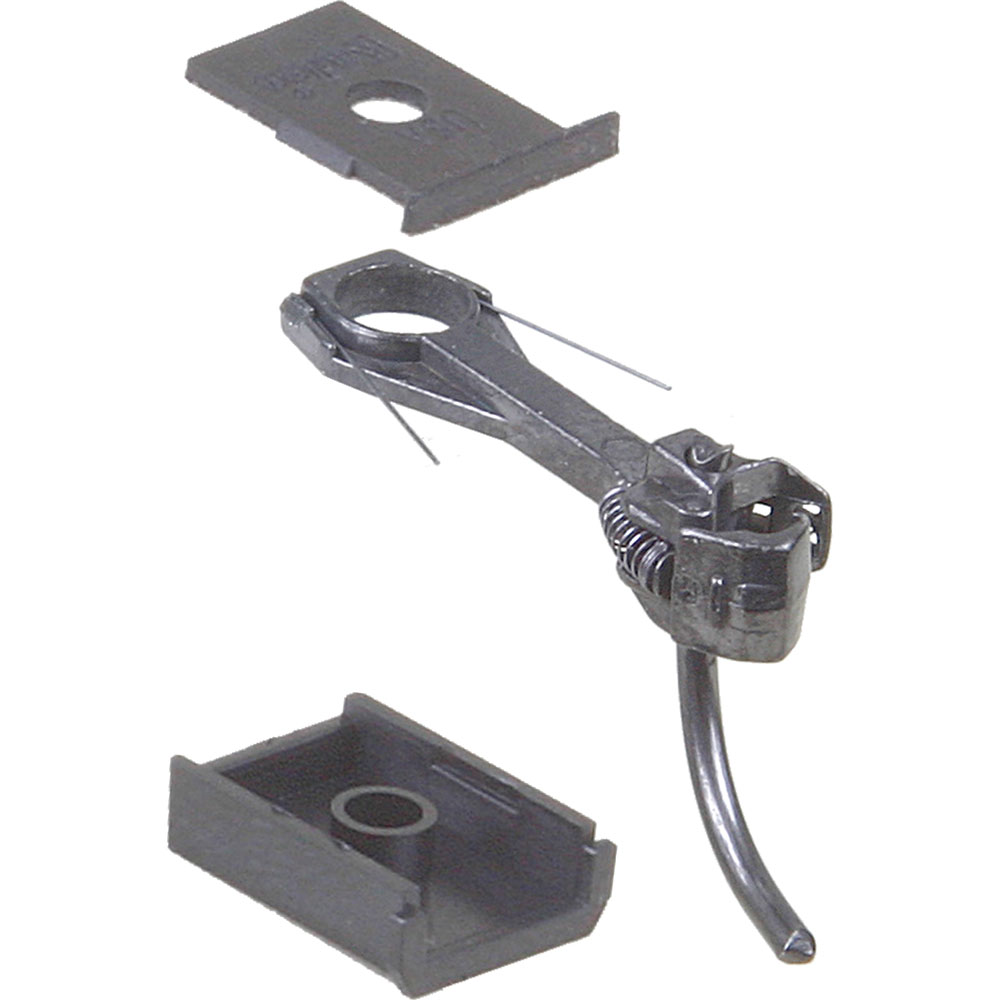

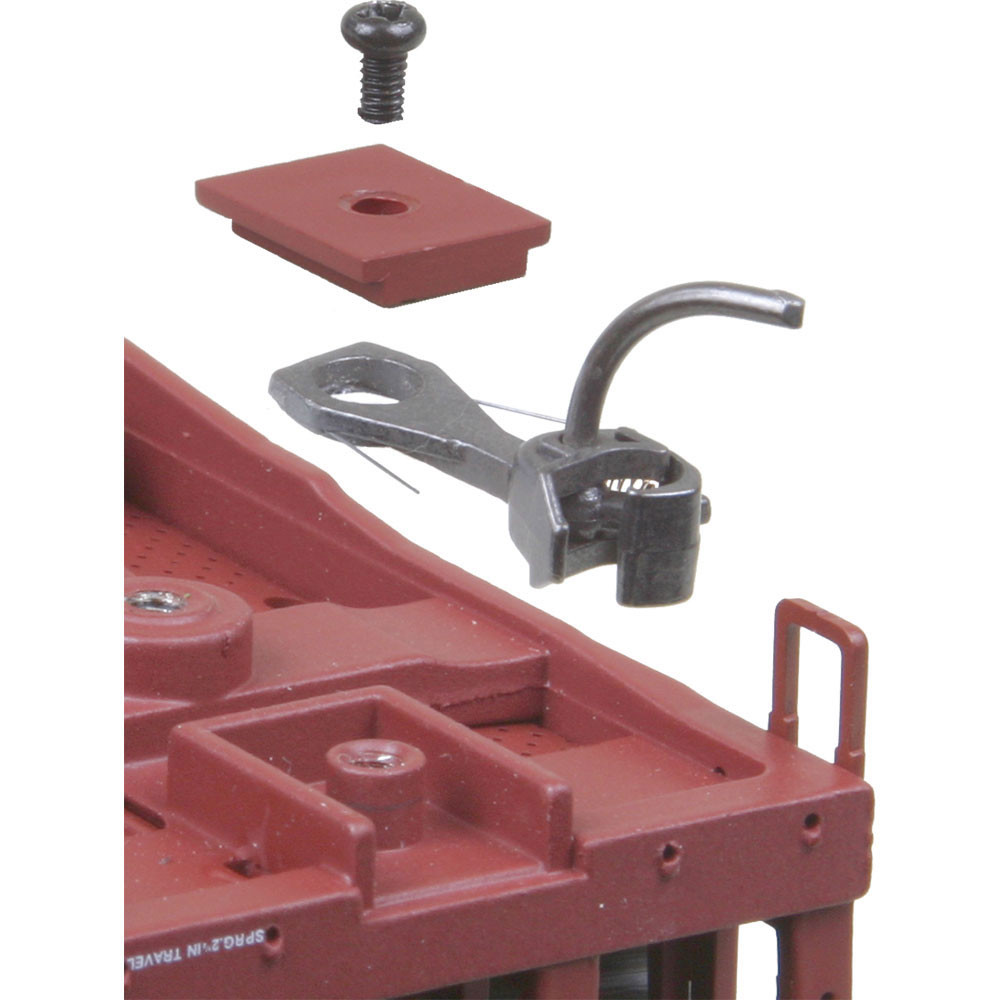

The #156 ‘Scale All Metal Self-Centering WHISKER Coupler features a ‘Scale’ Metal Coupler, a smaller head coupler which is more to scale and is patterned after the type 'E’ couplers & Metal WHISKER Centering Spring, insulated Draft Gear Box and Lid. The #156 Coupler may be mounted with the supplied #242 draft gear box, other Kadee HO-Scale draft gear box shown below or with the Manufacturers cast-on coupler pockets. The coupler will couple and uncouple with other Kadee HO and HOn3 couplers. The coupler has the same shank length as the #26, 36 or 46 coupler which will allow the modeler to remove the existing #26, 36 or 46 coupler and replace with the new smaller coupler. The #156 coupler is made of the same metal as the #46 for strength and rigidity.

Package Includes:

(2) Pair #156 Scale Whisker Metal Couplers - Long Centerset Shank

(2) Pair #242 Snap-Together Gearboxes

(2) #625 Knuckle Springs

#156 Scale Whisker Metal Coupler Features:

#242 Snap-Together Gearbox Features:

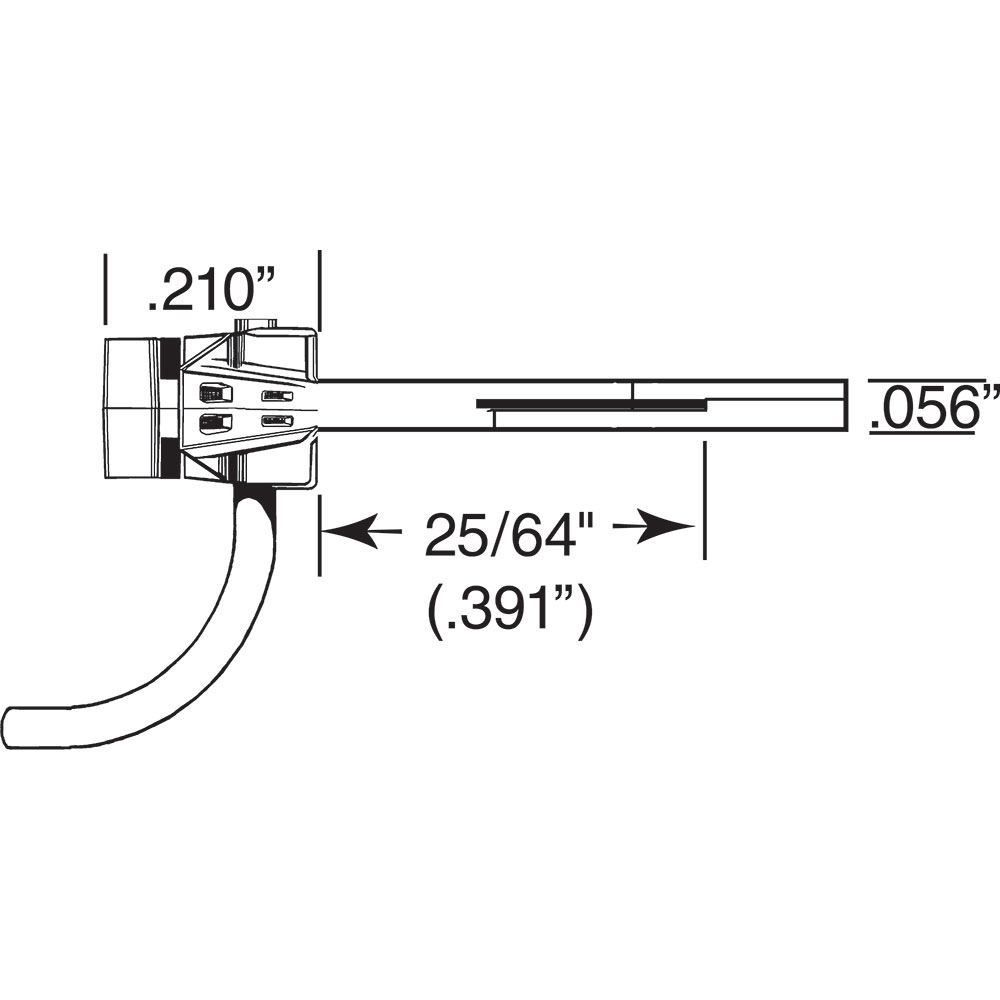

Mounting Specifications:

Don’t forget these other helpful tools for your Kadee coupler installations:

#206 Insulated Muti-Purpose Coupler Height Gauge

#231 Greas-em Dry Graphite Lubricant

#237 Coupler Trip Pin Pliers

#240 Double Headed Pin Vise

#241 Dual Tool Manual Uncoupling Tool and Spring Pick

#246 Tap ‘2-56’ and Drills, #50 and #43

#780 Tap ‘0-80’ and Drills, #55 and #52
