Kadee
Kadee HO #149 Whisker Metal Couplers with Draft Gear boxes Long 25/64" Overset Shank - 2 Pair
- In Stock:
- 12
- Scale:
- HO
- SKU:
- KAD149
- Availability:
- Y
Description
Kadee HO #149 Whisker Metal Couplers with Draft Gear boxes Long 25/64" Overset Shank - 2 Pair
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #29 coupler.

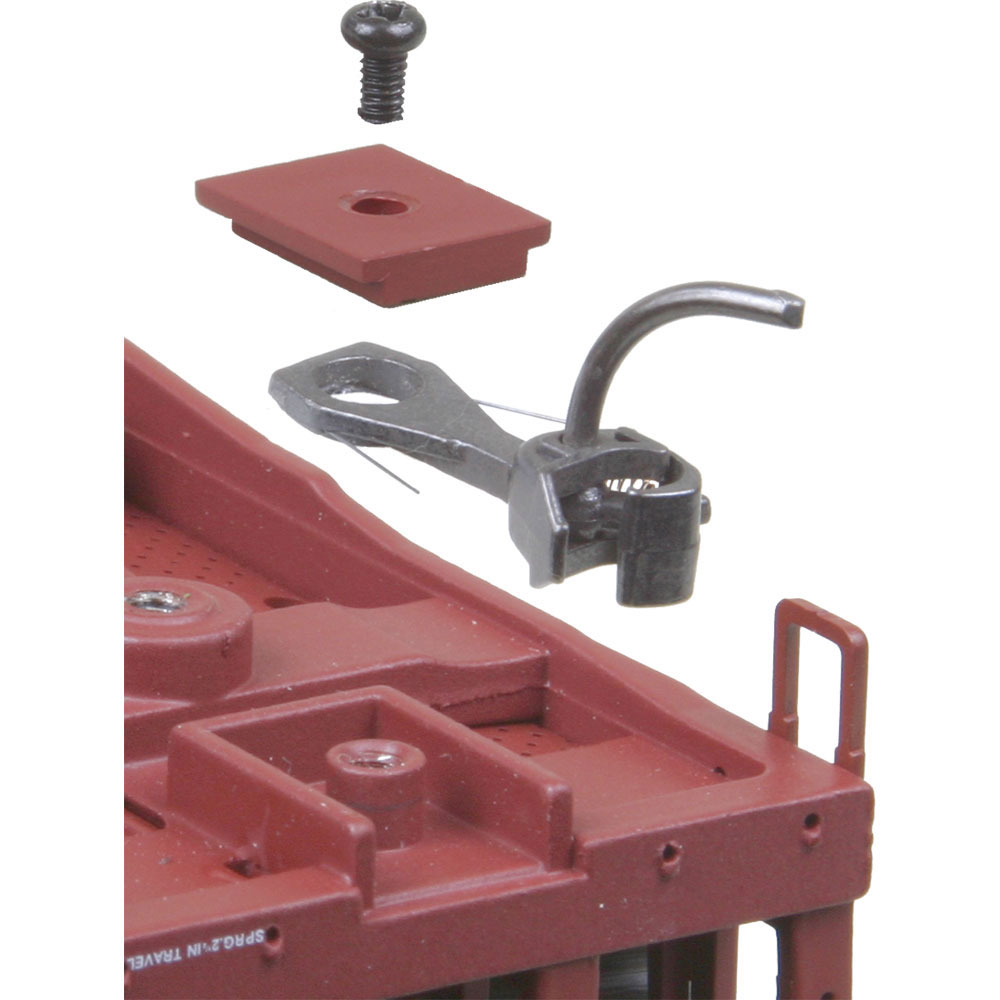

This industry leading coupler features an all metal coupler head, shank, and Whisker centering spring and comes complete with insulated draft gearbox and lid. The #149 Magne-Matic Whisker Metal Coupler may be mounted with the included #242 Snap-Together Gearbox or with other manufacturers cast-on coupler pockets.

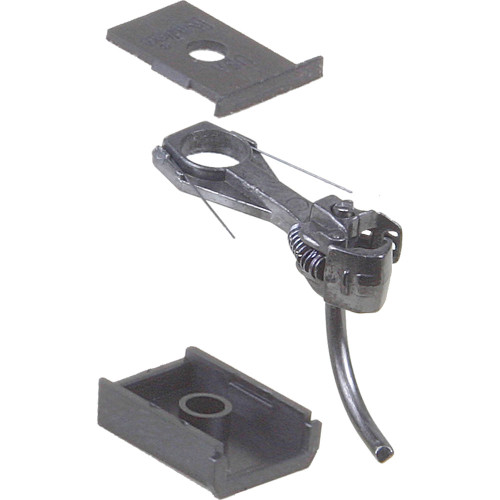

Package Includes:
(2) Pair #149 Whisker Metal Couplers - Long Overset Shank
(2) Pair #242 Snap-Together Gearboxes
(2) #622 Knuckle Springs
#149 Whisker Metal Coupler Features:
|
Material |
- Metal |
|
Shank Length |

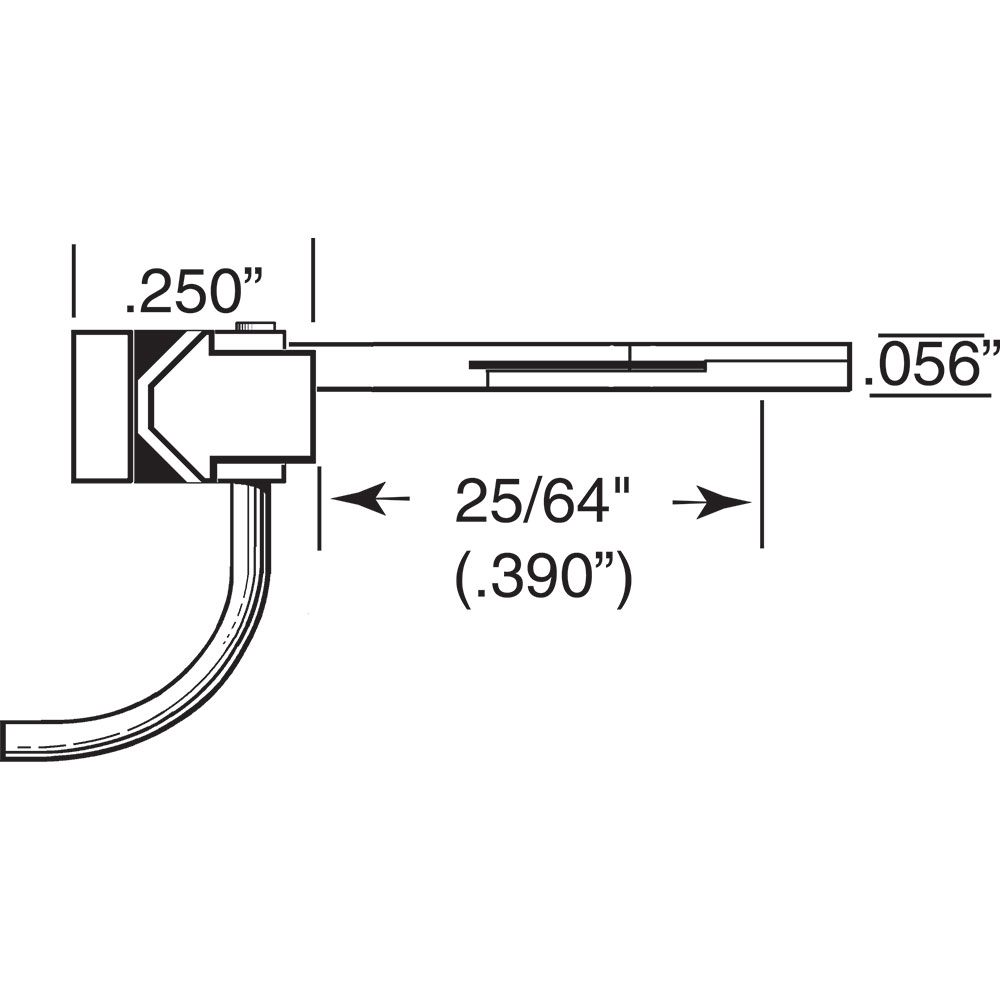

- Long 25/64" center hole to back of coupler head |
|
Coupler Offset |
- Overset |
|
Knuckle Spring |
- #622 |
|
Centering System |
- Whisker |
|
Head |
- Standard Head |
|
Works In Place of |

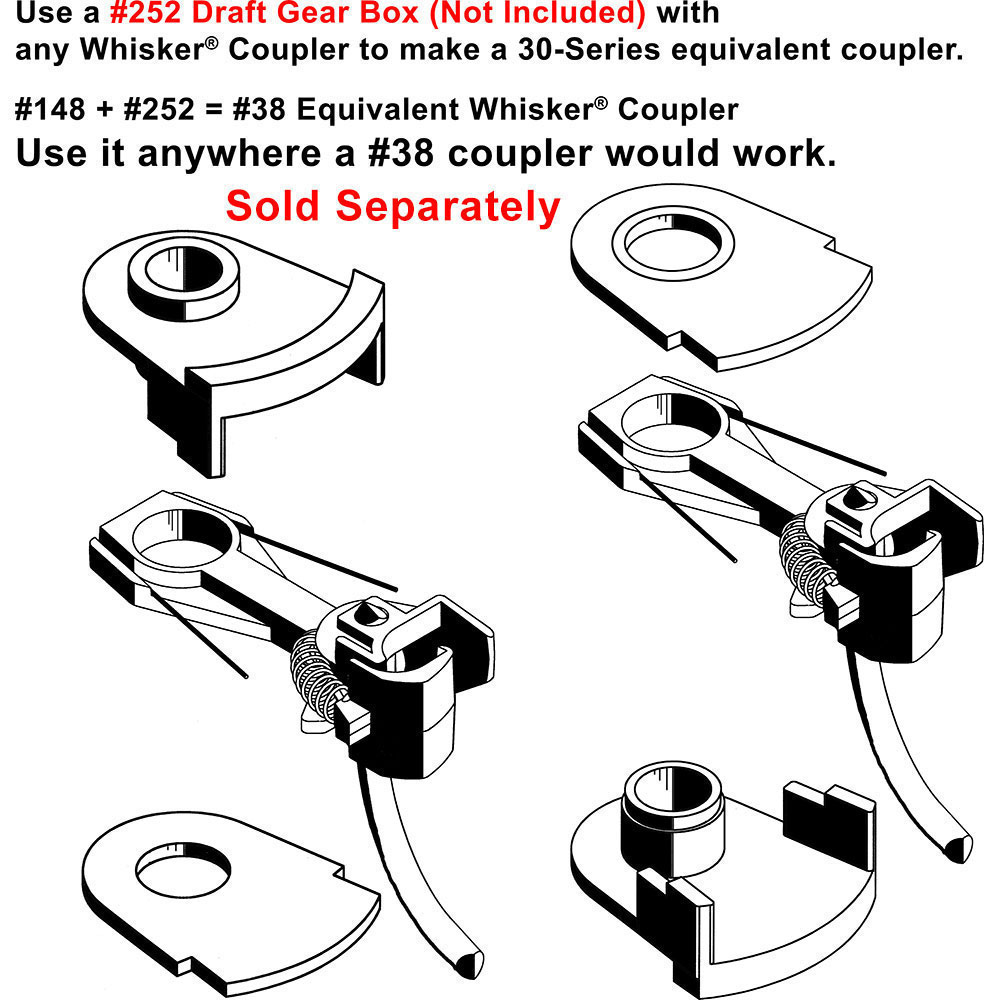

- #29, #39, #149 in a #252 box, Long Overset ‘clone’ couplers |
|
Works With |
- #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
#242 Snap-Together Gearbox Features:
|
Material |
- Insulated Plastic |
|
Lid Type |
- Snap-Together |
|
Dimensions |
- 7/16"L x 5/16"W x 1/8"H |
|
Works With |
- NO.5, #58, 20-Series and 40-Series, All Whisker Couplers |

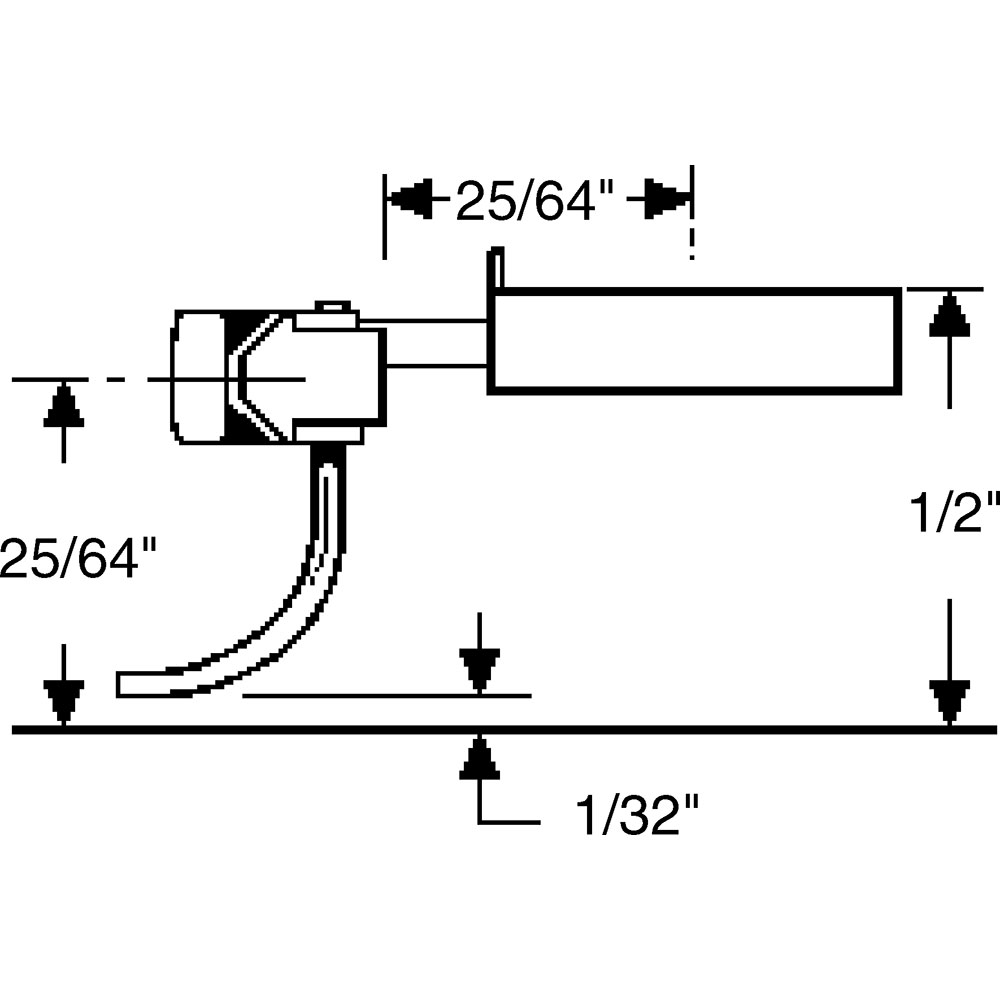

Mounting Specifications:
|
Mounting Height |
- 1/2" |
|
Centerline |
- 25/64" |
|
Trip Pin Height |
- 1/32" |
|
Center Hole |
- 2-56 Insulated Screws are the most commonly used. Screw length will vary. |
Don’t forget these other helpful tools for your Kadee coupler installations:
#206 Insulated Muti-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap ‘2-56’ and Drills, #50 and #43
#780 Tap ‘0-80’ and Drills, #55 and #52
Lombard Hobbies - Modelers Helping Modelers for Over 40 years!
