Tangent Scale Models HO 19070-03 General American 1917-design 10,000 Gallon Insulated Tank Car 'Imperial Oil Limited 1918+' IOX #5481

Description

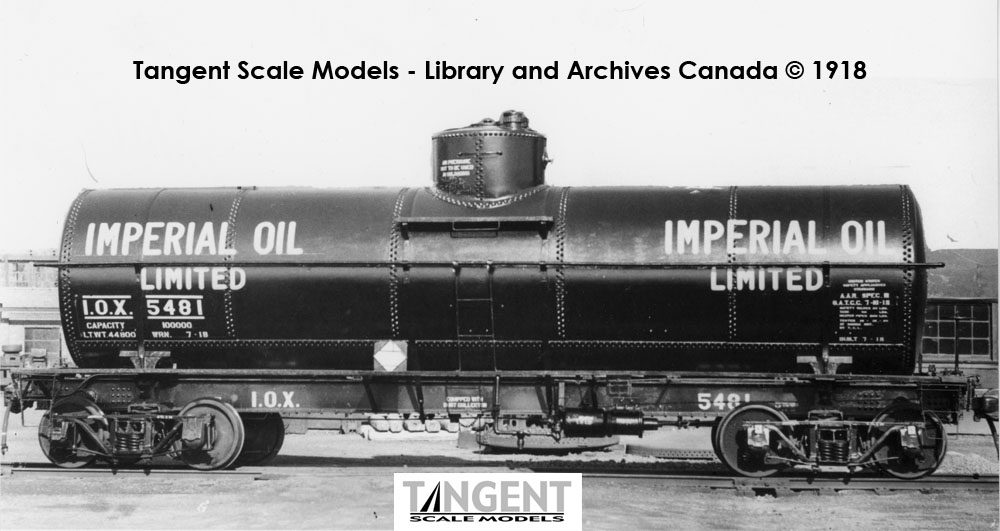

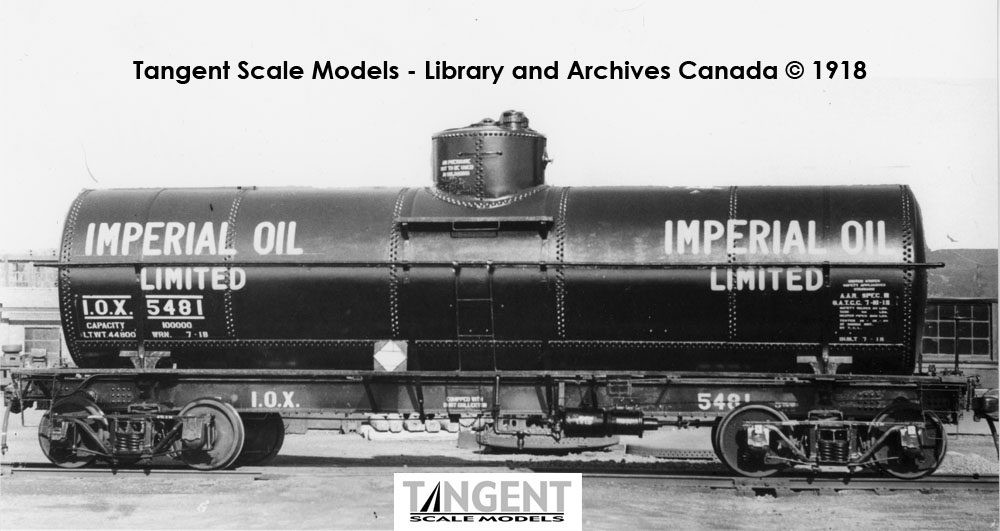

Please note picture is representative of the item but may not be same road number. Always refer to product description for actual product details.

Tangent Scale Models HO 19070-03 General American 1917-design 10,000 Gallon Insulated Tank Car 'Imperial Oil Limited 1918+' IOX #5481

IOX ‘Imperial Oil Limited 1918+’ is the earliest tank car from our 2022 release, and it is a black car with white stenciling.  This car is lettered for ‘Imperial Oil Limited’ which was initially part of Standard Oil before the break-up in 1911.  At the time of the break-up Imperial Oil was transferred to Jersey Standard Oil, which was later renamed to Exxon.  This car has lots of stenciling on it, and includes imperial gallonages on the ends of the car, but also has ‘United States Safety Appliances Standard’ lettering.  Our IOX ‘Imperial Oil Limited’ replicas come with era-correct K-brakes

Prototype Information:

By the end of World War I, U.S. production of oil and oil-related products was sharply increasing thanks to the combination of war-related demands as well as demands from home. In order to move oil and new consumer products, tank car producers introduced new car designs. In 1917 General American Tank Car introduced a new general service 10,000 gallon non-insulated tank car. Built in East Chicago, IN, these cars were easily identifiable by their circumferential rivets that surrounded the tank body, with notably different heights between the courses. These ‘radial course’ tank cars utilized steel bolster plates that rise up vertically to hold the tank in place, complete with a ‘web’ section behind to minimize steel consumption.

At a time of fairly monochromatic box cars plying the rails, most consumable products and oil shippers proudly displayed their company markings on the tanks. This car design was no exception, with Sinclair being a dominant purchaser of tank cars of this type. Additionally, many smaller oil shippers had fleets of these cars during the oil boom years. Finally, as many oil businesses failed, the cars ended up back with GATC and were restenciled with new owner markings and were placed back into service for a new owner. Between Union Oil of California, Imperial Oil, and other schemes, think of this as one of the first ‘crude oil’ tank cars of consequence. Forget boring present day tanks. These cars were the most prolific tank cars built during the first tank car building boom, and were found everywhere from 1917 to 1970.

• Product: GATC 1917-design 10000 Gallon Tank Car
• Scale: HO Scale 1:87.1
• Truck: Tangent ASF 50-Ton Cast Steel Spring Plank Truck with separate brake beams
• Wheels: CNC-Machined 33″ Flat Back Wheels

Features for these replicas include:

• Features for these awesome replicas include:
• Circumferential riveted tank body and riveted underframe (count ‘em, there are many!)
• Radial course tank body – note the 'stairstep' appearance
• All-new underframe for the GATC 1917-design
• 'See-through' cast knee above the bolsters
• Accurate dome appliances
• Dimensionally-correct hazardous placards with accurate hole detail
• Separately applied tank handrail
• Separately applied tank strap detail
• KC- or AB- brake variations depending on the prototype car
• Inclusion of Cardwell draft sill springs depending on the prototype car, otherwise 'oval' frame openings where the springs were removed
• Different hand brake appliance options depending on the prototype car
• Highly correct 'true to life colors
• “Hyper-Accurate” lettering including exact fonts and lettering placement, including lettering applied to the underframe and air reservoir
• Durable wire grab irons and coupler lift bars
• Separate air hoses
• 'Near-scale' draft gear box with side detail
• Kadee scale-head couplers
• CNC-machined 33” wheels in high-quality Tangent Scale Models ASF cast steel truck with spring plank and with separate brake beams
• Replacement semi-scale wheels available separately from Tangent
• Multiple road numbers for each scheme – these cars often traveled in groups of more than one
• Recommended age 14 years and older
