Kadee HO #119 SE Shelf Whisker Metal Couplers with Draft Gear boxes Medium 9/32" Centerset Shank - 2 Pair

(No reviews yet) Write a Review
$5.99 $5.09
You save $0.90
In Stock:
5
Scale:
HO
SKU:
KAD119
Availability:
Y

Description

Kadee HO #119 SE Shelf Whisker Metal Couplers with Draft Gear boxes Medium 9/32" Centerset Shank - 2 Pair

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

The #119 Kadee Magne-Matic Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #119 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets.

The #119 coupler will work anywhere a NO.5, #28, #38, #58, #118, #119, #148 & #158 Coupler will work.

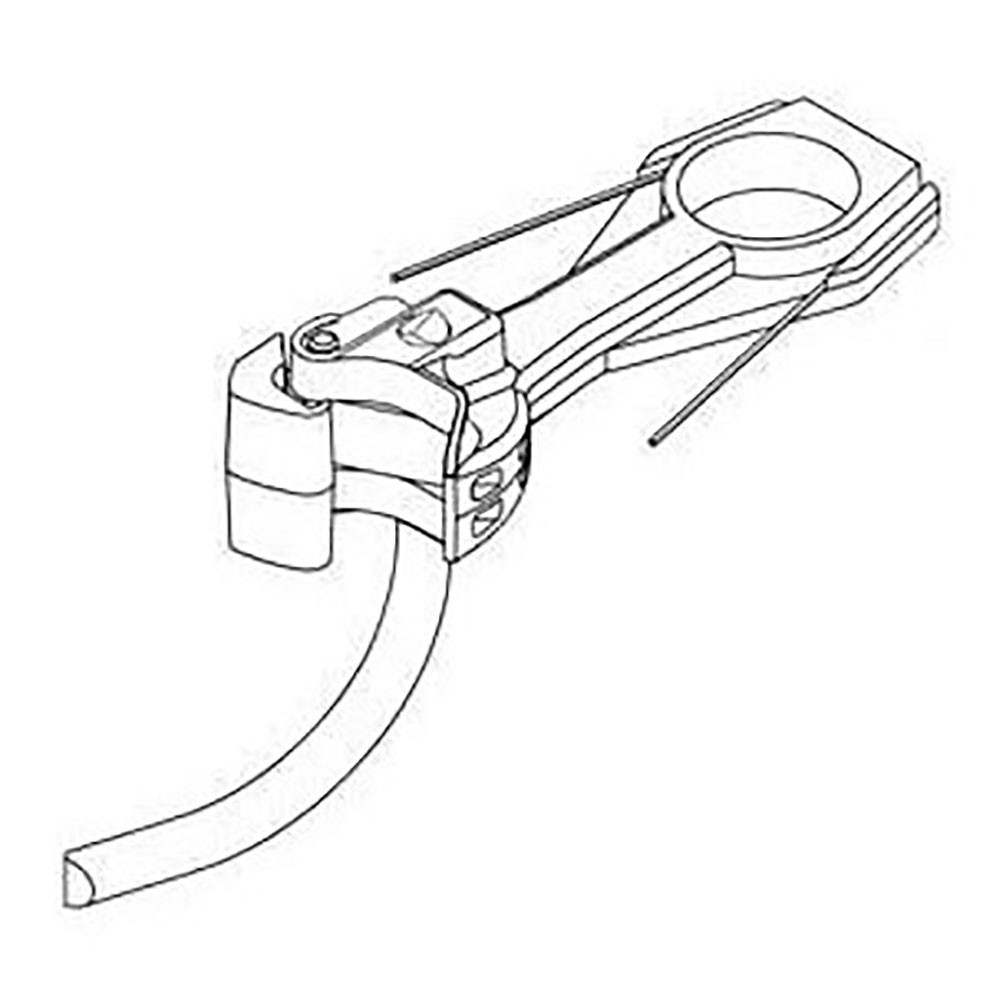

The Kadee #119 coupler represents the prototypical Type "SE" coupler which is a standard Type "E" coupler with a top and bottom shelf (also called hoods). The #119 SE coupler has the patented Kadee ‘Whisker’ centering spring intergraded into the shank and is now a once piece drop in coupler. The top shelf can be removed and the coupler will then represent the bottom shelf Type ‘SBE’ coupler. There would be no reason to remove the bottom shelf since our #58 and #158 already represent the standard Type ‘E’ coupler with a medium shank and our short shank #153 and long shank #156 also are ‘scale head’ couplers.

The #119 is an all metal, scale head, medium length, centerset coupler with the same basic mounting dimensions as our #5, #148, #58 and #158 couplers. It has been designed and tested to function with all of Kadee's HO and HOn3 couplers, standard and scale head. Note that the top hood protrudes quite a bit and may interfere with bodywork on certain models. So there will be certain mounting limitations with the height of the top hood. The #118 and #119 are ‘fully functional’ shelf couplers. When two #119 couplers or a #119 and a #118 SF shelf couplers are coupled together the bottom shelves will keep the knuckles from sliding up or down out of each other. With these shelf couplers you can no longer simply pick up a car and expect the couplers to slip apart. You need to slightly twist the cars for the couplers to disengage or you'll end up lifting the whole string of cars

The #119 is a Type ‘SE’ shelf coupler and was used in the early 1970's. If you wish to modify the #119 into a Type ‘E’ bottom shelf coupler to be used from 1954 onward you can simply trim off the top shelf. Carefully snip off the thin top shelf area down to the level surface of the coupler head then file the area smooth and touch it up with black paint or appropriate weathering. Care should be taken not to get paint in the hinge of the coupler head. Also, by removing the bottom shelf as well as the top, the #119 can represent the Type ‘E’ coupler.

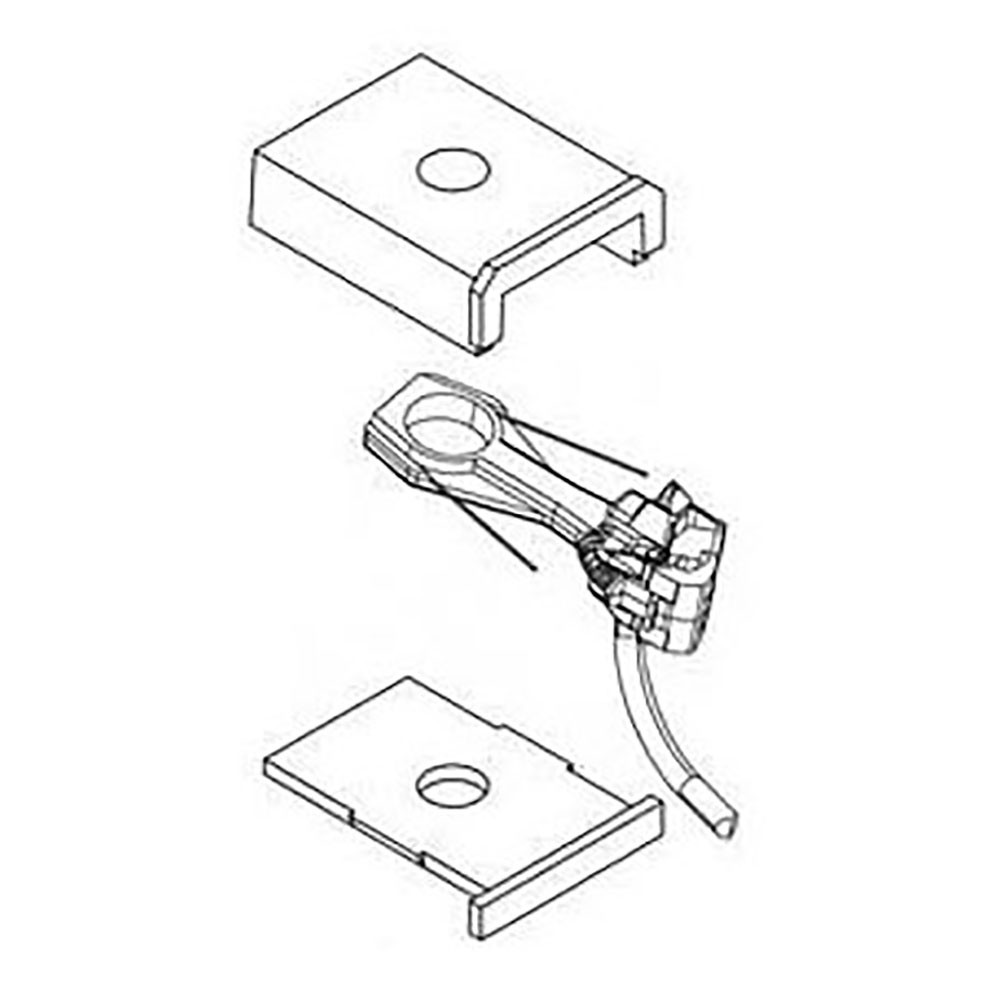

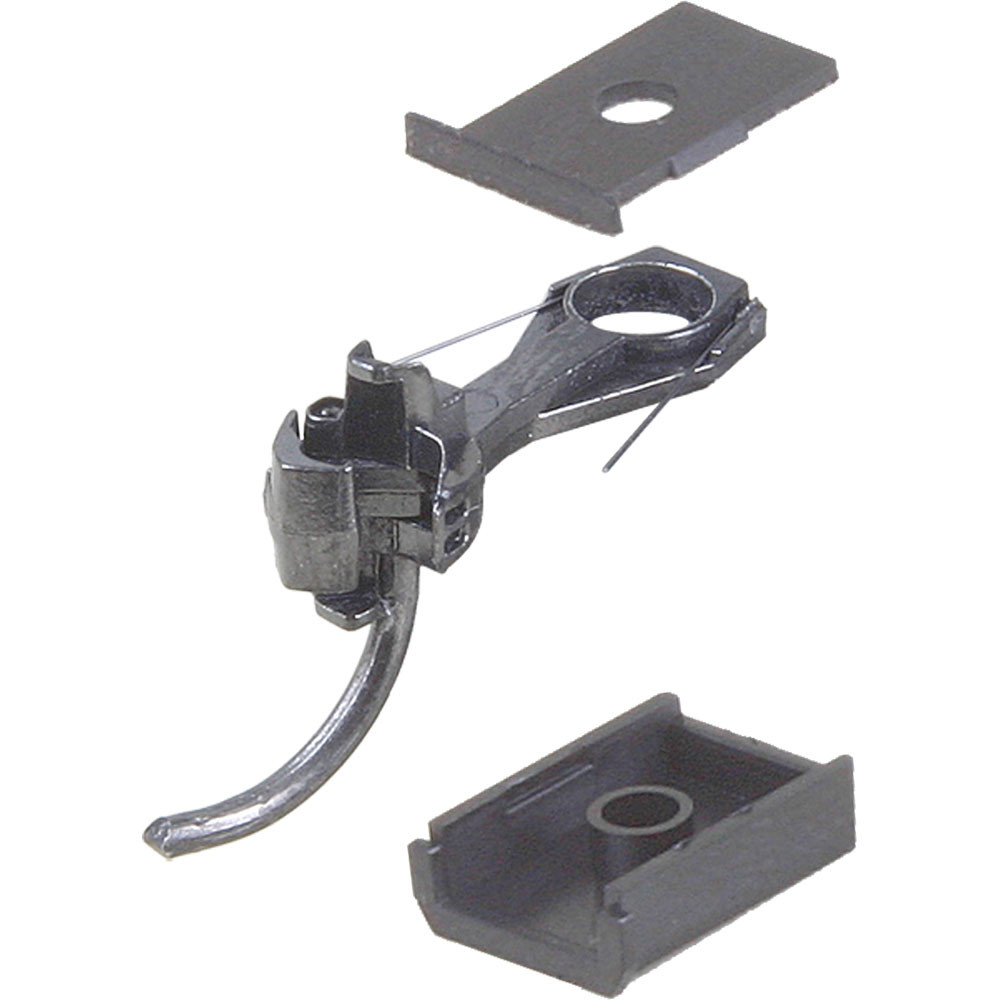

Package Includes:

(2) Pair SE Shelf Metal Whisker Magne-Matic Metal Coupler - Medium Centerset Shank

(2) Pair #242 Snap-Together Gearboxes

(2) #625 Knuckle Springs

#119 Whisker Metal Coupler Features:

Material

 -   Metal

Shank Length

 -   Medium (9/32") (center hole to back of coupler head)

Coupler Offset

 -   Centerset

Knuckle Spring

 -   #625

Centering System

 -   Whisker

Head

 -  SE Metal ShelfHead

Works In Place of

 -   NO.5, #58, #28, #38, #148 in a #252 box, #118, #119, #158, medium centerset ‘clone’ couplers

Works With

 -   #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes

#242 Snap-Together Gearbox Features:

Material

 -   Insulated Plastic

Lid Type

 -   Snap-Together

Dimensions

 -   7/16"L x 5/16"W x 1/8"H

Works With

 -   NO.5, #58, 20-Series and 40-Series, All Whisker Couplers

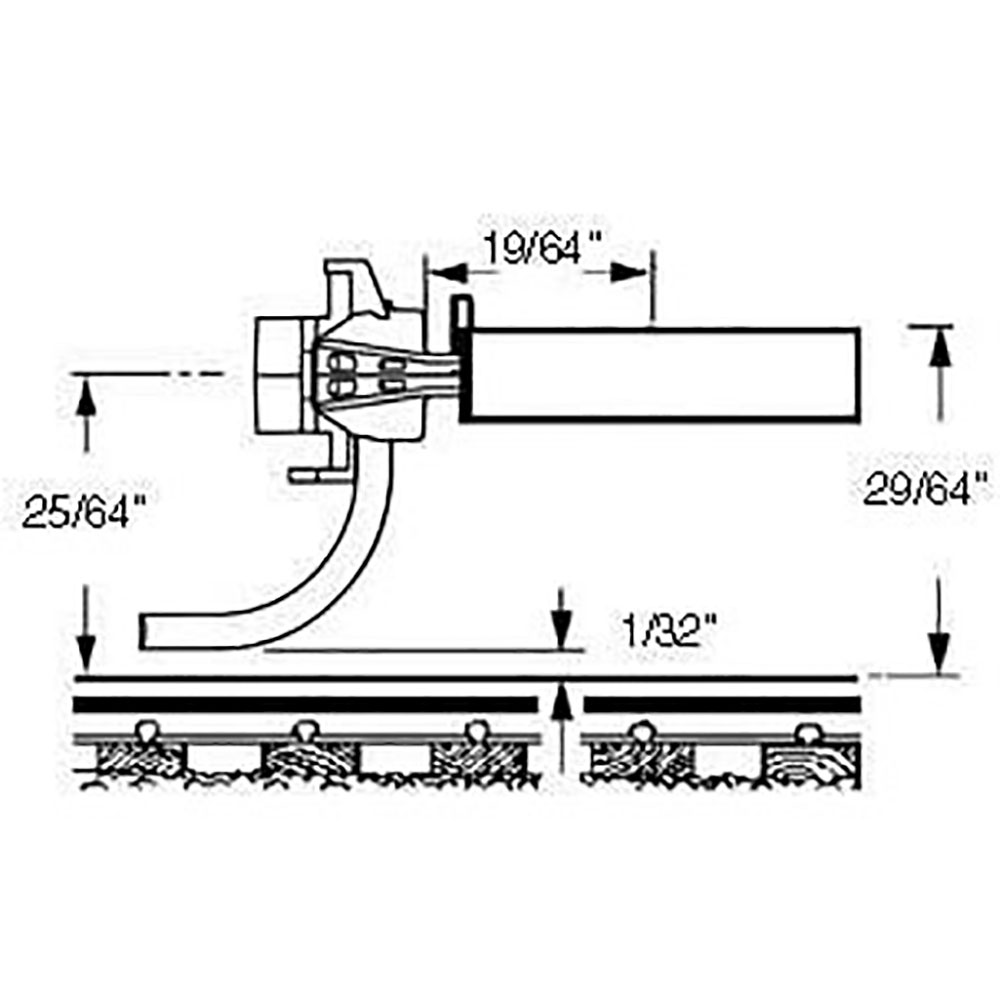

Mounting Specifications:

Mounting Height

 -   29/64"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. Screw length will vary.

Don’t forget these other helpful tools for your Kadee coupler installations:

#206 Insulated Muti-Purpose Coupler Height Gauge

#231 Greas-em Dry Graphite Lubricant

#237 Coupler Trip Pin Pliers

#240 Double Headed Pin Vise

#241 Dual Tool Manual Uncoupling Tool and Spring Pick

#246 Tap ‘2-56’ and Drills, #50 and #43

#780 Tap ‘0-80’ and Drills, #55 and #52
