Kadee HO #118 SF Shelf Whisker Metal Couplers Medium 9/32" Centerset Shank - 2 Pair

Description

Kadee HO #118 SF Shelf Whisker Metal Couplers Medium 9/32" Centerset Shank - 2 Pair

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated draft gear box.

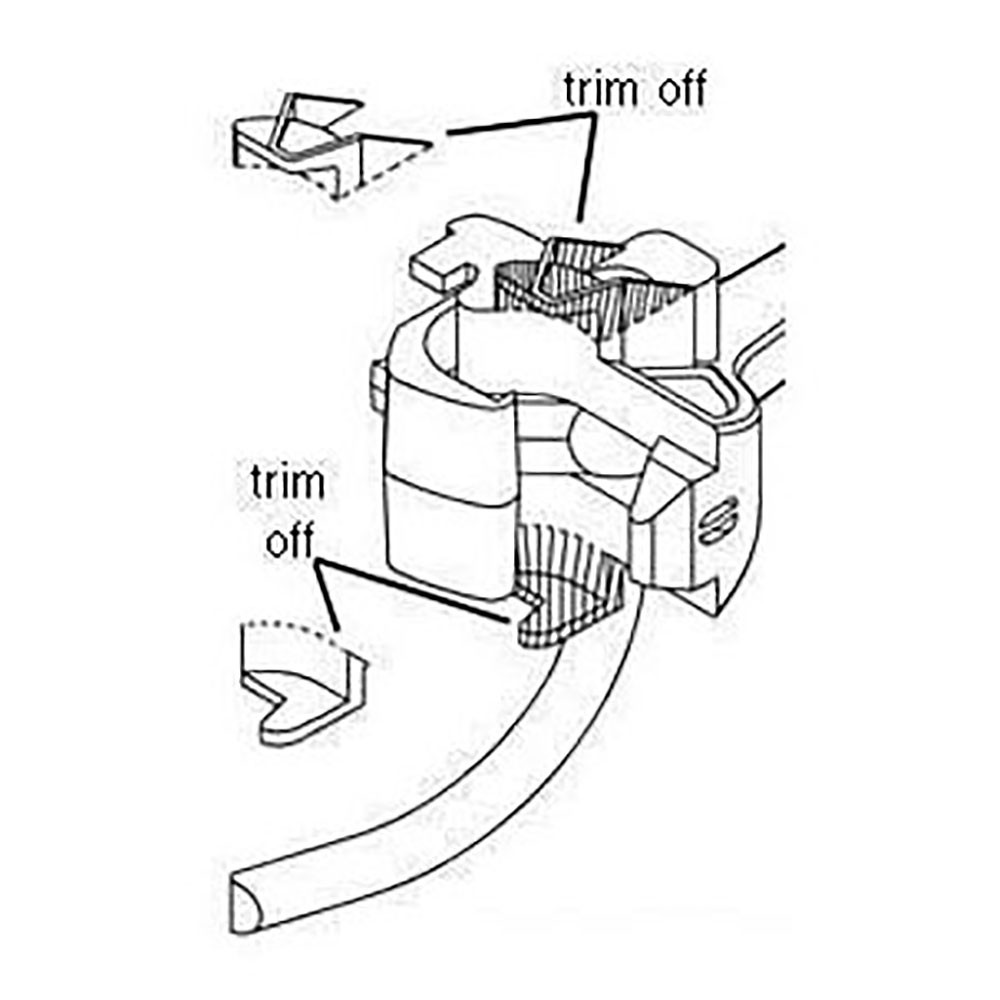

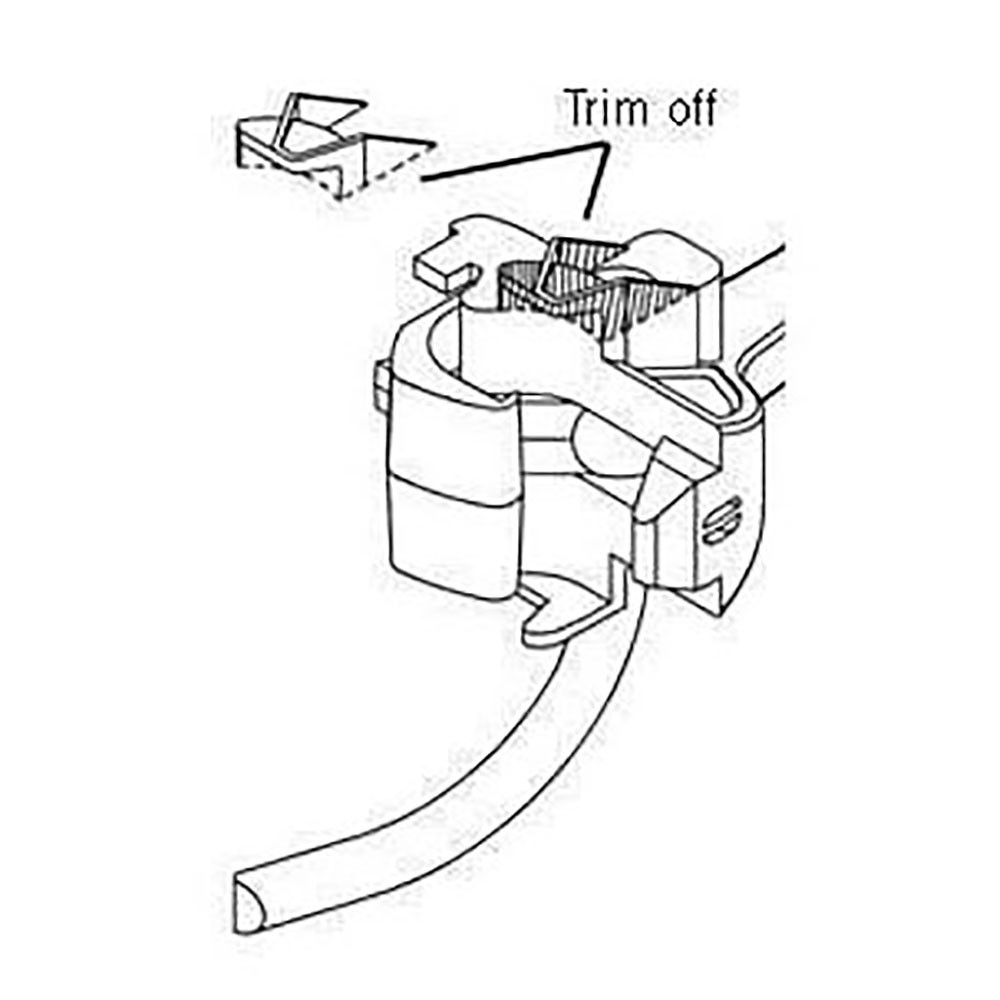

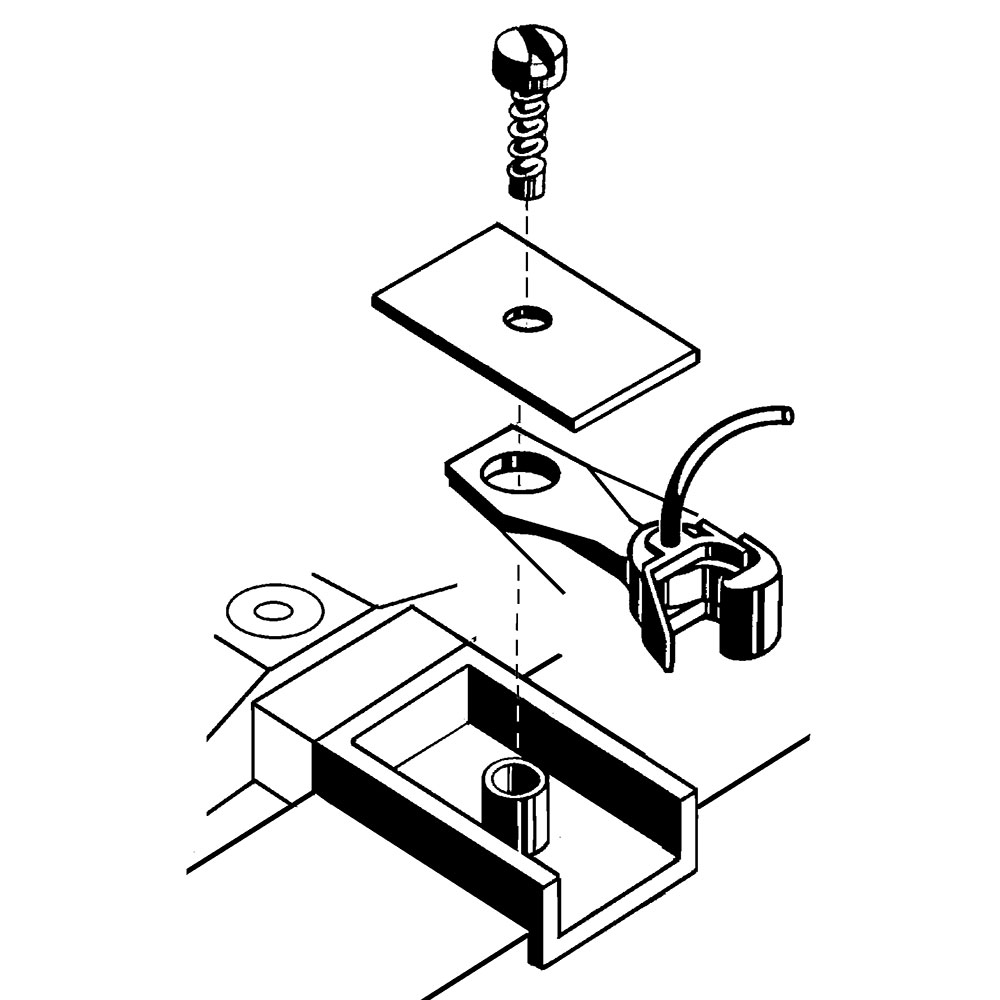

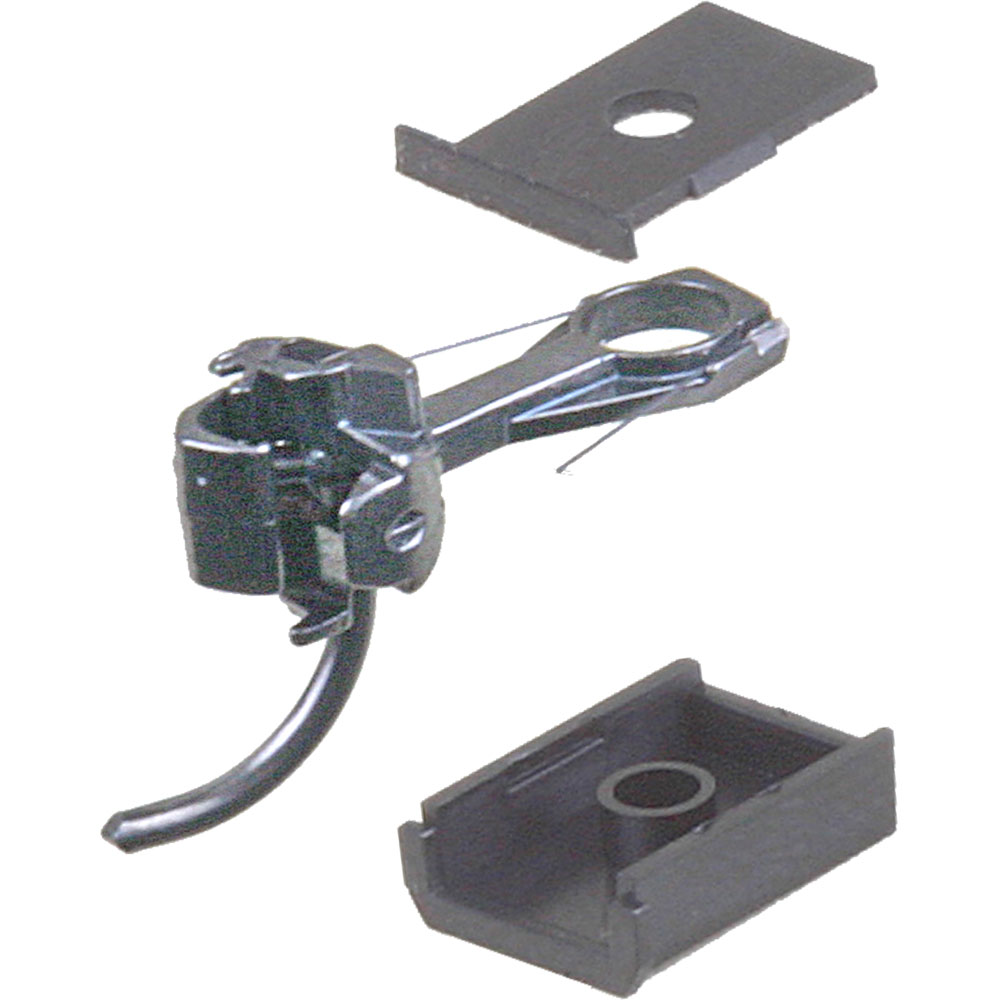

The #118 Kadee Magne-Matic Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #118 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets. Two pair per package Manual uncoupling requires the #241 Dual Tool. The ‘SF’ Shelf Coupler can be easily modified to look like the type 'F' Shelf Coupler or ‘H’ Passenger Car Coupler.

The #118 coupler will work anywhere a NO.5, #28, #38, #58, #118, #119 & #148 Coupler will work.

Package Includes:

(2) Pair SF Metal Shelf Whisker Magne-Matic Coupler - Medium Centerset Shank

(2) Pair #242 Snap-Together Gearboxes

(2) #622 Knuckle Springs

#118 Whisker Metal Coupler Features:

#242 Snap-Together Gearbox Features:

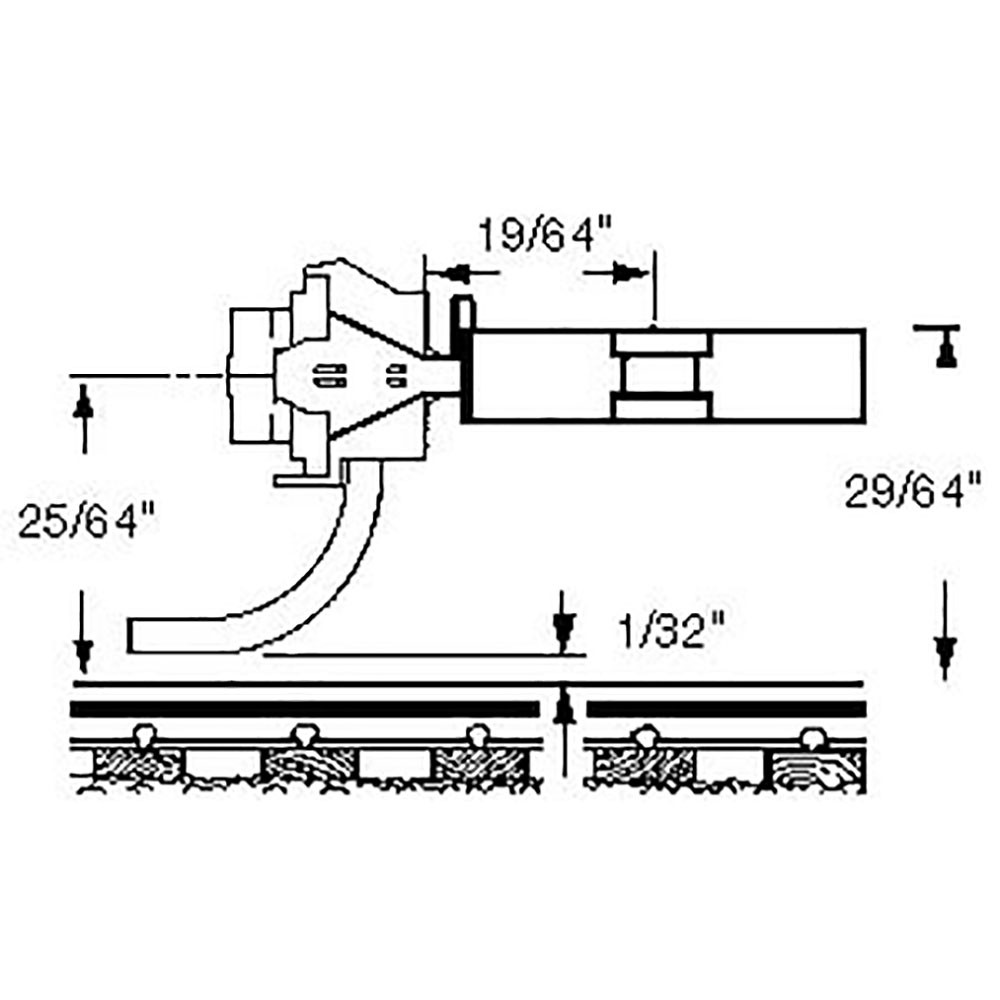

Mounting Specifications:

Don’t forget these other helpful tools for your Kadee coupler installations:

#206 Insulated Muti-Purpose Coupler Height Gauge

#231 Greas-em Dry Graphite Lubricant

#237 Coupler Trip Pin Pliers

#240 Double Headed Pin Vise

#241 Dual Tool Manual Uncoupling Tool and Spring Pick

#246 Tap ‘2-56’ and Drills, #50 and #43

#780 Tap ‘0-80’ and Drills, #55 and #52
