SoundTraxx

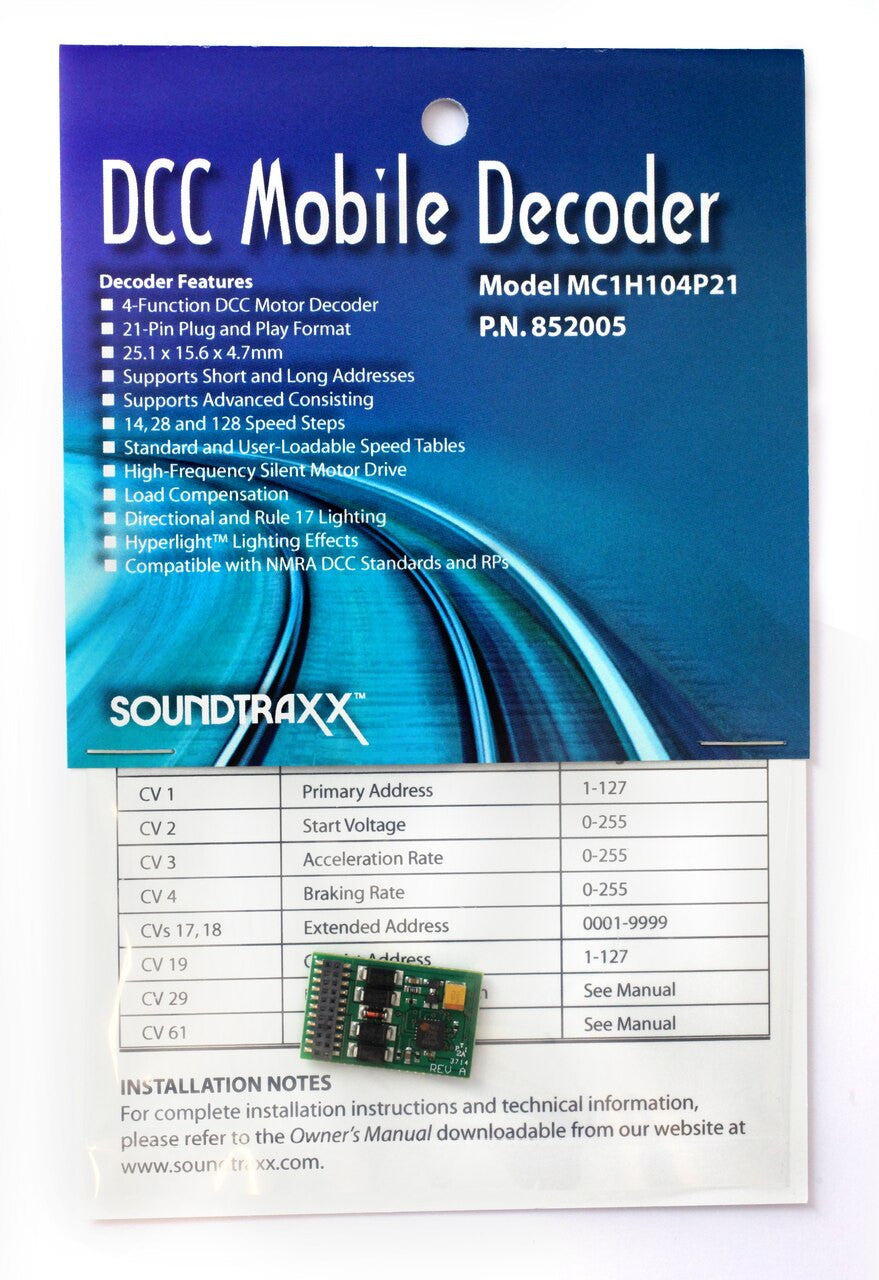

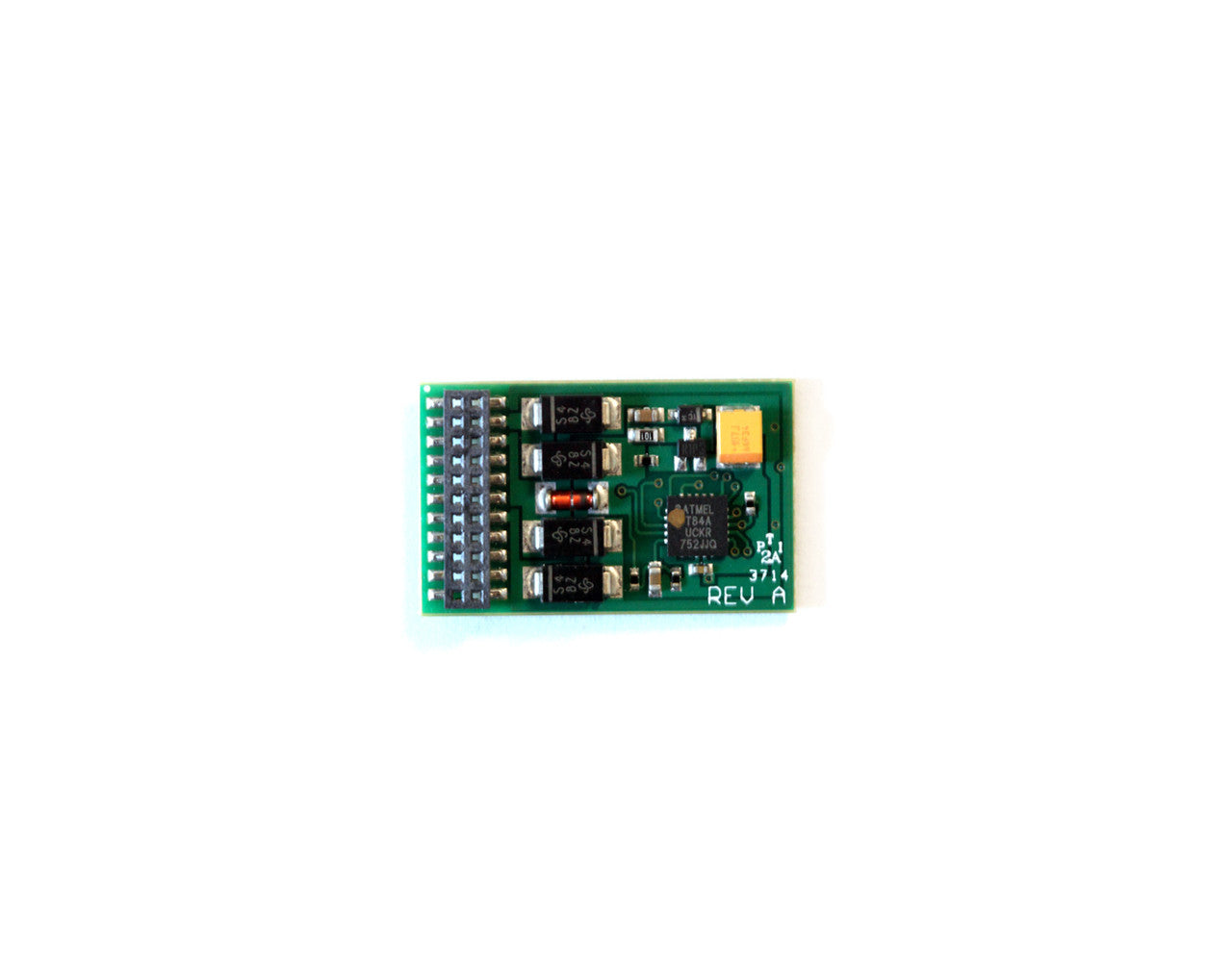

SoundTraxx 852005 MC1H104P21 DCC Mobile Decoder
Scale: HO
SKU: STX852005
SoundTraxx 852005 MC1H104P21 DCC Mobile Decoder
HO scale, 4-function, DCC Operation Only decoder. This decoder has a 21-pin connector arranged according to the NMRA Standard that easily plugs into the factory-installed PCB of many models.
- 4-Function DCC Motor Decoder
- 21 Pin Plug & Play Format
- Supports Short and Long Addresses
- Supports Advance Consisting
- 14, 28, 128 Speed Steps
- Standard and User Loadable Speed Tables
- High Frequency Silent Motor Drive
- Load Compensation
- HyperLight Lighting Effects
- Directional and Rule 17 Lighting
- Compatible with NMRA DCC Standards and RPs
Dimensions: 25.1 x 15.6 x 4.7mm
Max. Motor Stall Current of 1A
Max. Function Current of 100mA each output
4 Function Outputs
DCC Track Voltage - 21 Volts Maximum
