Kadee
Kadee HO #156-25 Bulk Pack #156 'Scale' Whisker Metal Couplers without Draft Gear boxes Long 25/64" Centerset Shank - 25 Pair
Stock: 7
Scale: HO
SKU: KAD15625
Kadee HO #156-25 Bulk Pack #156 'Scale' Whisker Metal Couplers without Draft Gear boxes Long 25/64" Centerset Shank - 25 Pair
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox.
The #156 ‘Scale’ Long Coupler will work anywhere a #26, #36, & #146 Coupler will work.

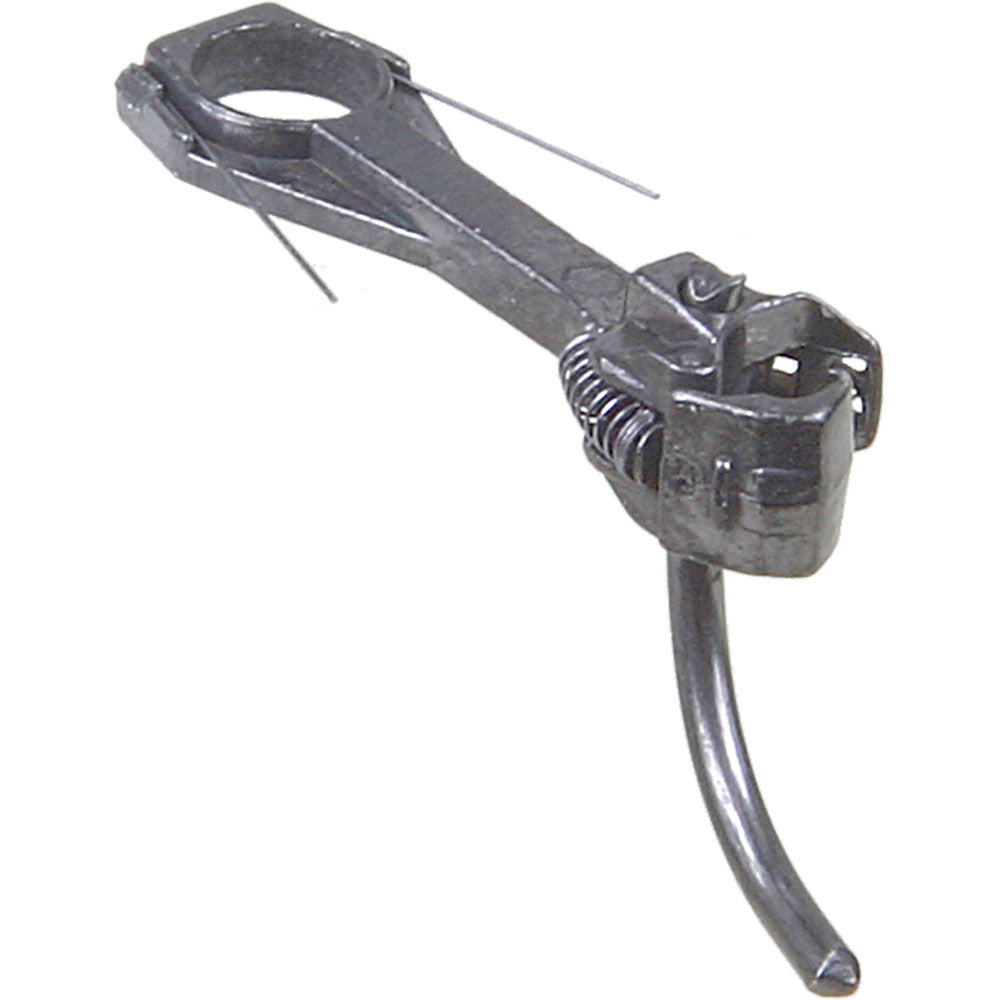

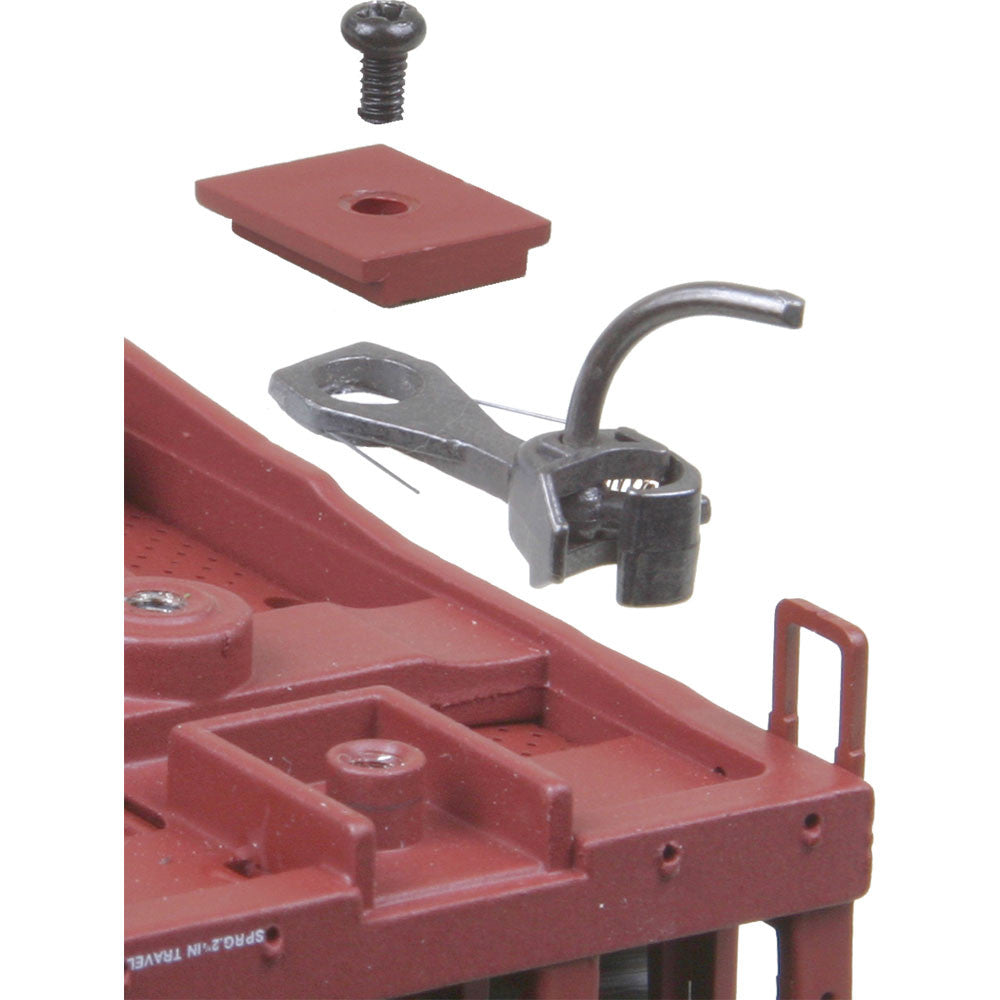

The #156 ‘Scale’ All Metal Self-Centering WHISKER Coupler features a ‘Scale’ Metal Coupler, a smaller head coupler which is more to scale and is patterned after the type 'E’ couplers, and Metal WHISKER Centering Spring. The #156 Coupler may be mounted in Manufacturers cast-on coupler pockets or any of our HO-Scale draft gear boxes except #233 30-series gear box. The coupler will couple and uncouple with other Kadee HO and HOn3 couplers. The coupler has the same shank length as the #26, 36 or 46 coupler which will allow the modeler to remove the existing #26, 36 or 46 coupler and replace with the new smaller coupler. The #156 coupler is made of the same metal as the #46 for strength and rigidity.

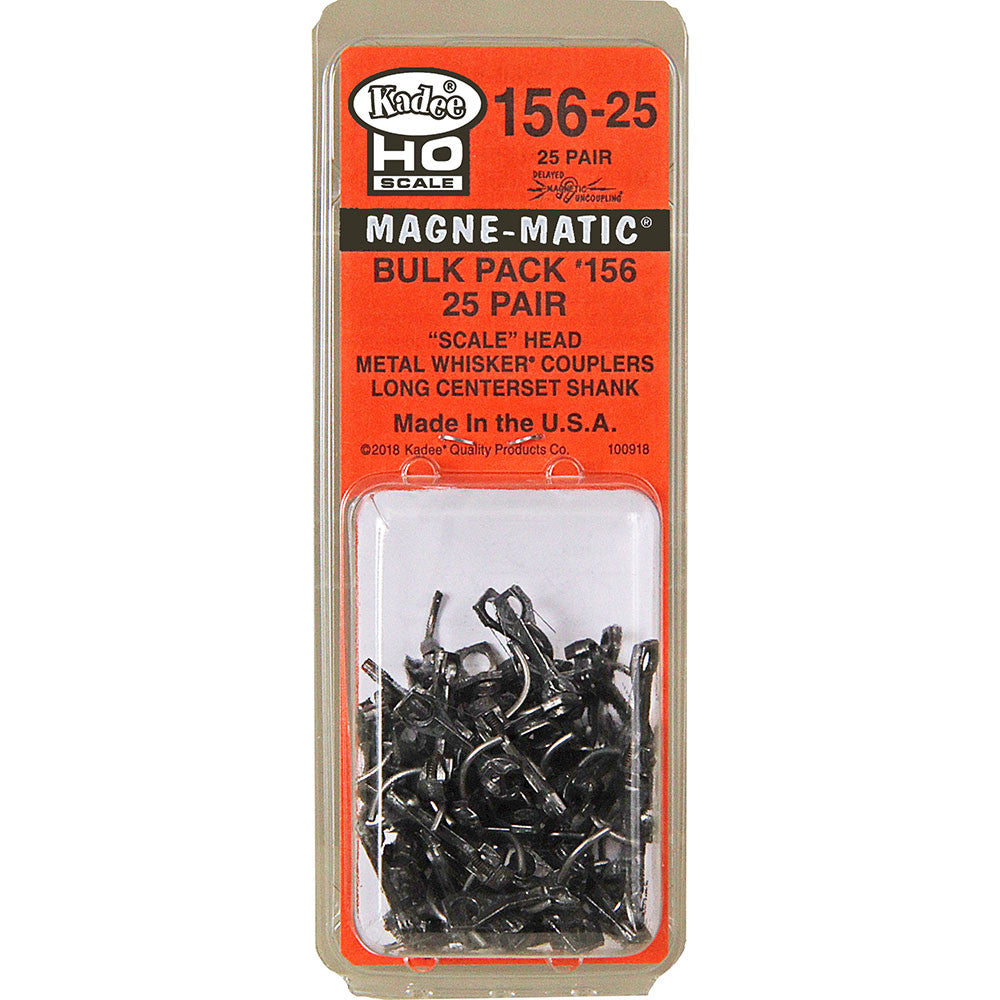

Package Includes:
25 - Pair #156 Scale Whisker Metal Couplers - Long Centerset Shank
Extra #625 Knuckle Springs
#156 Scale Whisker Metal Coupler Features:
| Material | - Metal |

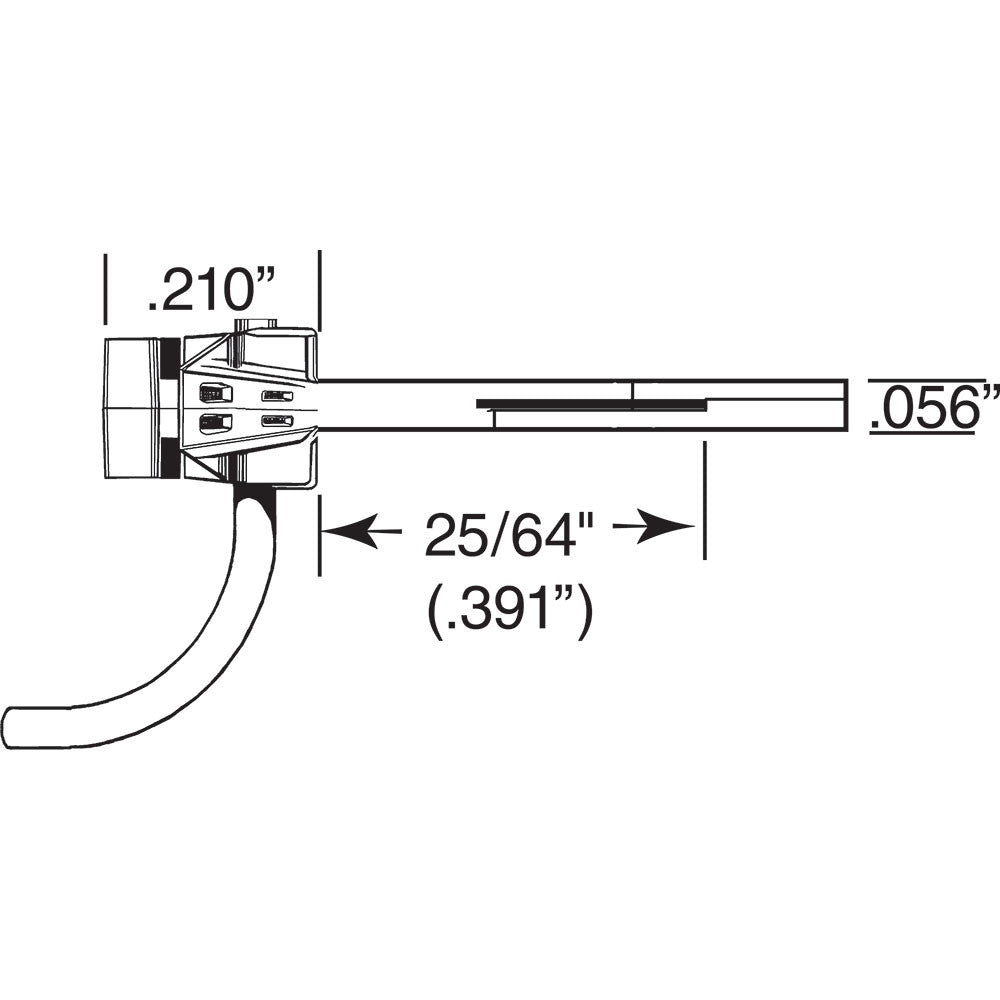

| Shank Length | - Long 25/64" center hole to back of coupler head |
| Coupler Offset | - Centerset |
| Knuckle Spring | - #625 |
| Centering System | - Whisker |
| Head | - ‘Scale’ Head |
| Works In Place of | - #26, #36 #146 in a #252 box, long centerset ‘clone’ couplers |
| Works With | - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
Mounting Specifications:
| Mounting Height | - 25/64" |
| Centerline | - 25/64" |
| Trip Pin Height | - 1/32" |
| Center Hole | - 2-56 Insulated Screws are the most commonly used. Screw length will vary. |
Don’t forget these other helpful tools for your Kadee coupler installations:
#206 Insulated Muti-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap ‘2-56’ and Drills, #50 and #43
#780 Tap ‘0-80’ and Drills, #55 and #52
Lombard Hobbies - Modelers Helping Modelers for Over 40 years!
