Kadee
Kadee HO #118 SF Shelf Whisker Metal Couplers Medium 9/32" Centerset Shank - 2 Pair
Stock: 17
Scale: HO
SKU: KAD118
Kadee HO #118 SF Shelf Whisker Metal Couplers Medium 9/32" Centerset Shank - 2 Pair
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated draft gear box.

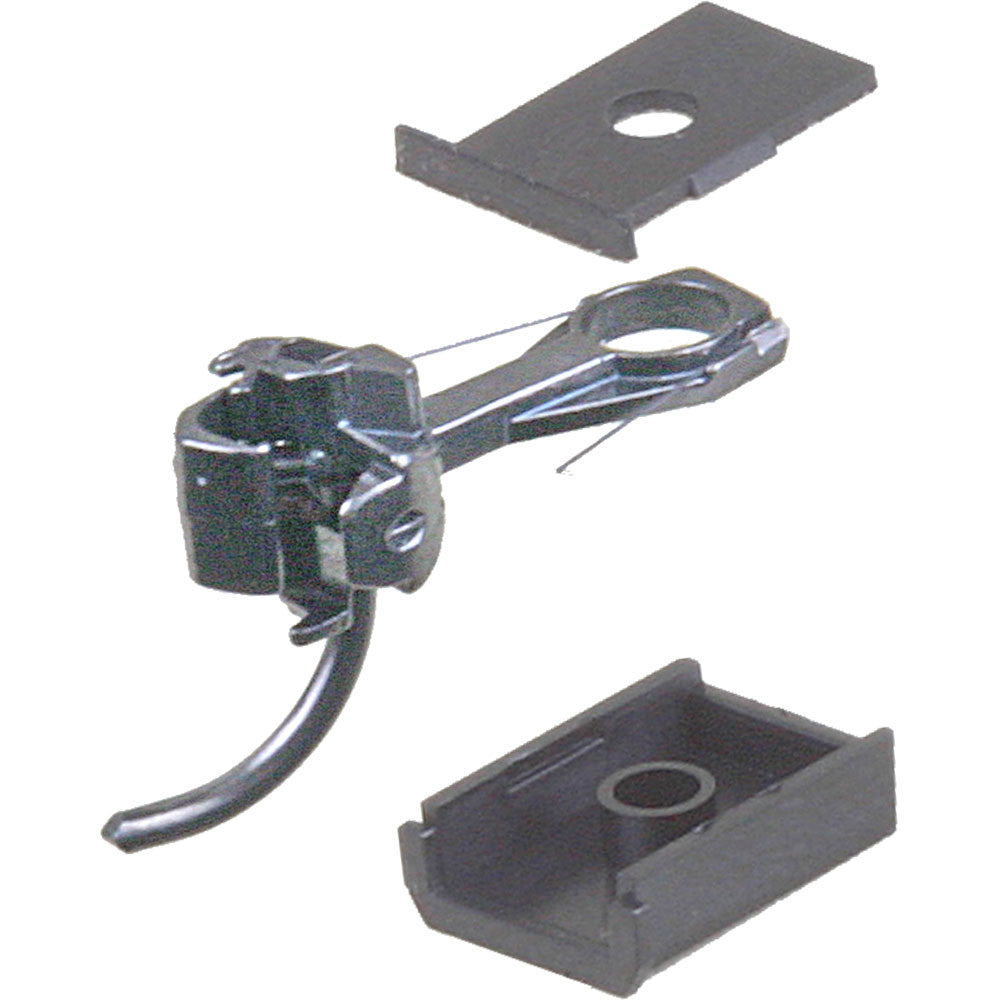

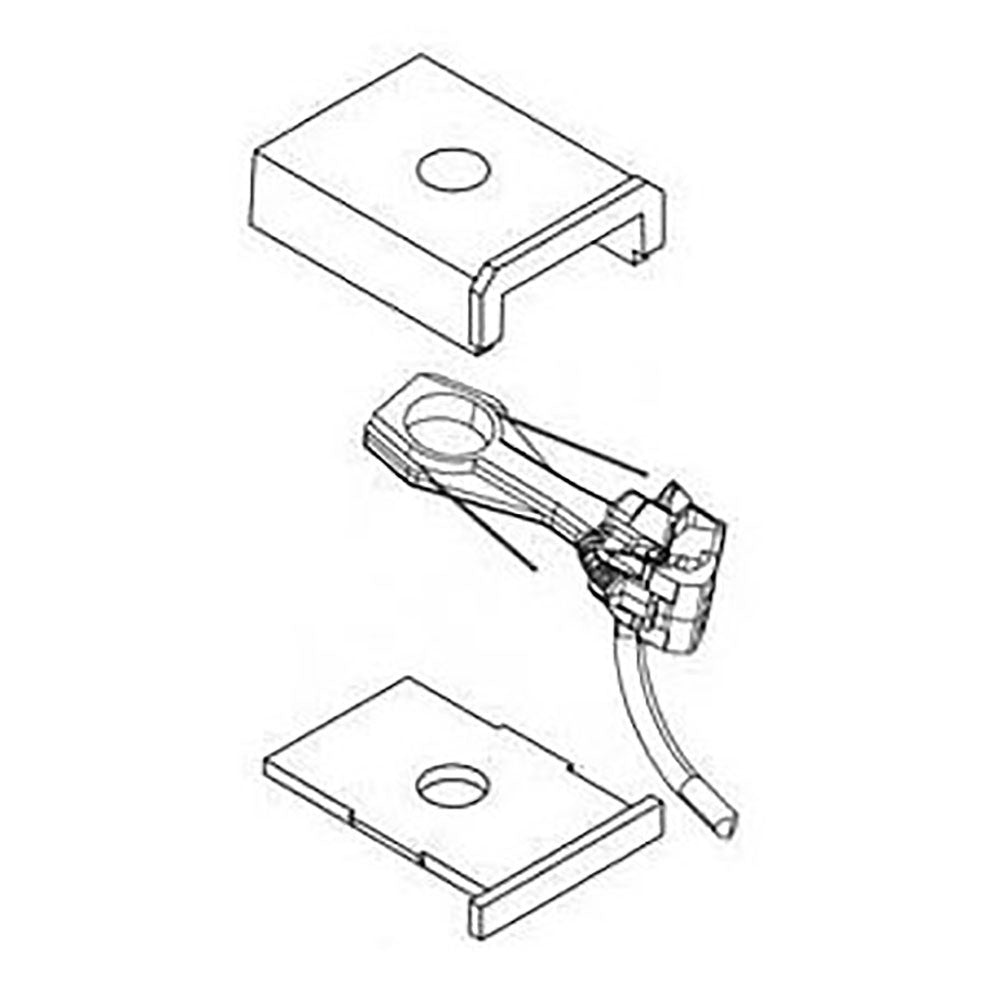

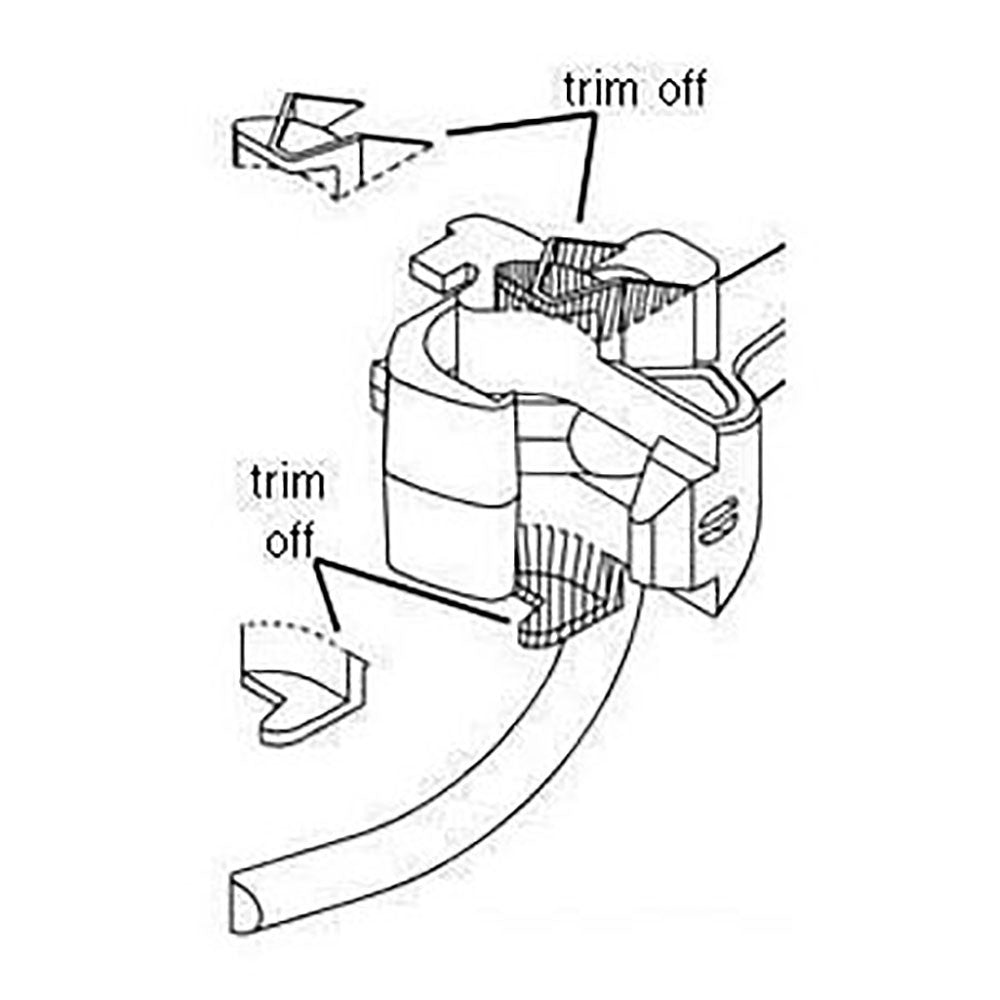

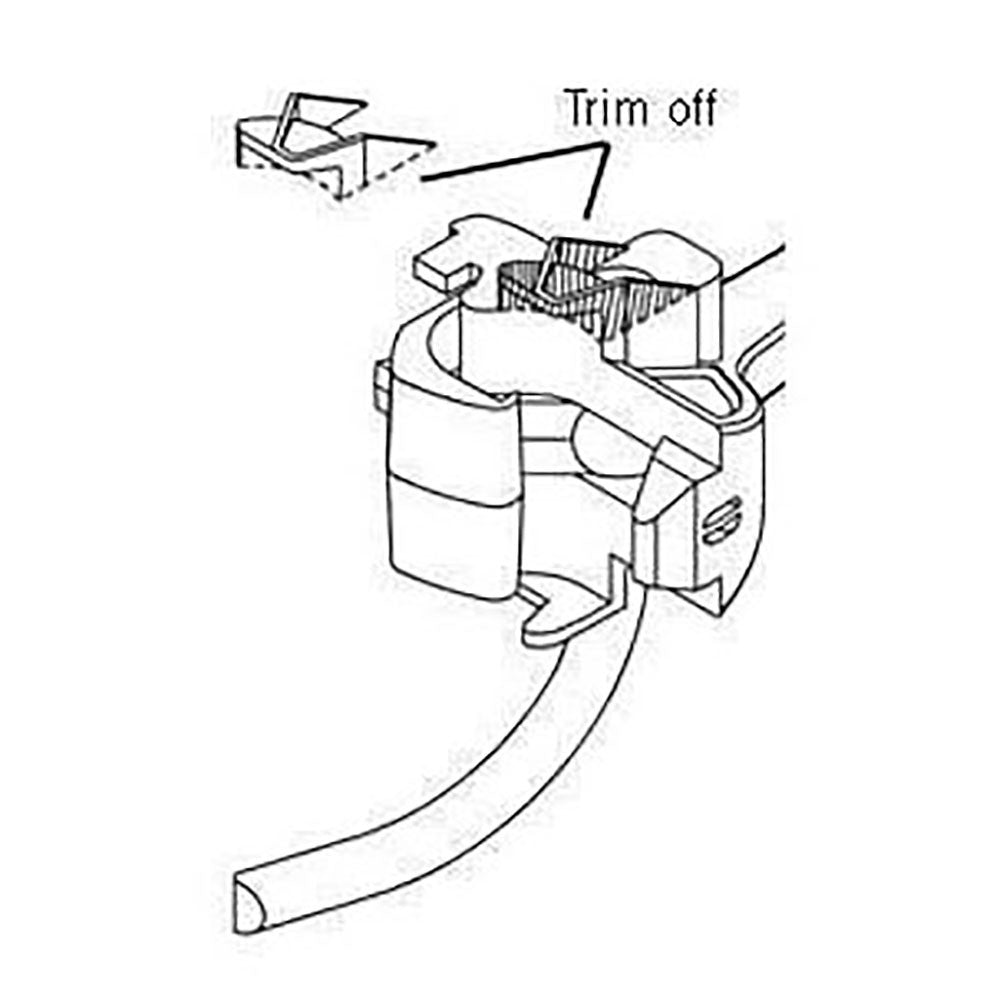

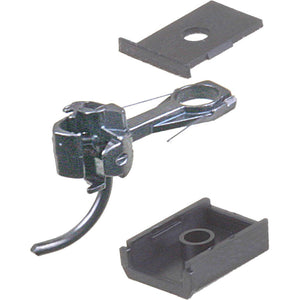

The #118 Kadee Magne-Matic Coupler features a Metal Coupler, insulated #242 Draft Gear Box and Lid with center screw holes for mounting. Shelfs actually work. The #118 Coupler may be mounted with supplied #242 draft gear box or with Manufacturers cast-on coupler pockets. Two pair per package Manual uncoupling requires the #241 Dual Tool. The ‘SF’ Shelf Coupler can be easily modified to look like the type 'F' Shelf Coupler or ‘H’ Passenger Car Coupler.
The #118 coupler will work anywhere a NO.5, #28, #38, #58, #118, #119 & #148 Coupler will work.
Package Includes:
(2) Pair SF Metal Shelf Whisker Magne-Matic Coupler - Medium Centerset Shank
(2) Pair #242 Snap-Together Gearboxes
(2) #622 Knuckle Springs
#118 Whisker Metal Coupler Features:
| Material | - Metal |

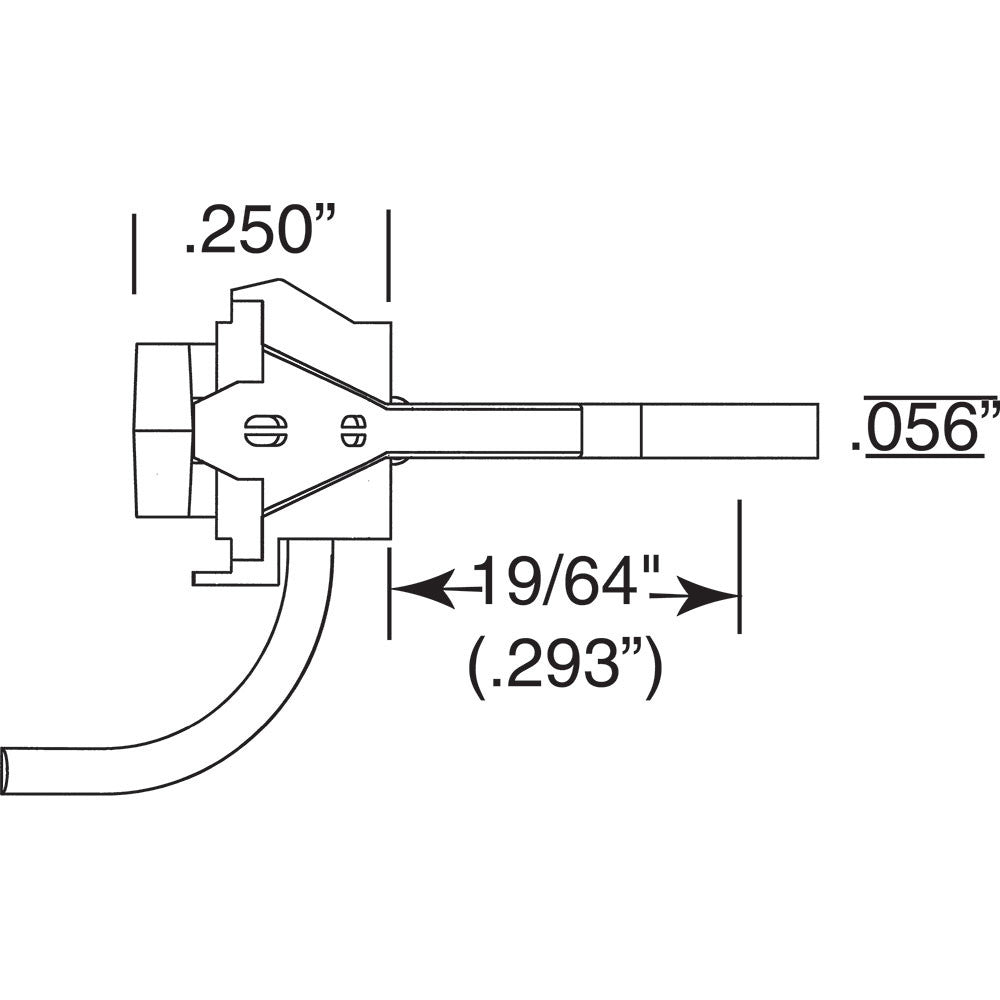

| Shank Length | - Medium 9/32" center hole to back of coupler head |
| Coupler Offset | - Centerset |
| Knuckle Spring | - #622 |
| Centering System | - Whisker |
| Head | - SF Metal Shelf Head |
| Works In Place of | - NO.5, #58, #28, #38, #148 in a #252 box, #118, #119, #158, medium centerset ‘clone’ couplers |
| Works With | - #213, #232, #234, #242, #252, #262, manufacturer cast-on draft gearboxes |
#242 Snap-Together Gearbox Features:
| Material | - Insulated Plastic |
| Lid Type | - Snap-Together |
| Dimensions | - 7/16"L x 5/16"W x 1/8"H |
| Works With | - NO.5, #58, 20-Series and 40-Series, All Whisker Couplers |

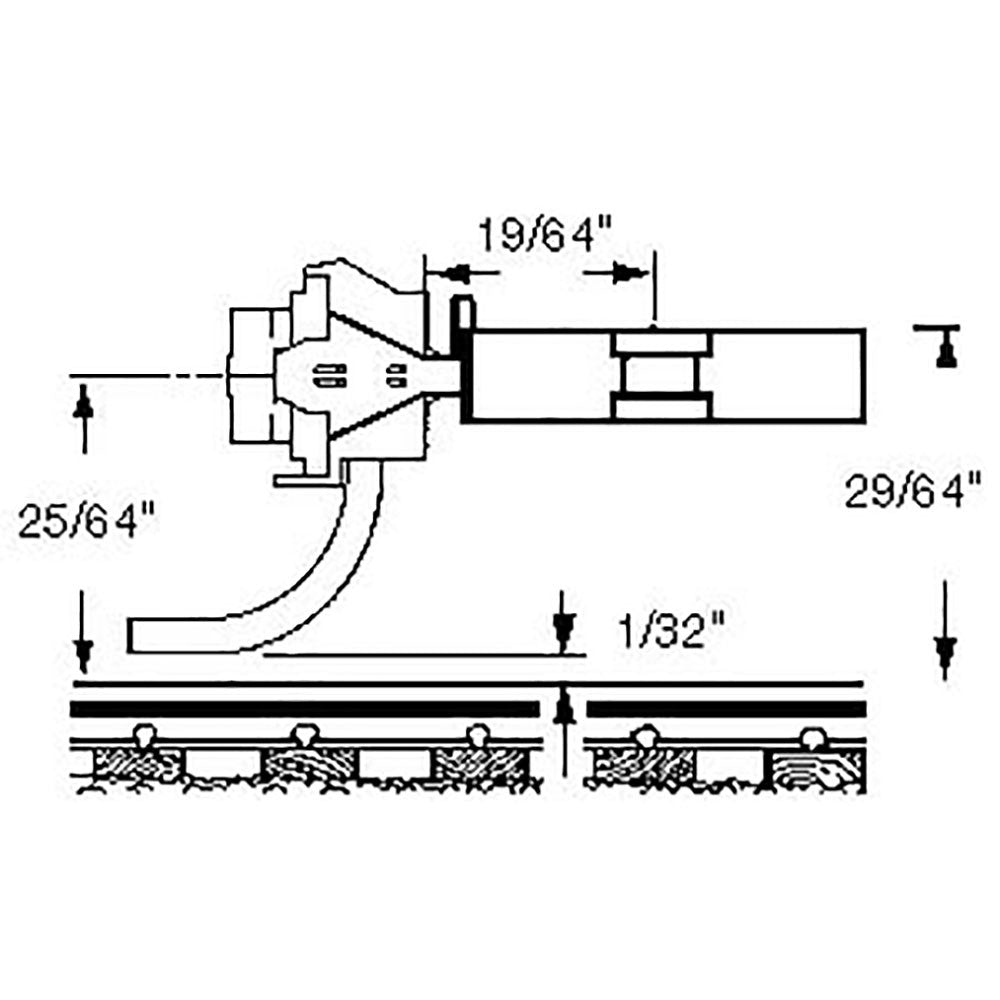

Mounting Specifications:
| Mounting Height | - 29/64" |
| Centerline | - 25/64" |
| Trip Pin Height | - 1/32" |

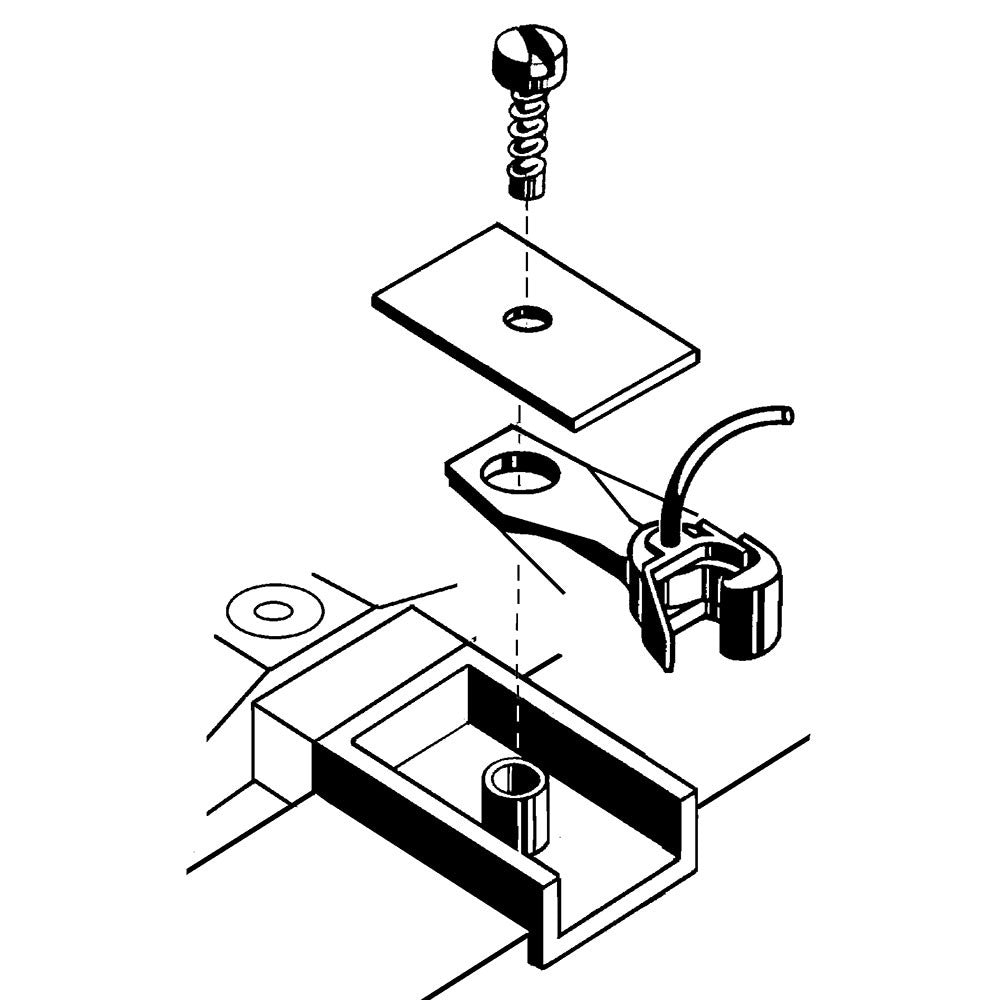

| Center Hole | - 2-56 Insulated Screws are the most commonly used. Screw length will vary. |
Don’t forget these other helpful tools for your Kadee coupler installations:
#206 Insulated Muti-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap ‘2-56’ and Drills, #50 and #43
#780 Tap ‘0-80’ and Drills, #55 and #52
