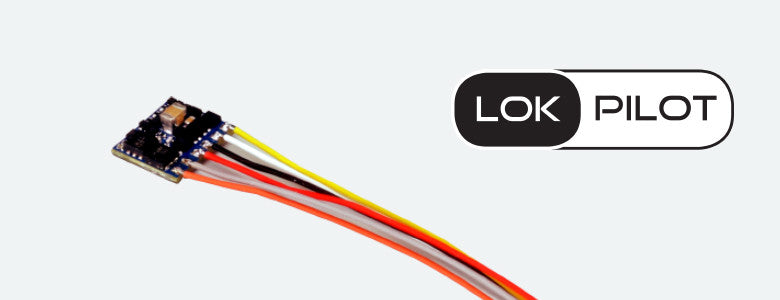

ESU DCC 59120 LokPilot 5 FX micro DCC 8-pin NEM652 Gauge N, TT

NEM652 8-Pin Interface

The LokPilot 5 Fx micro and its “twin” LokPilot 5 Fx micro DCC is an extremely small function decoder with a footprint of only 8.0mm x 7.0mm and a thickness of only 2.4mm (on the capacitor:2.9 mm). It is used in all vehicles of nominal sizes N to H0 that do not need a motor output, but should still be able to switch lighting effects. LokPilot 5 Fx micro decoders are always offered with an 8-pin interface.

Please note the LokPilot 5 DCC decoder does not come with a speaker.

Modes

The LokPilot 5 Fx DCC “only” speaks the DCC protocol, but can also do it automatically with RailComPlus on RailComPlus command stations.The LokPilot 5 Fx micro decoder recognizes the Märklin braking distances as well as the ZIMO HLU / ZACKCommands or the Lenz ABC system. Also braking with DCC brake modules or with DC voltage is possible. It also stops with a Selectrix brake diode. An ABC automatic shuttle train enables automatic commuting between two train stations. This is also with a function decoder is important in order to be able to synchronize control cars and motor vehicles. The LokPilot 5 Fx decoder can be used on analog DC railways. The decoder switches between the operating modes fully automatically "on-the-fly".

Features

The LokPilot 5 Fx micro or LokPilot 5 Fx micro DCC has been equipped with an astonishing number of function outputs. There are 6 amplified function outputs with 180mA output current each and two logic level outputs for servos or Susi. The brightness of each output can be adjusted separately.

Operational safety

If required, a PowerPack can be connected to the LokPilot 5 Fx micro and LokPilot 5 Fx micro DCC to bridge dirty rail sections.

Protection

Of course, the outputs are protected against overload. We want you to enjoy your decoder for as long as possible.
