Atlas N
BLMA N, Detail Parts-EMD Pilot Face Layovers
Scale: N
SKU: BLMA105
BLMA N, Detail Parts-EMD Pilot Face Layovers
EMD Pilot Face Layovers
Prototype History:
A majority of EMD's mid-series locomotives (GP30-60 & SD40-70+) use a very standard looking pilot. Because these pilots feature numerous details that require drilling, we've designed a simple layover for EMD pilots that will drastically cut down your modeling time and serve as a drill template for our Cut Levers & MU Hoses.

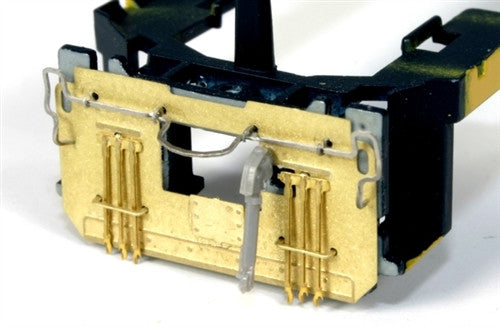

Note that the photo illustrates the mounted layover with our #13 Cut Lever installed. All mounting holes are etched through on the part, allowing the modeler to simply drill through the holes.
NOTES:
- There are an extreme number of pilot variations (including rivet and kick plate detail); this set was designed to incorporate some of the most common designs.
