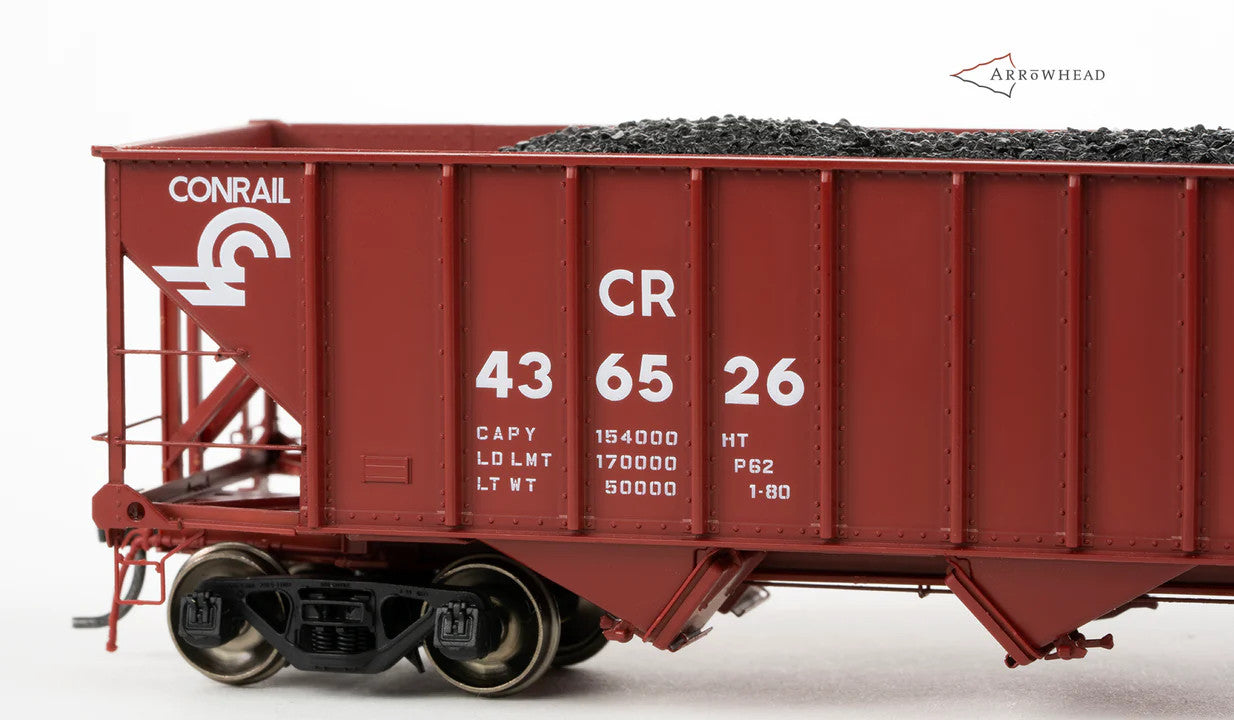

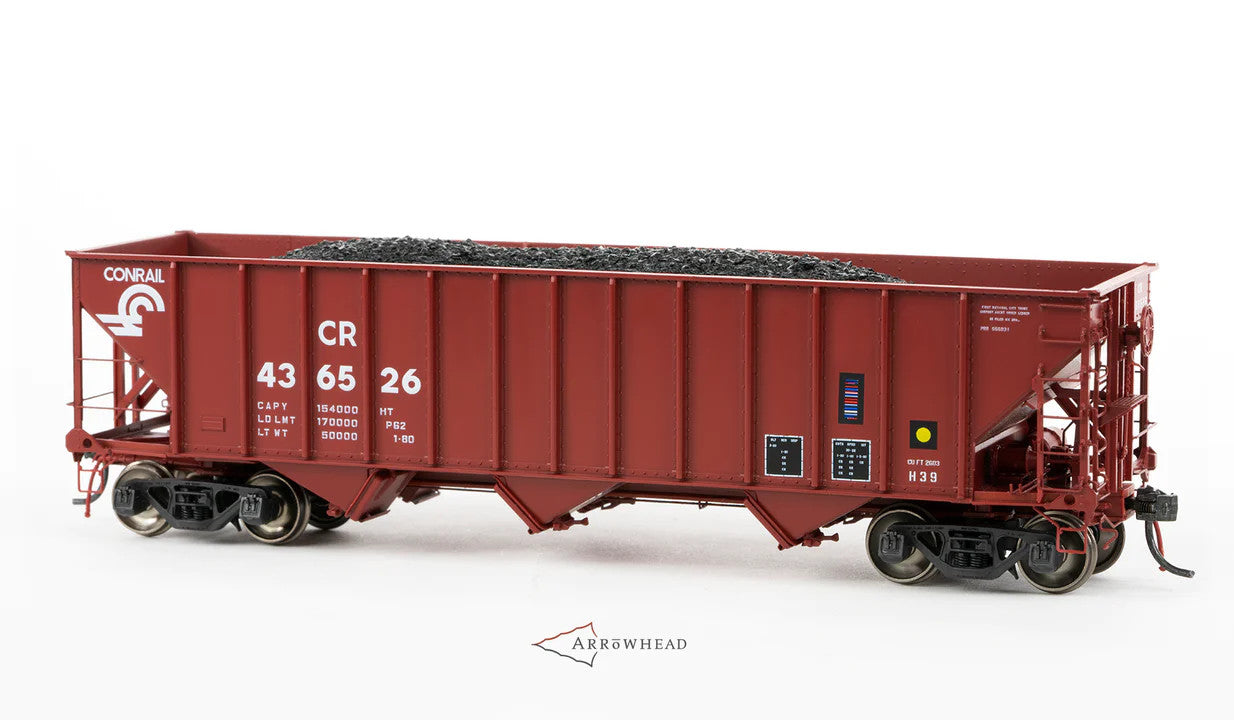

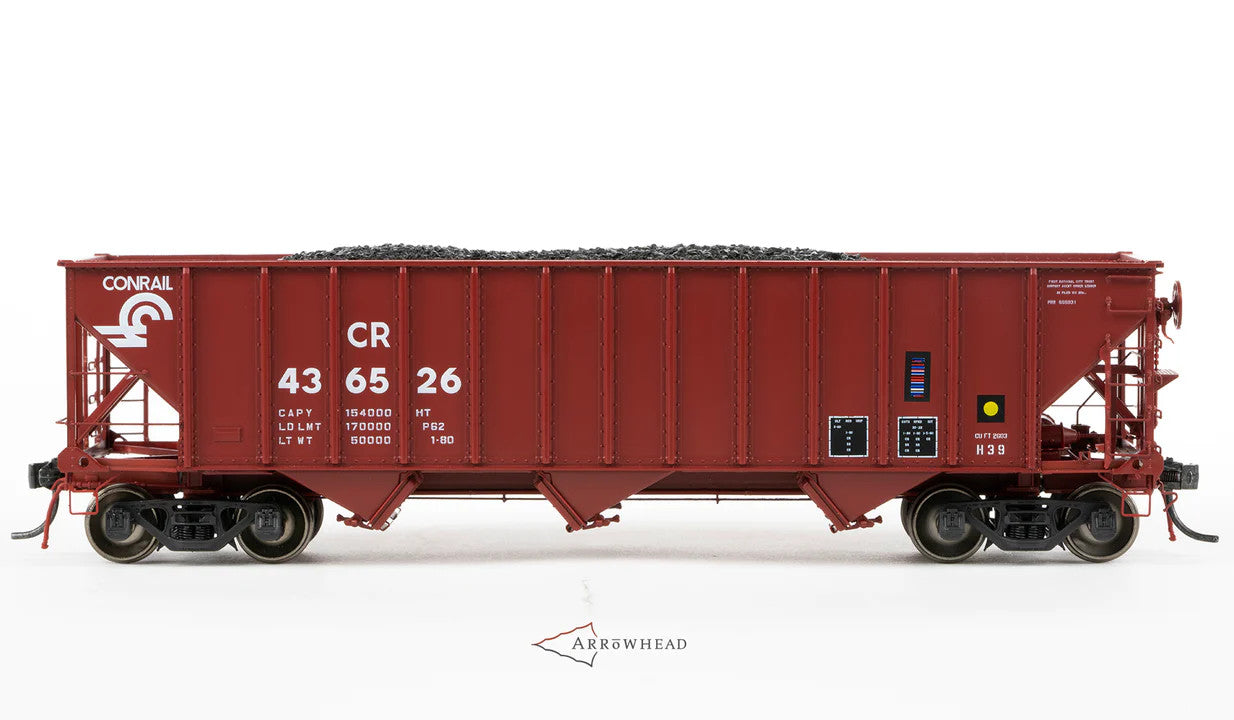

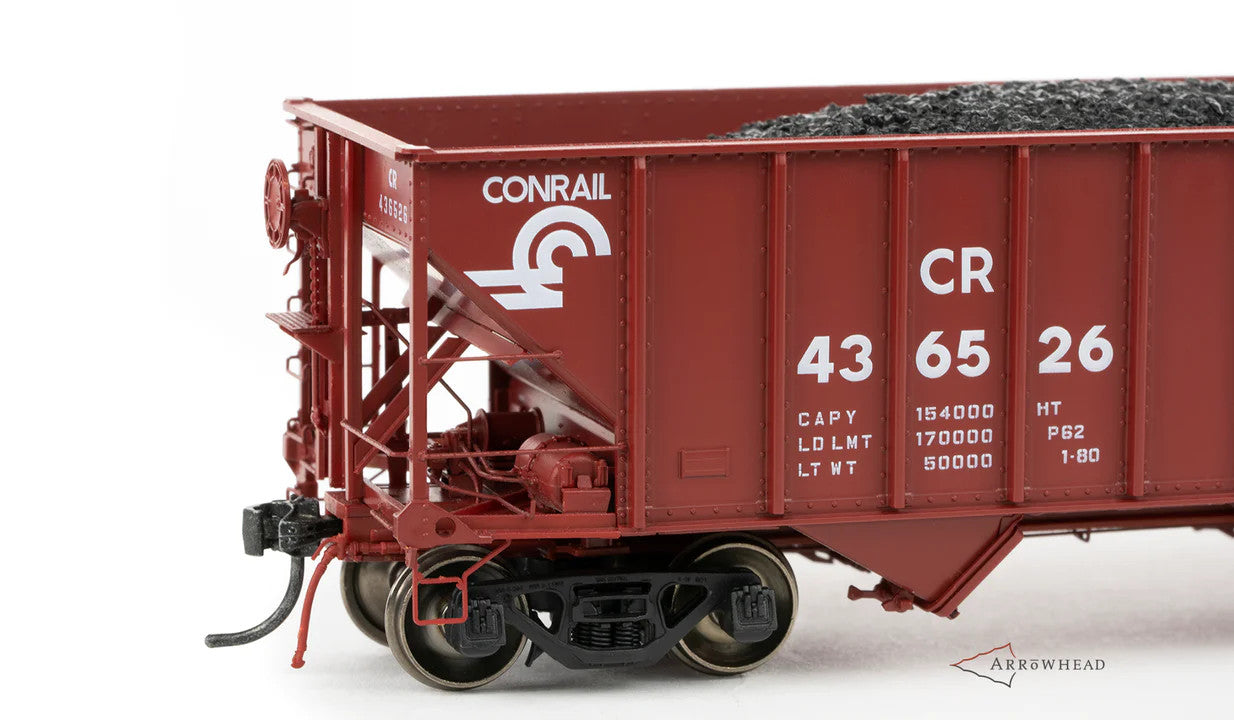

Arrowhead HO 1016-4 Conrail Hollidaysburg 1-80 Committee Design Hopper CR #436526

Arrowhead HO 1016-4 Conrail Hollidaysburg 1-80 Committee Design Hopper CR #436526

The most numerous Conrail Hopper through the first decade and highly relevant into the 1990s.

About the Model:

The design of every part of this model is driven by dimensional data. There is no part where the designer looked at a photograph and 'eye-balled' it. No part of the design is scaled from a photograph. There is no guess work and no derived measurements. We had fabrication prints; we had the actual parts in hand, or we meticulously field measured it.

That’s right: everything down to the correct styles of defect card holders are accurately matched.

We are unique in that we don't use contract designers domestically or abroad. The individual who leads the research for Arrowhead Models is also the individual who sits behind the computer and does the design. This means that there are no translation errors in the process. There is no gap between the massive research effort and the thousands of design decisions. Because the researcher is the designer, he knows how to research so to no lay compromises in the design path. Because the designer is the researcher, hundreds of research hours hone his eye for the design.

Additional Features:

• 70 individual injection molded parts per car, including: multi-part Keystone Monoloc hopper door locks, Keystone hopper frames and gate doors, 4 piece Miner 1942 hand brakes, and check out the release lever.
• 10 individual etched brass parts per car, including: gate door L-braces, ABD valve and brake cylinder mounts.
• 49 individual wire parts per car, including: air lines, release and retaining valve rods, grab irons, train lines, brake lever hangers and more.
• 70-ton ASF Ride Control Solid Bearing Trucks, including: the only 21 piece truck. We traveled over 1800 miles to ensure that our trucks didn’t just match the print specifications in 2D–but, our interpretation of that data matches the curf, the draft, the filets and patterned parts of complex sand casting. We spent 3 days adjacent to the prototype doing the actual design on site. No one does product development like Arrowhead. Brake beams to be installed by the modeler; Patents pending.
• The Definitive HO Scale Wheelset: In 2018, Arrowhead launched the industry leading wheelset from which a wave of followers have trailed. Design of Arrowhead's Definitive HO Scale Wheelset follows our brand's unique investment into informed development--including a site visit to the production facilities of the prototype in Kansas City, KS.
• Additionally, Arrowhead Models is the only brand to offer scale tread wheelsets on all cars. No additional dollars on aftermarket upgrades are needed here. We ask more manufacturers to get on board with this standard so that industry can move forward from precedents established in the 1960s.

About the Paint Scheme:

Arrowhead Models is offering the Conrail Committee Design hopper in 12 road numbers and 3 unique paint schemes–all of which are a subtle variation of the standard diagram: red cars with standard reporting marks, road numbers and CR emblem. The difference between these schemes is that they have different Hollidaysburg shop locations, dates and small variations in the COTS, ACI and capacity data.

Conrail's Committee Design cars are of Pennsylvania Railroad heritage, and each car bears the correct PRR road number near the trust stencil per the Penn Central’s practice of documenting original ownership.

We didn't rest on those laurels, we artwork is extensively researched--and quite possibly, the most in depth in the industry. We compared data against our own field notes of extant Conrail Committee Design cars, Yes, they still exist!). This is not a manufacturer's quick take, we worked with the Conrail Historical Society and procured our own photographs and data of CR cars over a period of 5 years.

About the Prototype:

The Committee Design hopper is one of the all-time, most important open hoppers on the Conrail railroad. Conrail rostered so many Committee Design cars that the railroad initially abandoned its early attempts to standardize around 100 ton conveyances. In 1986, the Committee Design hopper was still the most numerous coal hopper by class on Conrail's roster. In 1990, CR had 4,900 Committee Design hoppers, and although it was no longer the most numerous, it was still among the most significant car classes. By 2000, Conrail Committee design cars began to dwindle in number, Conrail Committee Design cars remained on roster into the new millennium.

History:

The Committee Design car was developed as a joint effort between the Pennsylvania, Norfolk & Western and Chesapeake and Ohio railroads. Production was between July of 1958 and September of 1962. Although it happened to be the case that all three of these railroads owned a version of the Committee Design car, it was the characterizing car of the Pennsylvania Railroad roster.

Across 15 lots and 5 builders, the PRR rostered 16,160 hoppers. These cars passed through Penn Central in massive quantities–such that: when Penn Central became Conrail in 1976, 15,087 Committee Design cars went into Conrail ownership. If you model the railroads of the Northeast from 1958 through the 1980s, the Committee Design Hopper isn’t an important hopper car–it is THE important hopper car.
