Nixtrainz NTZ2 HO Decoder Buddy Mini Motherboard 1 per Pack
Nixtrainz NTZ2 HO Decoder Buddy Mini Motherboard 1 per Pack

Nixtrainz NTZ2 HO Decoder Buddy Mini Motherboard 1 per Pack

(2 reviews) Write a Review
$14.00 $11.49
You save $2.51
In Stock:
4
Scale:
HO
SKU:
NTZRed

Description

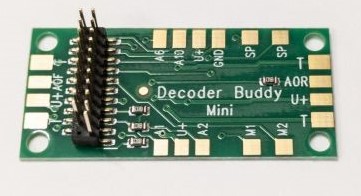

Nixtrainz HO Decoder Buddy Mini Motherboard 1 per Pack

The Decoder Buddy Mini was developed to fit into smaller steam and diesel applications.

  • This mother board does not include the 21 Pin Decoder
  • This mother board requires soldering
  • These printed circuit board is  NOT INTENDED FOR USE IN A DC SYSTEM

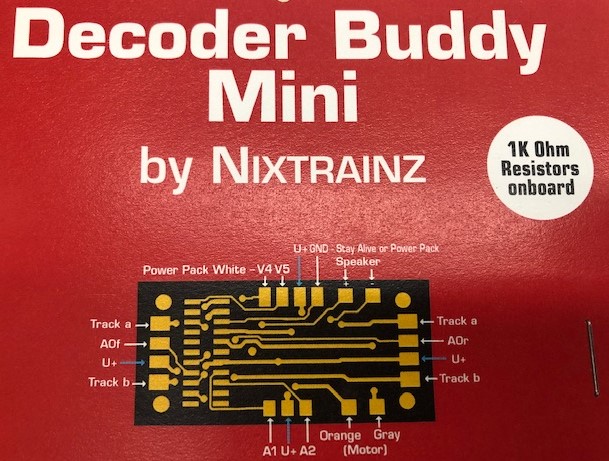

The mother board includes;

  • One 21 Pin Decoder receptacle
  • Two pairs of track input pads
  • One pair of motor input pads
  • One set of stay alive pads
  • One pair of speaker pads
  • Four lighting outputs

Dimensions

Width x Length x Height

O.65 inches  x  1.35 inches   x   0.35 inches

17 mm x 35 mm x 9 mm

  Lombard Hobbies - Your Valued Hobby Shop for over 40 years!





2 Reviews Hide Reviews Show Reviews

  • Great Product for Older Locomotives
    5

    Posted by JAS on Mar 19th 2024

    I have used these and the original Decoder Buddy for a number of installation. The Mini fits in a number of areas where the regular one is too big. The Mini is easier to install lighting with its larger solder pads. The only drawback is the number of functions it supports, but it woks very well in many models. Beats having a mass of wires!

  • nixtrainz decoder buddy mini
    5

    Posted by dkinsman442@gmail.com on Jul 26th 2022

    All of Nixtrains decoder buddies are awesome! The mini is great for smaller spaces where the regular size decoder buddy just won't fit. Has onboard resistors for leds for some of the functions.
