Kadee HO HOn3 #636 Centering Spring for Split Shank Couplers - 1 Dozen
- In Stock:
- 14
- Scale:
- HO
- SKU:
- KAD636
- Availability:
- Y
Description

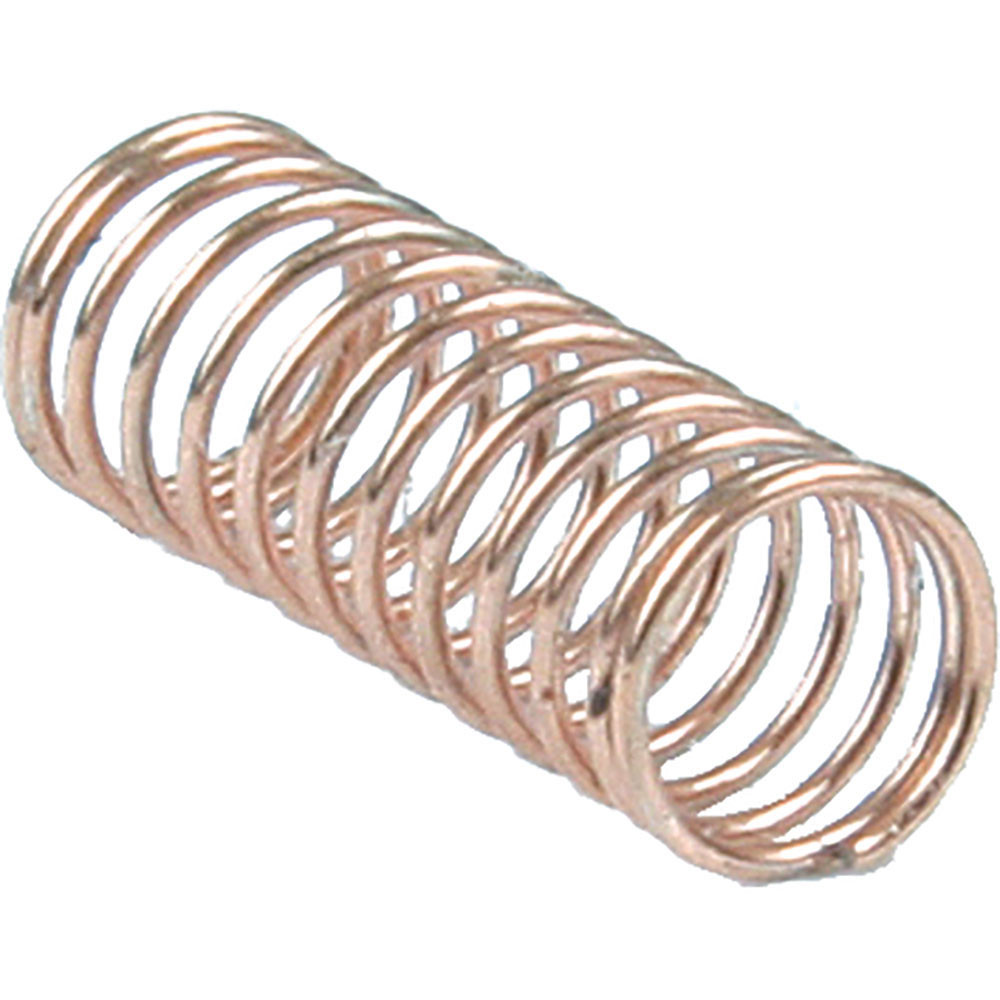

Kadee HO HOn3 #636 Centering Spring for Split Shank Couplers - 1 Dozen
Precision Engineered Coil Metal Centering Springs for #711, #712 3/4 size HO-Scale and #714, #715 HOn3-Scale Split Shank Couplers.
Package Includes:
(1) Dozen #636 Coil Metal Centering Springs
#636 Spring Specifications:
|
Part Number catalog |
- 636 |
|
Outside Diameter |
- 0.052 |
|
Inside Diameter |
- 0.046 |
|
Wire Diameter |
- 0.003 |
|
Pitch |
- 0.008 |
|
Total Coils |
- 15.0 |
|
Free Length |
- 0.128 |
|
Solid Height |
- 0.045 |
|
Load Solid Height |
- 2.0 |
|
Closed Coils |
- ¾ |
|
Material |
- PB |
Don’t forget these other helpful tools for your Kadee coupler installations:
#206 Insulated Muti-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap ‘2-56’ and Drills, #50 and #43
#780 Tap ‘0-80’ and Drills, #55 and #52
Lombard Hobbies - Modelers Helping Modelers for Over 40 years!
