Kadee
Kadee HO #625 Knuckle Spring for Scale Head Couplers - 1 Dozen
- In Stock:
- 11
- Scale:
- HO
- SKU:
- KAD625
- Availability:
- Y
Description

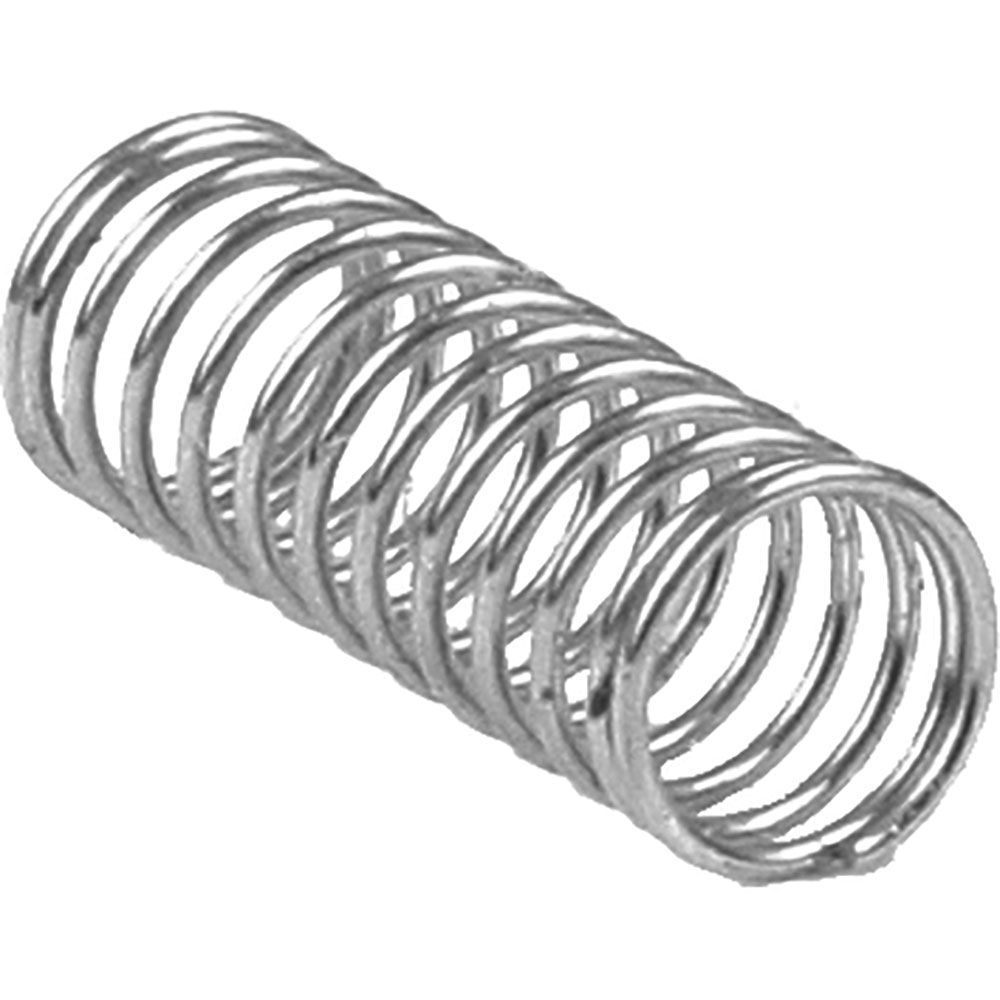

Kadee HO #625 Knuckle Spring for Scale Head Couplers - 1 Dozen
HO-Scale Knuckle Springs For use with all Scale Head Couplers #58, #78, #119, #150-Series, #178 & #2100
Package Includes:
(1) Dozen #625 Knuckle Springs
#625 Spring Specifications:
|
Part Number catalogue |
- 625 |
|
Outside Diameter |
- 0.054 |
|
Inside Diameter |
- 0.046 |
|
Wire Diameter |
- 0.004 |
|
Pitch |
- 0.012 |
|
Total Coils |
- 10.0 |
|
Free Length |
- 0.133 |
|
Solid Height |
- 0.040 |
|
Load, Solid Height |
- 5.0 |
|
Closed Coils |
- ¾ |
|
Material |
- PB |
Don’t forget these other helpful tools for your Kadee coupler installations:
#206 Insulated Muti-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap ‘2-56’ and Drills, #50 and #43
#780 Tap ‘0-80’ and Drills, #55 and #52
Lombard Hobbies - Modelers Helping Modelers for Over 40 years!
