Kadee HO #25 Plastic Couplers with Draft Gear boxes Short 1/4" Overset Shank - 2 Pair

(No reviews yet) Write a Review
$5.99 $5.09
You save $0.90
In Stock:
7
Scale:
HO
SKU:
KAD25
Availability:
Y

Description

Kadee HO #25 Plastic Couplers with Draft Gear boxes Short 1/4" Overset Shank - 2 Pair

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

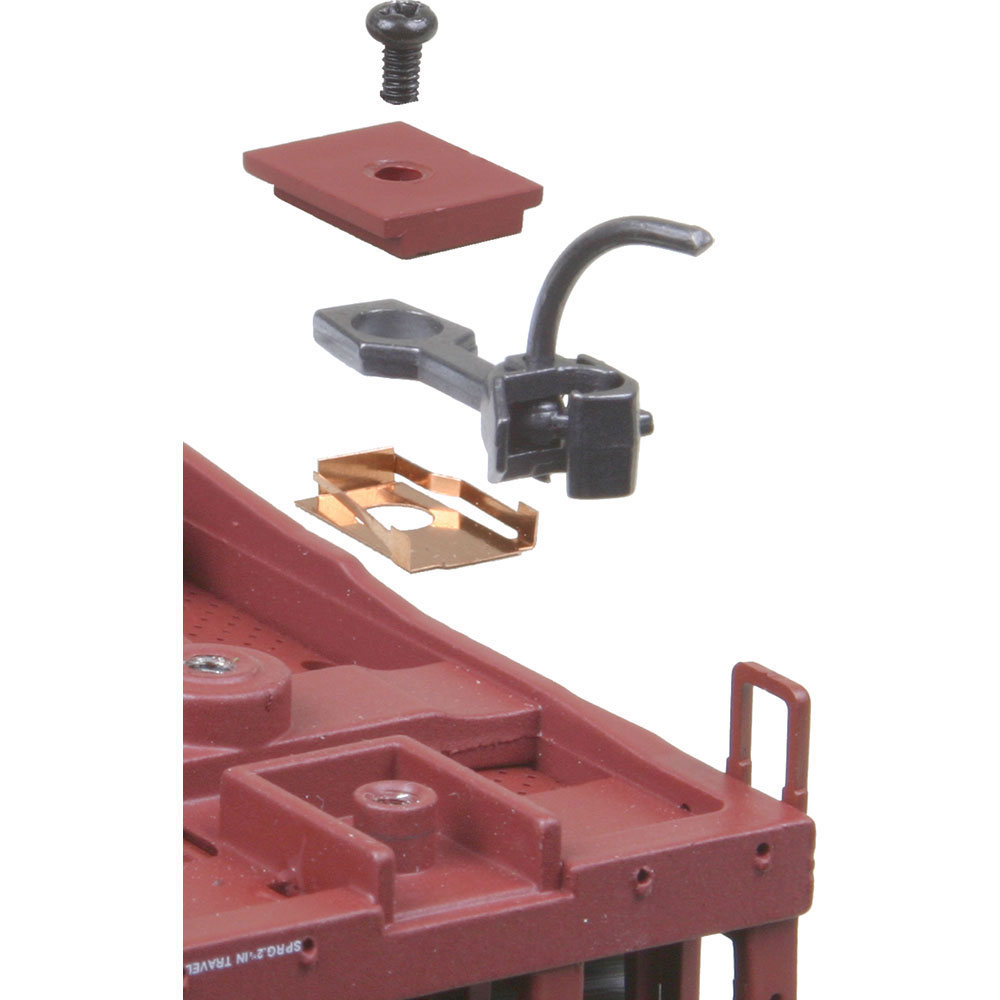

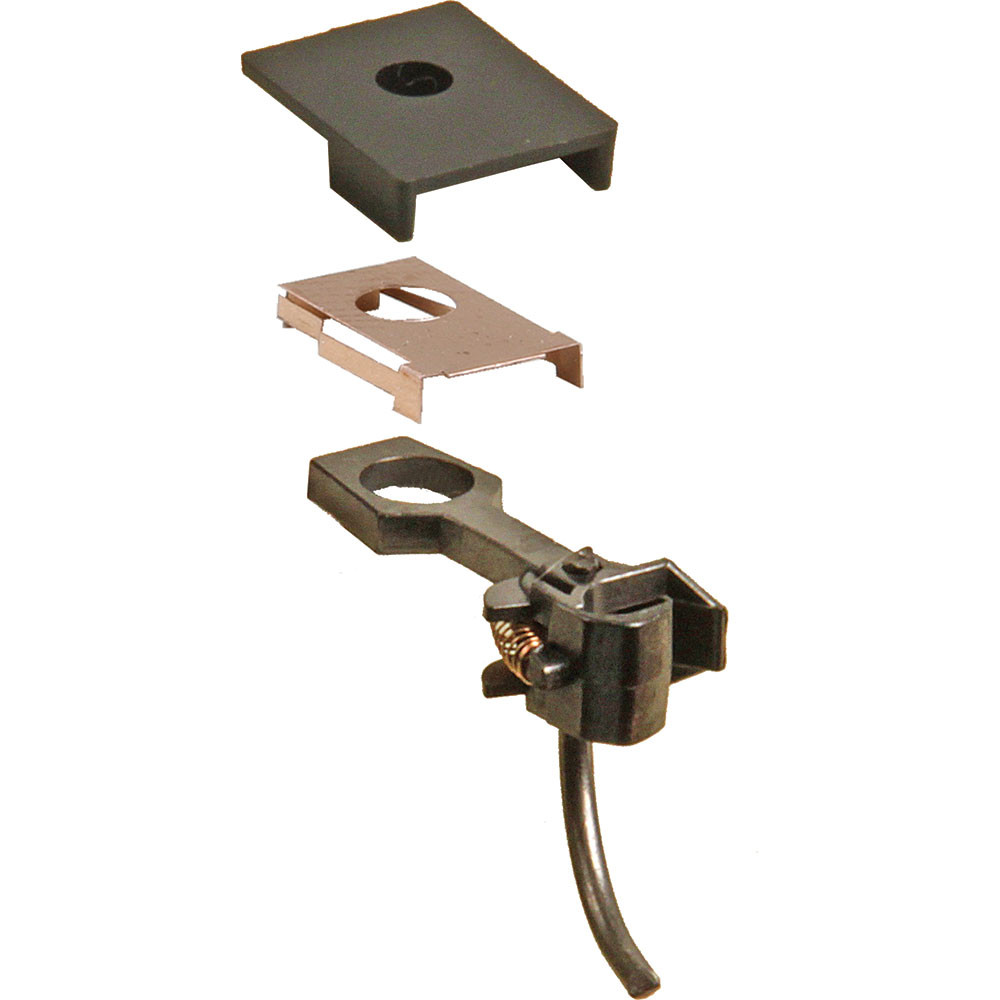

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The #25 Magne-Matic Plastic Coupler may be mounted with the included #213 or #232 Gearbox or with most other manufacturers cast-on coupler pockets.

Package Includes:

(2) Pair #25 Plastic Shank Couplers - Short Overset Shank

(2) Pair #634 Centering Spring NO.5 Style

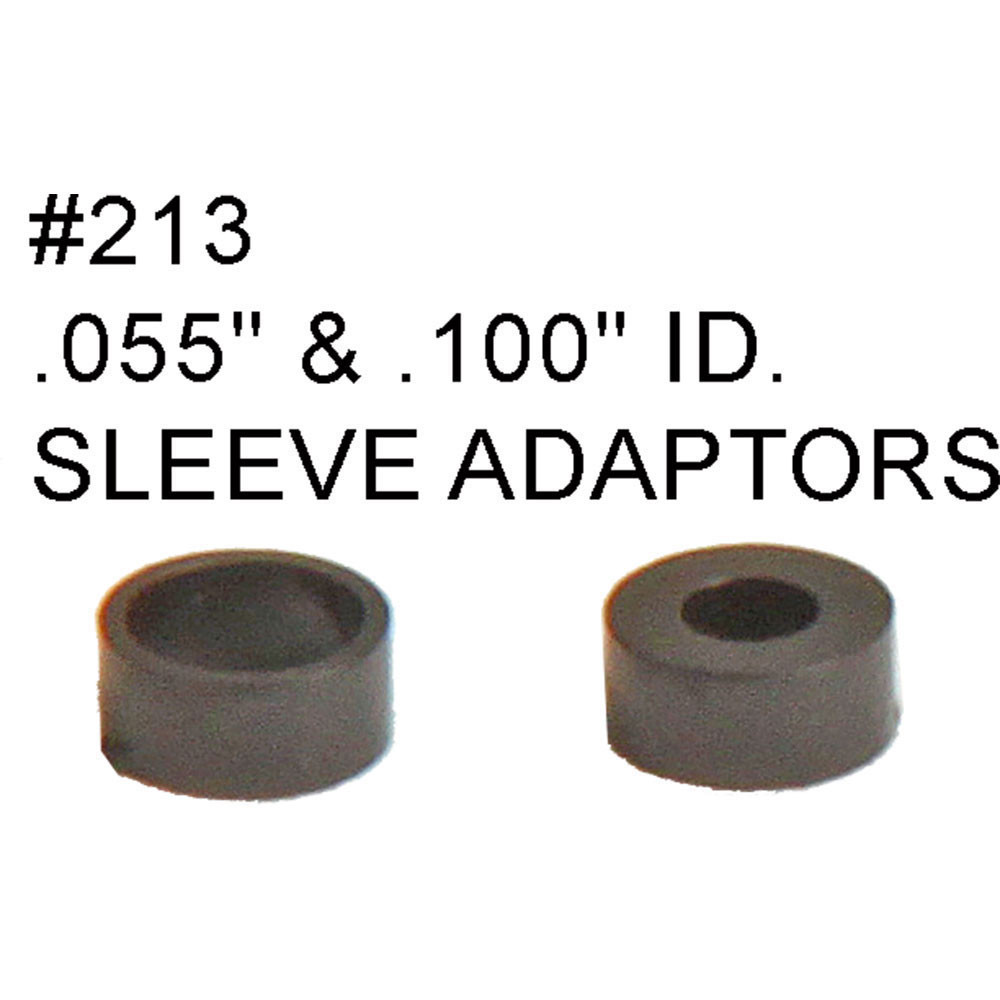

(2) Pair #213 055" ID & .100" ID Bushing/Sleeves

(2) Pair #212 Talgo Truck Adaptors

(2) Pair #213 Gearboxes

(2) Pair #232 Gearboxes

(2) #622 Knuckle Springs

#25 Plastic Coupler Features:

Material

 -   Metal Knuckle, Plastic Coupler Shank

Shank Length

 -   Short 1/4" center hole to back of coupler head

Coupler Offset

 -  Overset

Knuckle Spring

 -   #622

Centering System

 -   Standard Shank

Centering Spring

 -   #634 Centering Spring NO.5 Style

Head

 -   Standard Head

Works In Place of

 -  #145, Short Overset ‘clone’ couplers

Works With

 -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

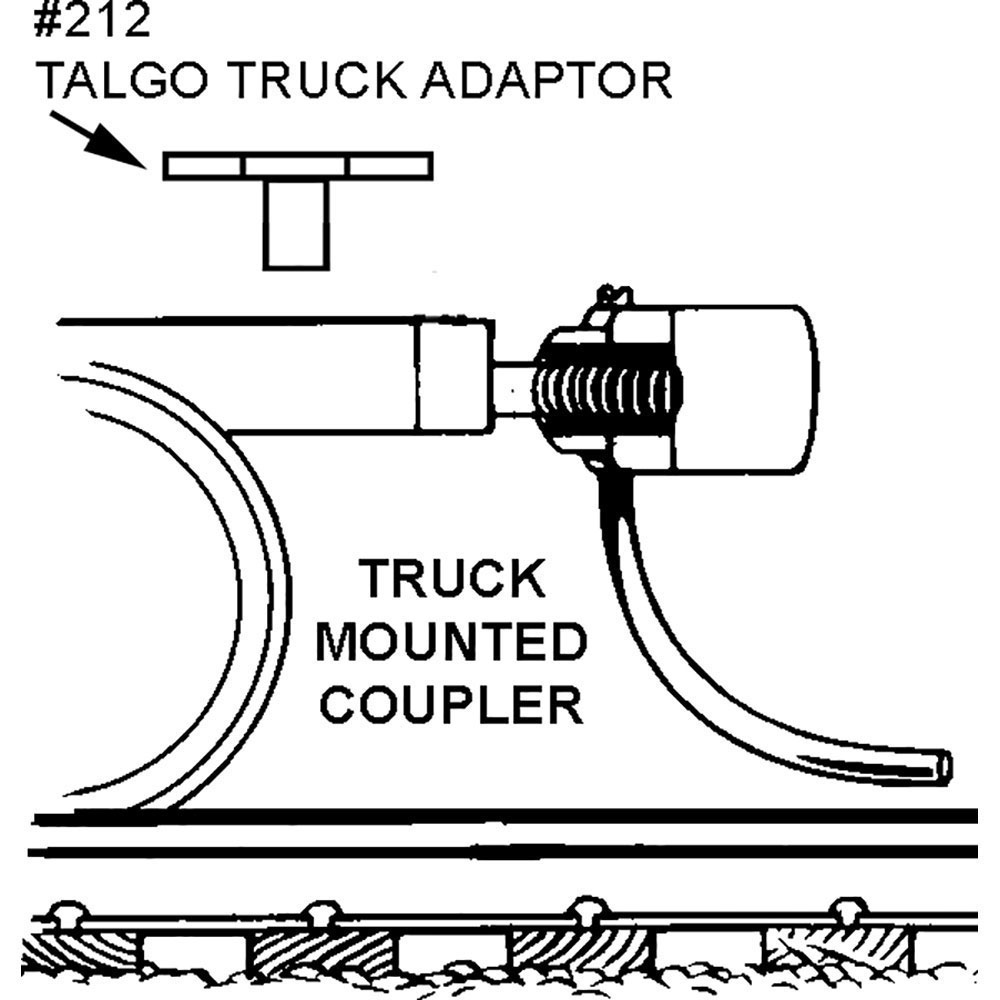

#212 Talgo Truck Adaptors:

Material

 -   Insulated Plastic

Works With

 -   NO.5, #58, 20-Series and all Whisker Couplers

To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.

NOTE: It is important to check coupler height and make sure it is correct before you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.

#213 Plastic Draft Gearboxes:

Material

 -   Insulated Plastic

Dimensions

 -   25/64"L x 5/16"W x 3/32"H

Works With

 -   NO.5, #58, 20-Series and all Whisker Couplers

#232 Plastic Draft Gearboxes & Lids Features:

Material

 -   Insulated Plastic

Dimensions

 -   29/64"L x 19/64"W x 7/64"H

Works With

 -   NO.5, #58, 20-Series and all Whisker Couplers

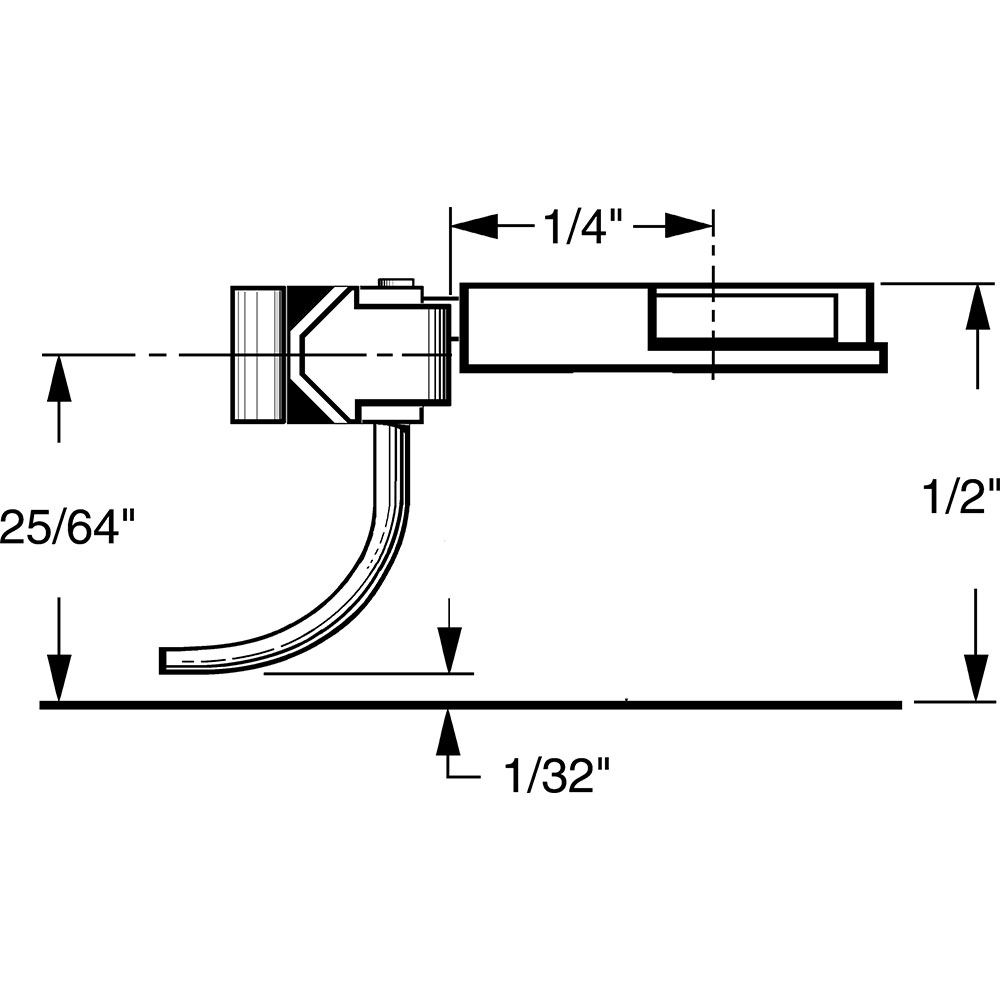

#25 with a #212 Talgo Truck Adaptor. Mounting Specifications:

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

#25 in a #213 mounted on bottom. Mounting Specifications:

Mounting Height

 -  1/2"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. Screw length will vary.

#25 in a #213 mounted on top. Mounting Specifications:

Mounting Height

 -   13/32"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. Screw length will vary.

#25 in a #232 Mounting Specifications:

Mounting Height

 -   1/2"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. Screw length will vary

Side Holes

 -   0-48 Self-Tapping or 0-80 Machine Screws. Screw length will vary.

Don’t forget these other helpful tools for your Kadee coupler installations:

#206 Insulated Muti-Purpose Coupler Height Gauge

#231 Greas-em Dry Graphite Lubricant

#237 Coupler Trip Pin Pliers

#240 Double Headed Pin Vise

#241 Dual Tool Manual Uncoupling Tool and Spring Pick

#246 Tap ‘2-56’ and Drills, #50 and #43

#780 Tap ‘0-80’ and Drills, #55 and #52
