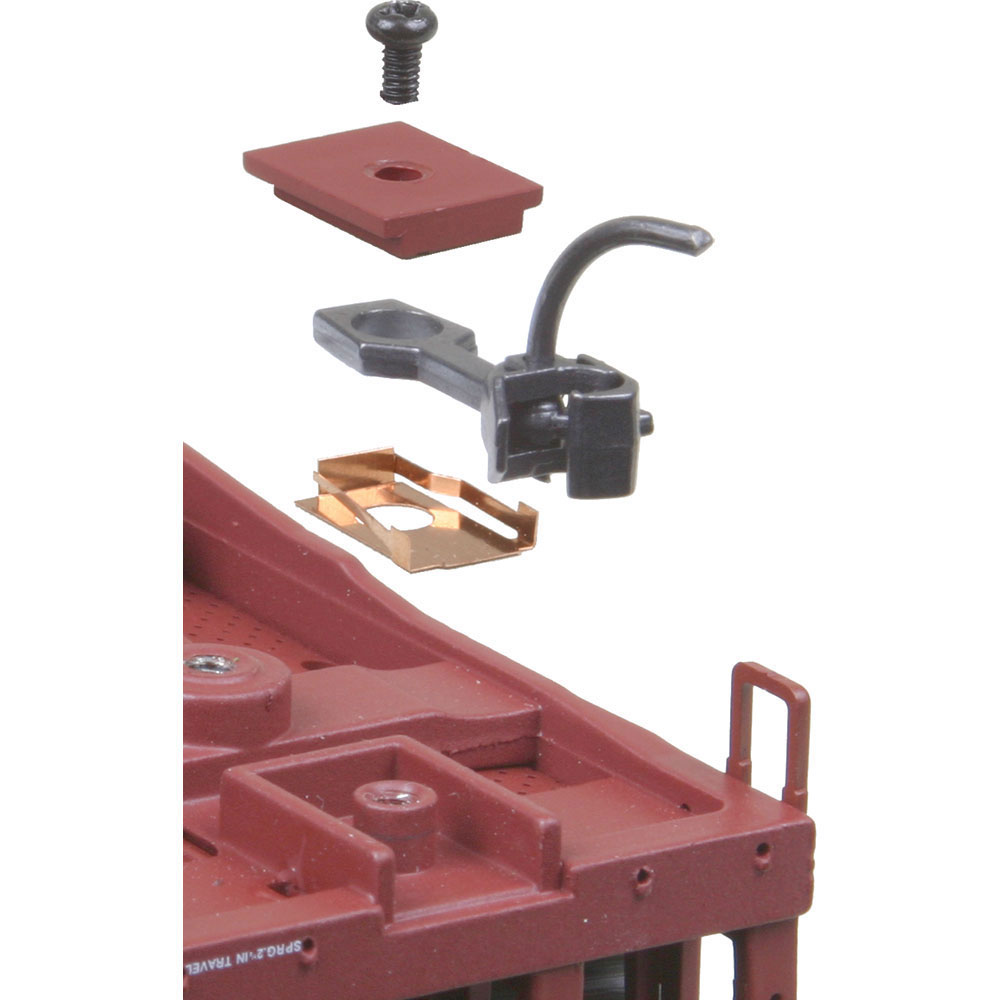

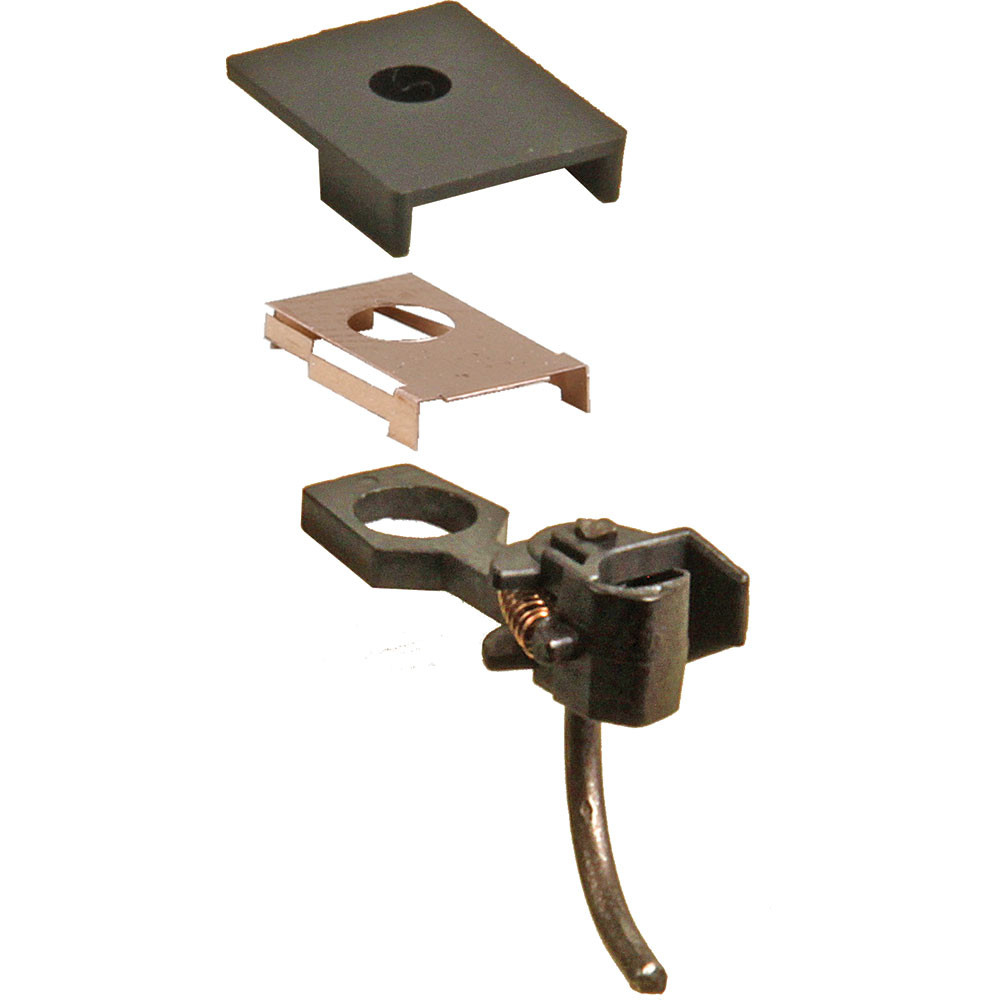

Kadee HO #24 Plastic Couplers with Draft Gear boxes Short 1/4" Underset Shank - 2 Pair

Material

 -   Metal Knuckle, Plastic Coupler Shank

Shank Length

 -   Short 1/4" center hole to back of coupler head

Coupler Offset

 -  Underset

Knuckle Spring

 -   #622

Centering System

 -   Standard Shank

Centering Spring

 -   #634 Centering Spring NO.5 Style

Head

 -   Standard Head

Works In Place of

 -  #144, short underset ‘clone’ couplers

Works With

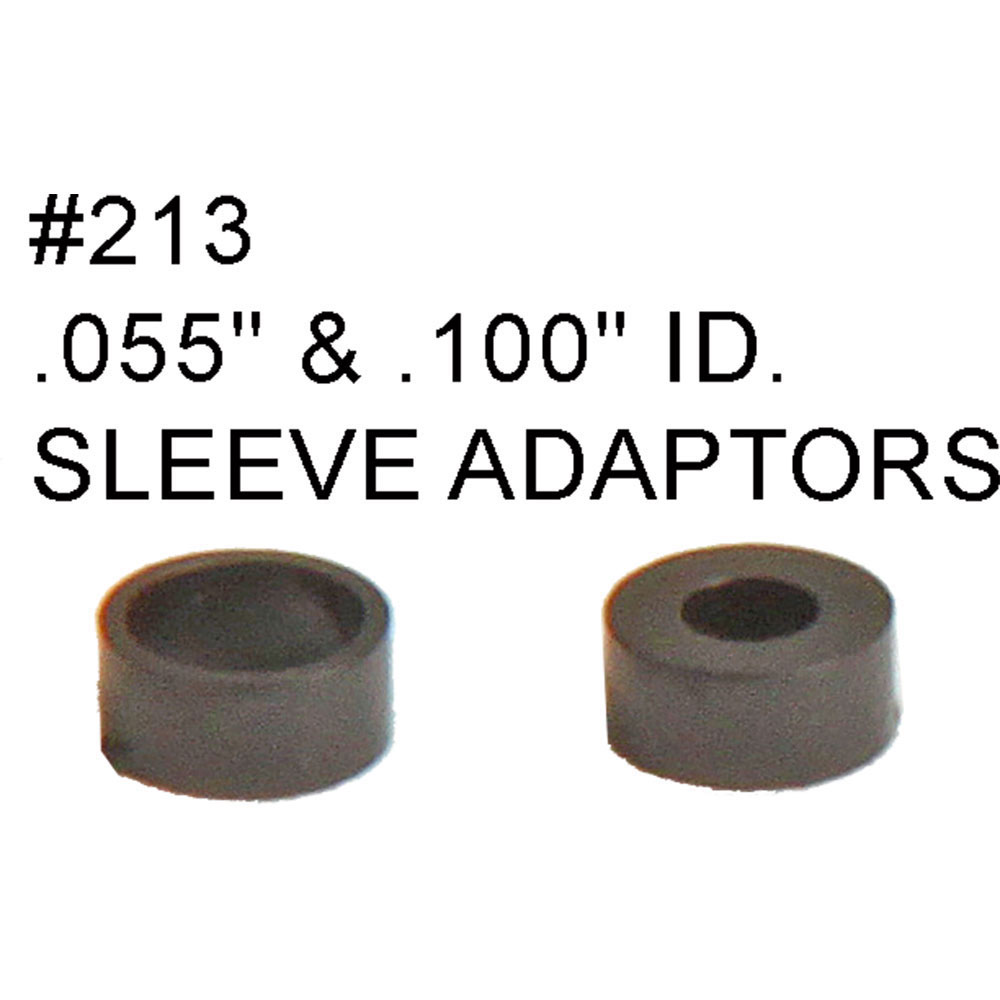

 -   #213, #232, #234, #242, most manufacturer cast-on draft gearboxes

Material

 -   Insulated Plastic

Works With

 -   NO.5, #58, 20-Series and all Whisker Couplers

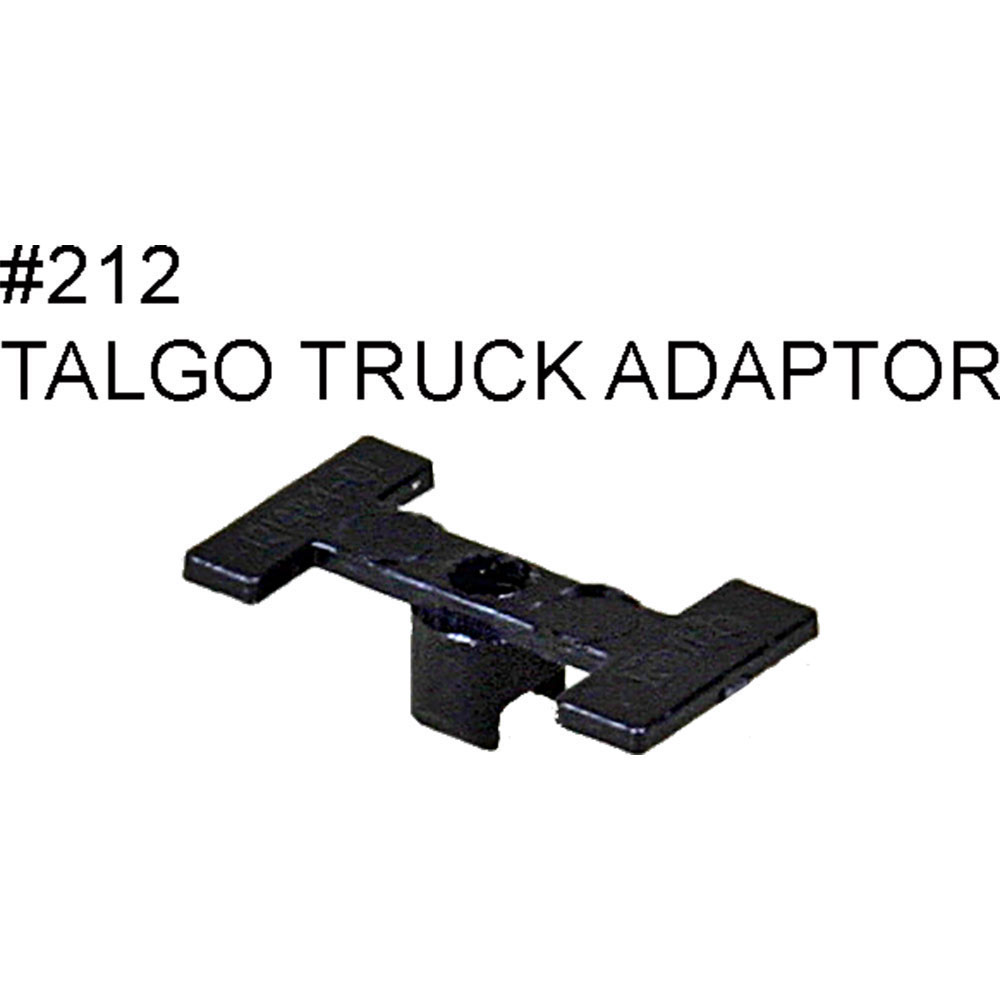

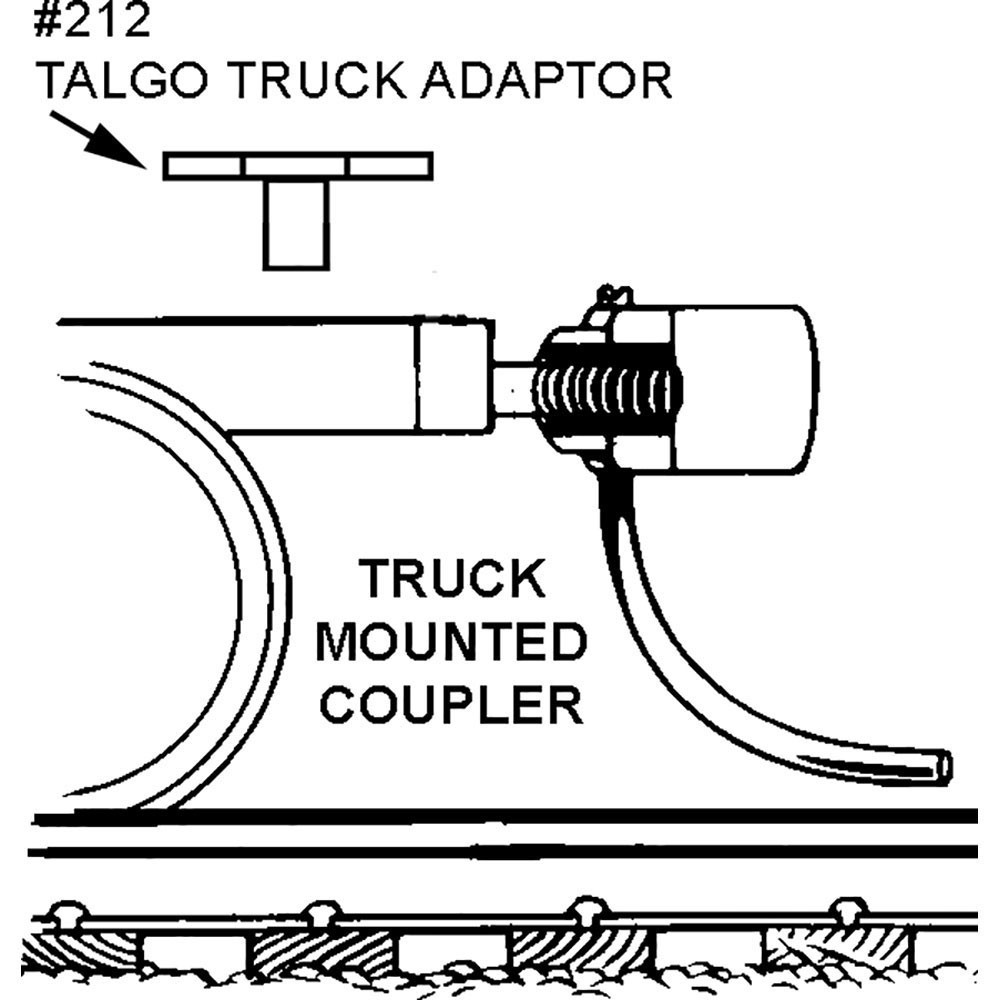

To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge.

NOTE: It is important to check coupler height and make sure it is correct before you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something.

Material

 -   Insulated Plastic

Dimensions

 -   25/64"L x 5/16"W x 3/32"H

Works With

 -   NO.5, #58, 20-Series and all Whisker Couplers

Material

 -   Insulated Plastic

Dimensions

 -   29/64"L x 19/64"W x 7/64"H

Works With

 -   NO.5, #58, 20-Series and all Whisker Couplers

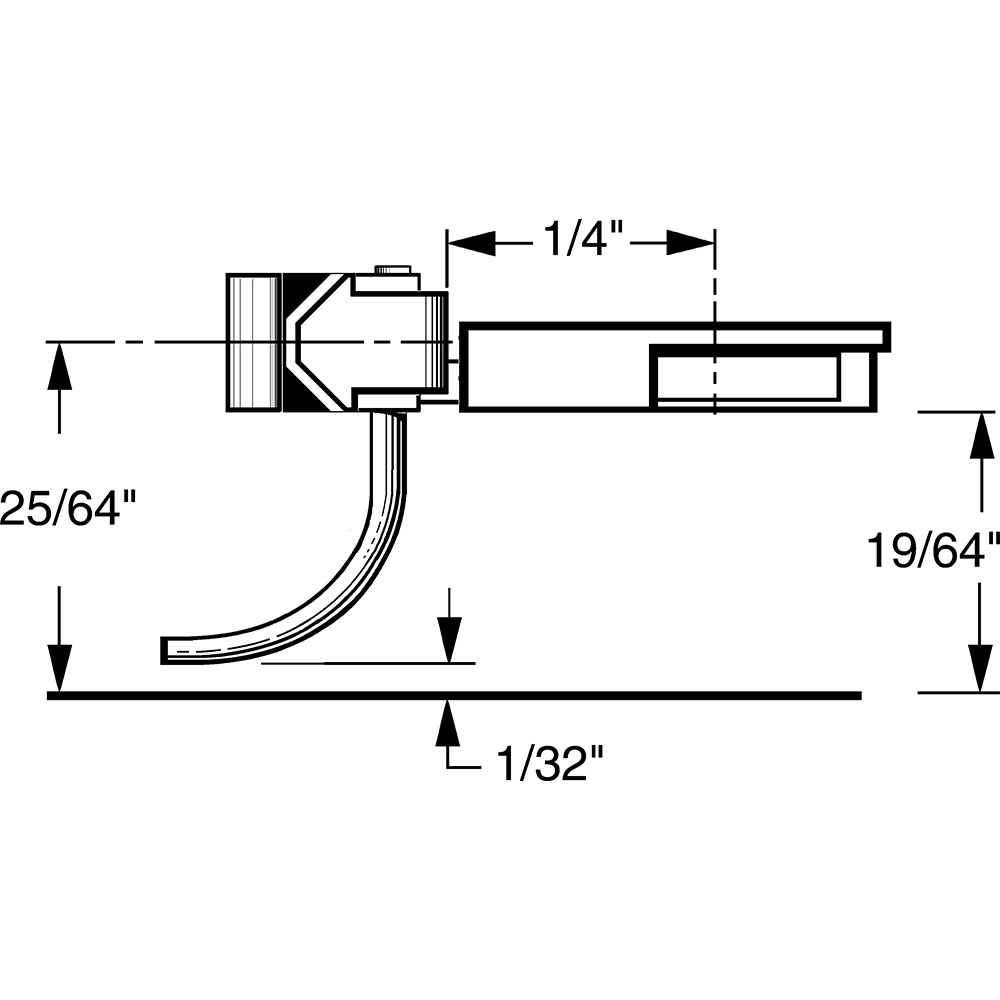

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Mounting Height

 -  25/64"

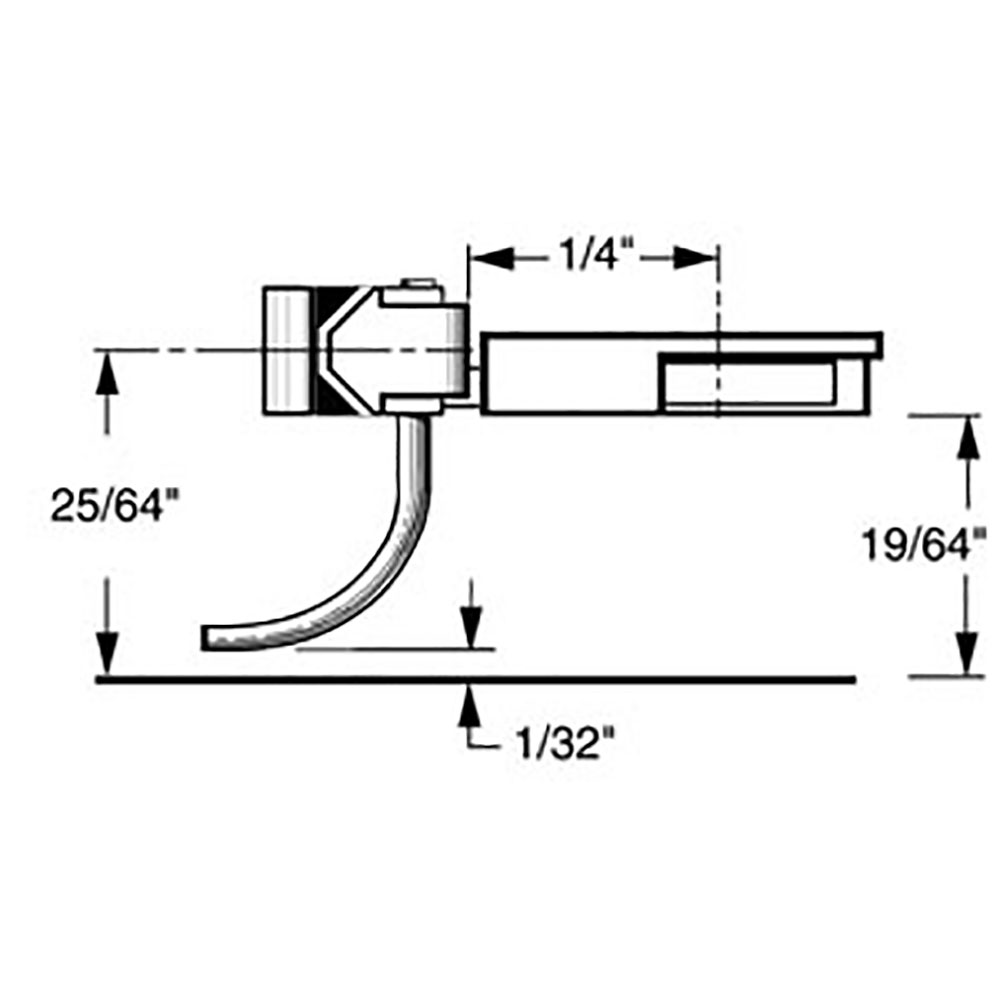

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. Screw length will vary.

Mounting Height

 -   19/64"

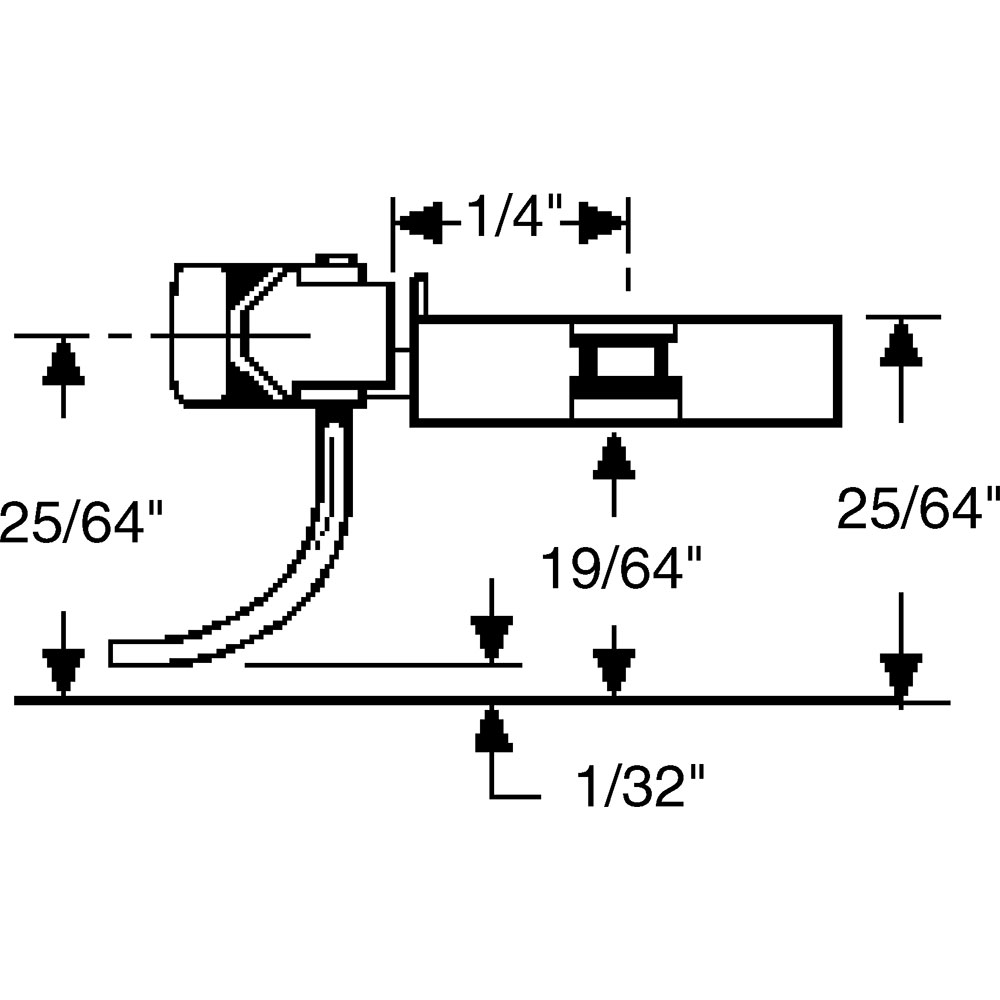

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. Screw length will vary.

Mounting Height

 -   25/64"

Centerline

 -   25/64"

Trip Pin Height

 -   1/32"

Center Hole

 -   2-56 Insulated Screws are the most commonly used. Screw length will vary.

Side Holes

 -   0-48 Self-Tapping or 0-80 Machine Screws. Screw length will vary.
