Kadee HO #22 Plastic Couplers with Draft Gear boxes Medium 9/32" Overset Shank - 2 Pair
- In Stock:
- 7
- Scale:
- HO
- SKU:
- KAD22
- Availability:
- Y
Description
Kadee HO #22 Plastic Couplers with Draft Gear boxes Medium 9/32" Overset Shank - 2 Pair
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

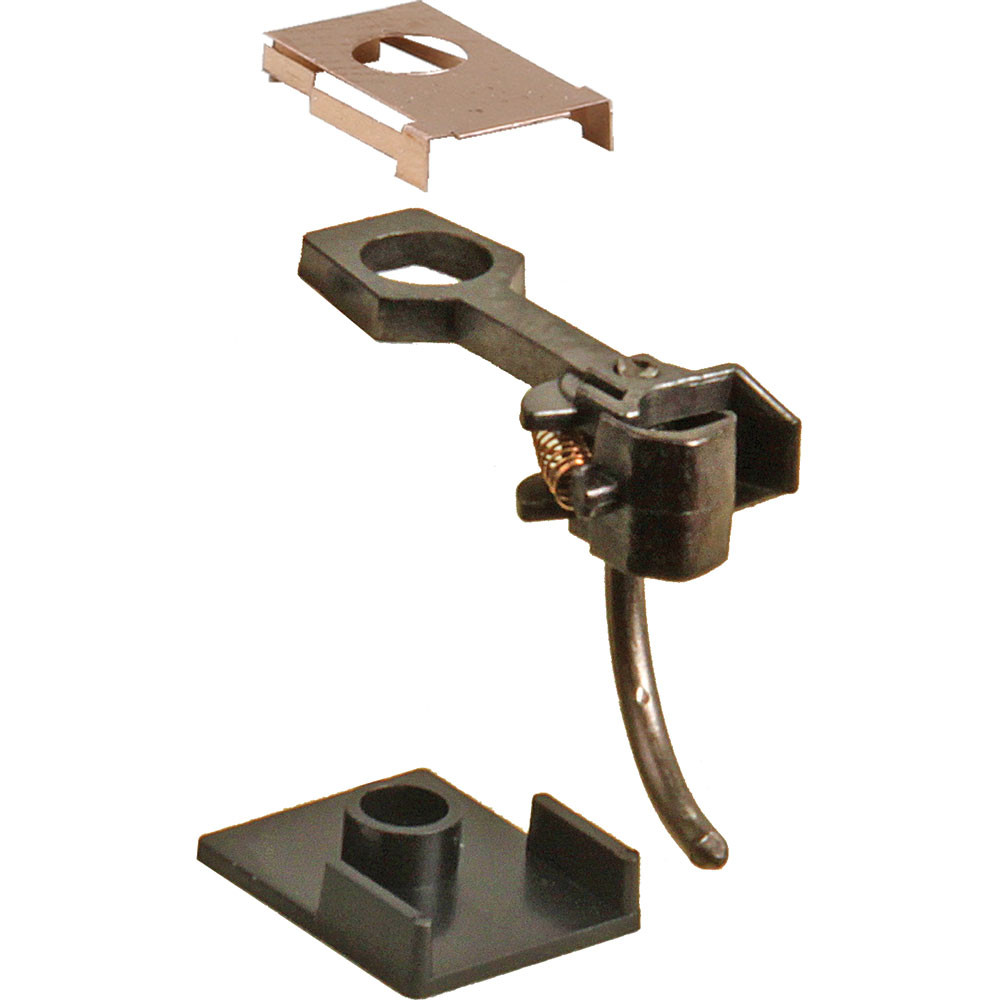

This industry leading coupler features plastic standard coupler with metal knuckle, and #634 standard centering spring and comes complete with insulated draft gearbox and lid. The #22 Magne-Matic Plastic Coupler may be mounted with the included #213 or #232 draft gear box or with most other manufacturers cast-on coupler pockets.
Package Includes:
(2) Pair #22 Plastic Shank Couplers - Medium Overset Shank
(2) Pair #634 Centering Spring NO.5 Style

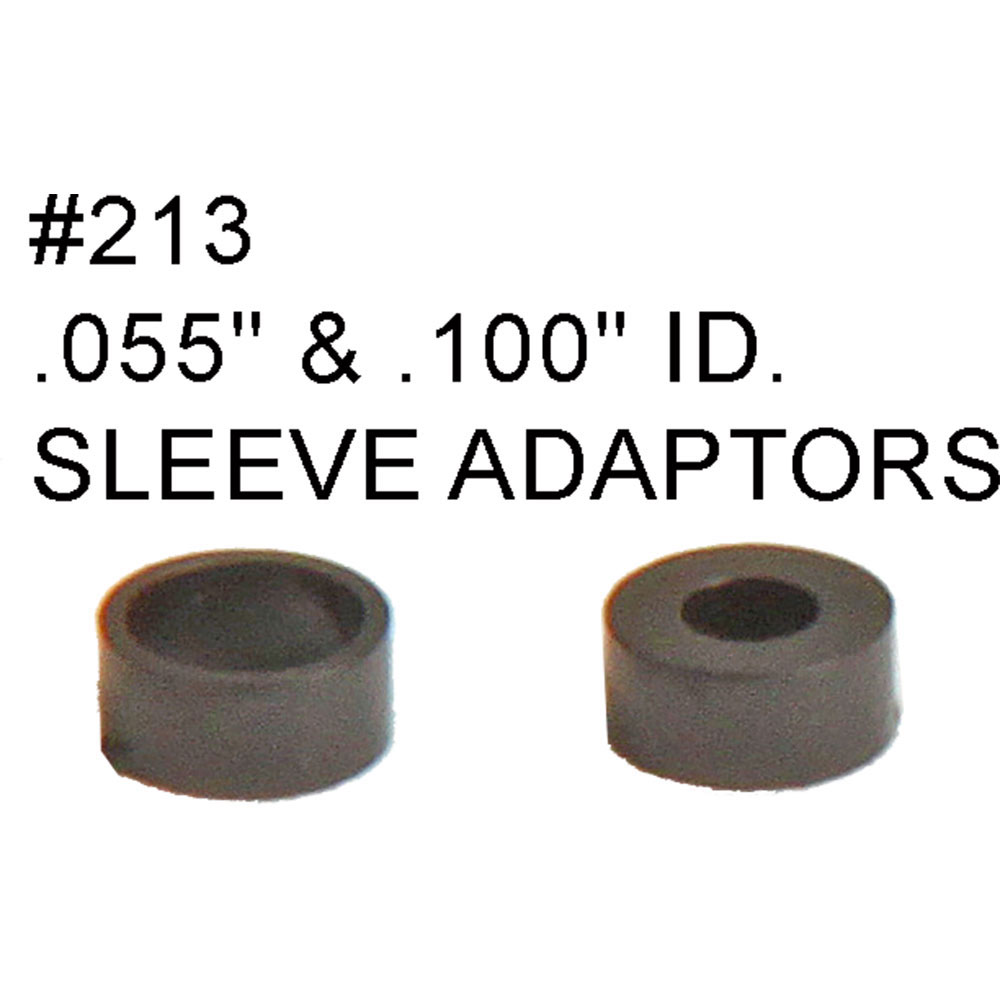

(2) Pair #213 055" ID & .100" ID Bushing/Sleeves
(2) Pair #212 Talgo Truck Adaptors
(2) Pair #213 Gearboxes
(2) Pair #232 Gearboxes
(2) #622 Knuckle Springs
#22 Plastic Coupler Features:
|
Material |
- Metal Knuckle, Plastic Coupler Shank |
|
Shank Length |
- Medium 9/32" center hole to back of coupler head |
|
Coupler Offset |
- Overset |
|
Knuckle Spring |
- #622 |
|
Centering System |
- Standard Shank |
|
Centering Spring |
- #634 Centering Spring NO.5 Style |
|
Head |
- Standard Head |
|
Works In Place of |
- #142, Medium Overset ‘clone’ couplers |
|
Works With |
- #213, #232, #234, #242, most manufacturer cast-on draft gearboxes |

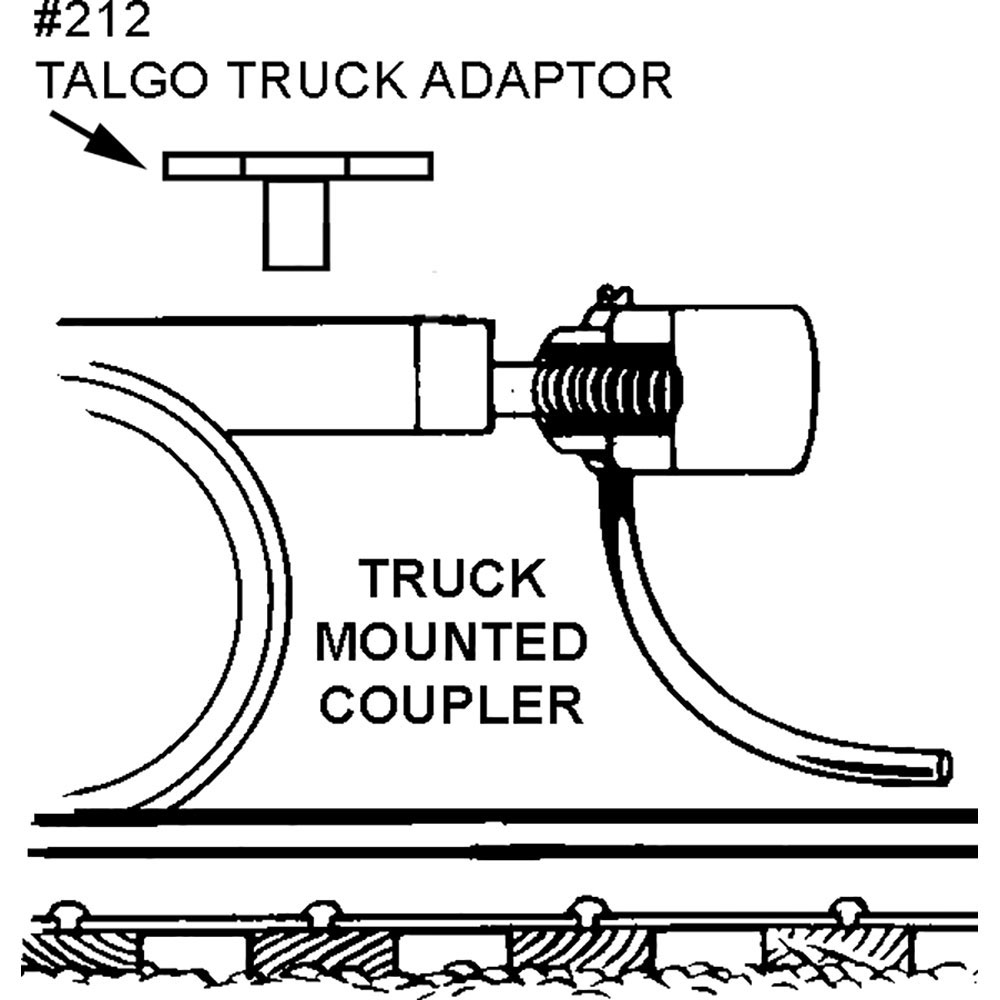

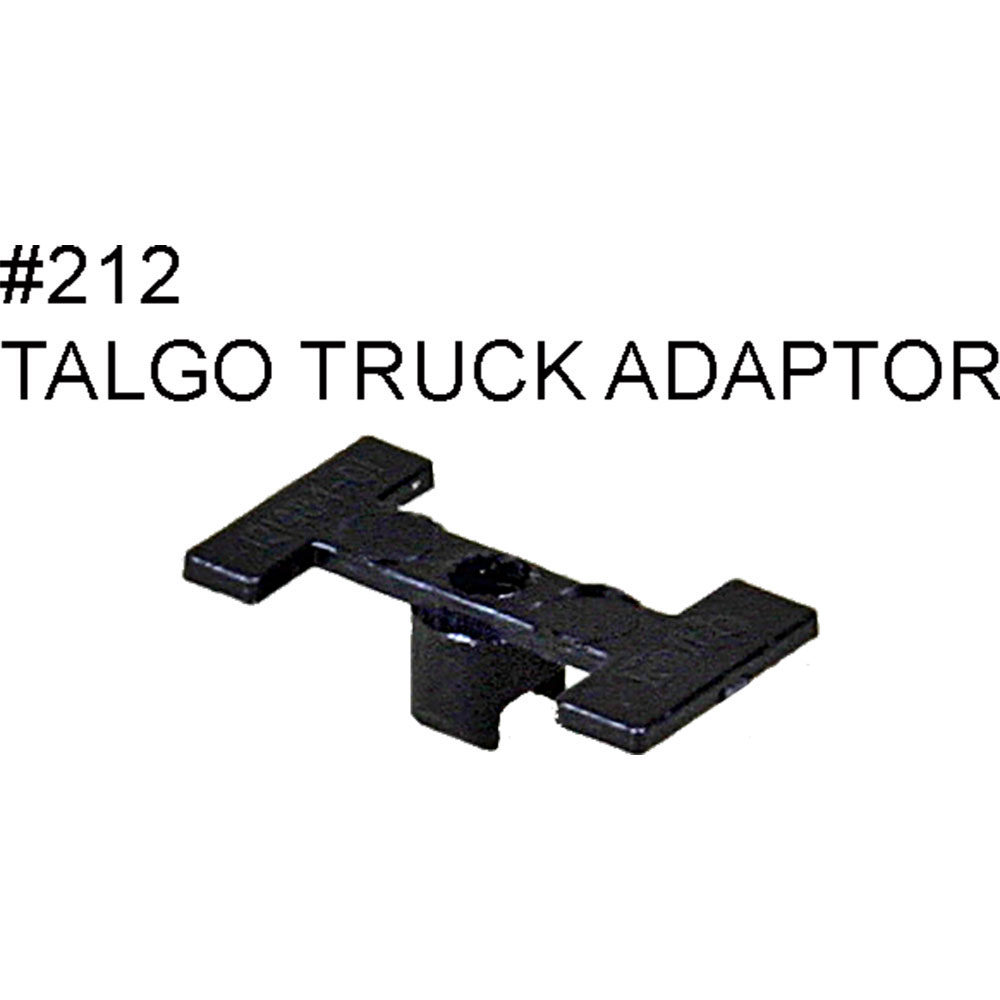

#212 Talgo Truck Adaptors:
|
Material |
- Insulated Plastic |
|
Works With |
- NO.5, #58, 20-Series and all Whisker Couplers |
|
To check coupler height, set the coupler into the talgo truck pocket and hold it level as possible and check the coupler height with a #205 or newer #206 HO coupler height gauge. |
|
|
NOTE: It is important to check coupler height and make sure it is correct before you insert the talgo truck adaptor, because it's almost impossible to remove without breaking something. |
|
#213 Plastic Draft Gearboxes:
|
Material |
- Insulated Plastic |
|
Dimensions |
- 25/64"L x 5/16"W x 3/32"H |
|
Works With |
- NO.5, #58, 20-Series and all Whisker Couplers |
#232 Plastic Draft Gearboxes & Lids Features:
|
Material |
- Insulated Plastic |
|
Dimensions |
- 29/64"L x 19/64"W x 7/64"H |
|
Works With |
- NO.5, #58, 20-Series and all Whisker Couplers |

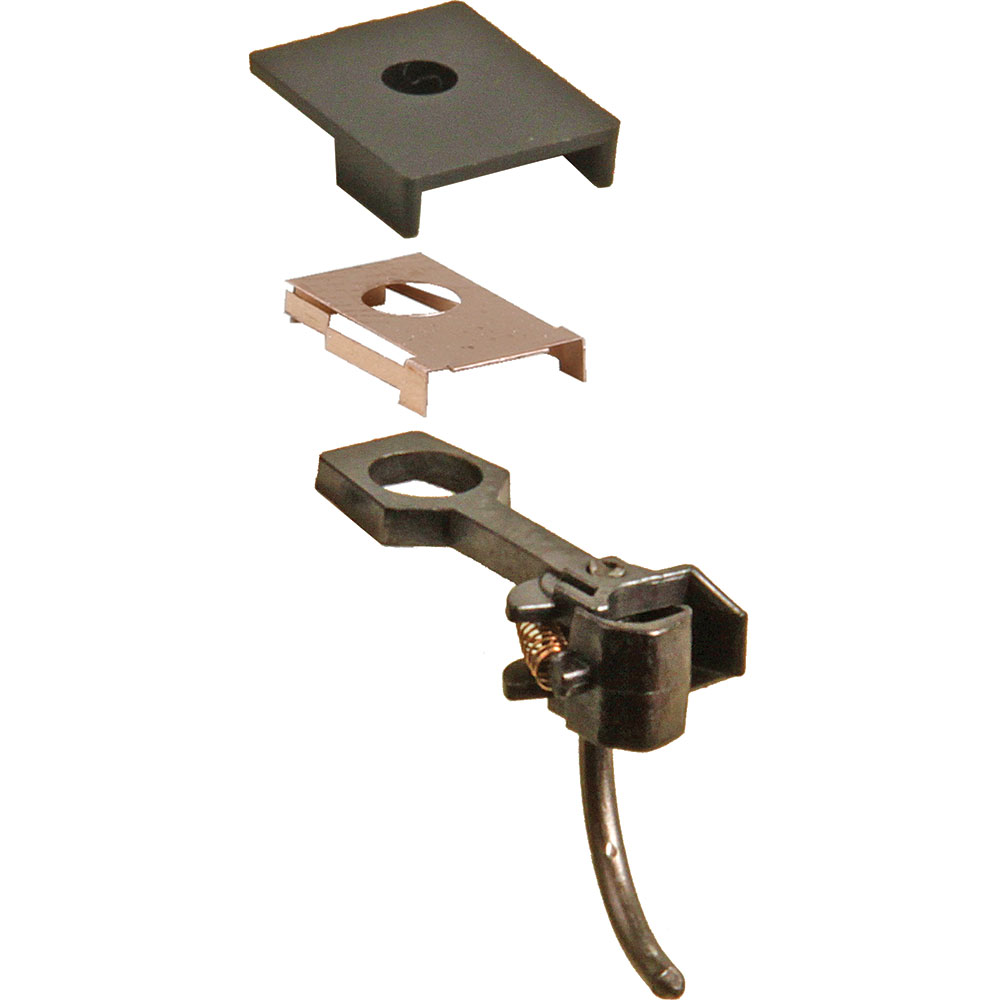

#22 with a #212 Talgo Truck Adaptor. Mounting Specifications:
|
Centerline |
- 25/64" |
|
Trip Pin Height |
- 1/32" |

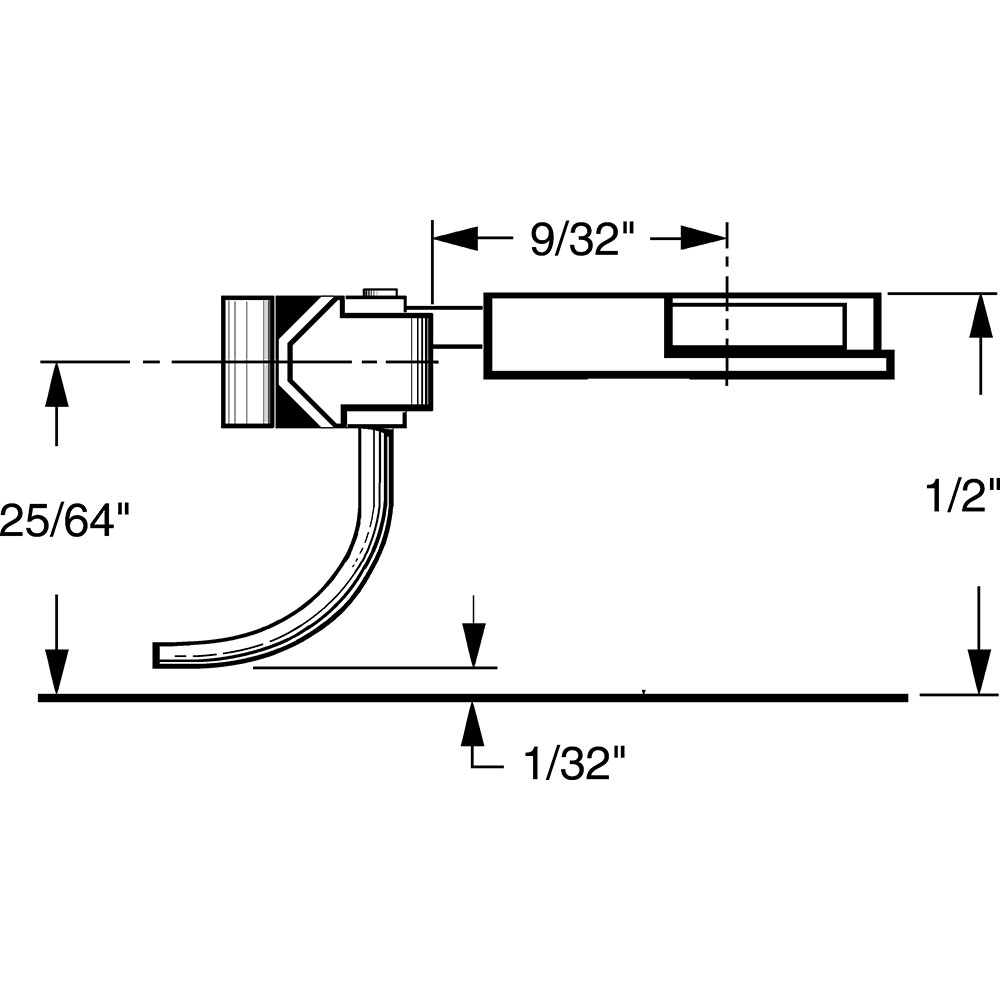

#22 in a #213 mounted on bottom. Mounting Specifications:
|
Mounting Height |
- 1/2" |
|
Centerline |
- 25/64" |
|
Trip Pin Height |
- 1/32" |
|
Center Hole |
- 2-56 Insulated Screws are the most commonly used. Screw length will vary. |

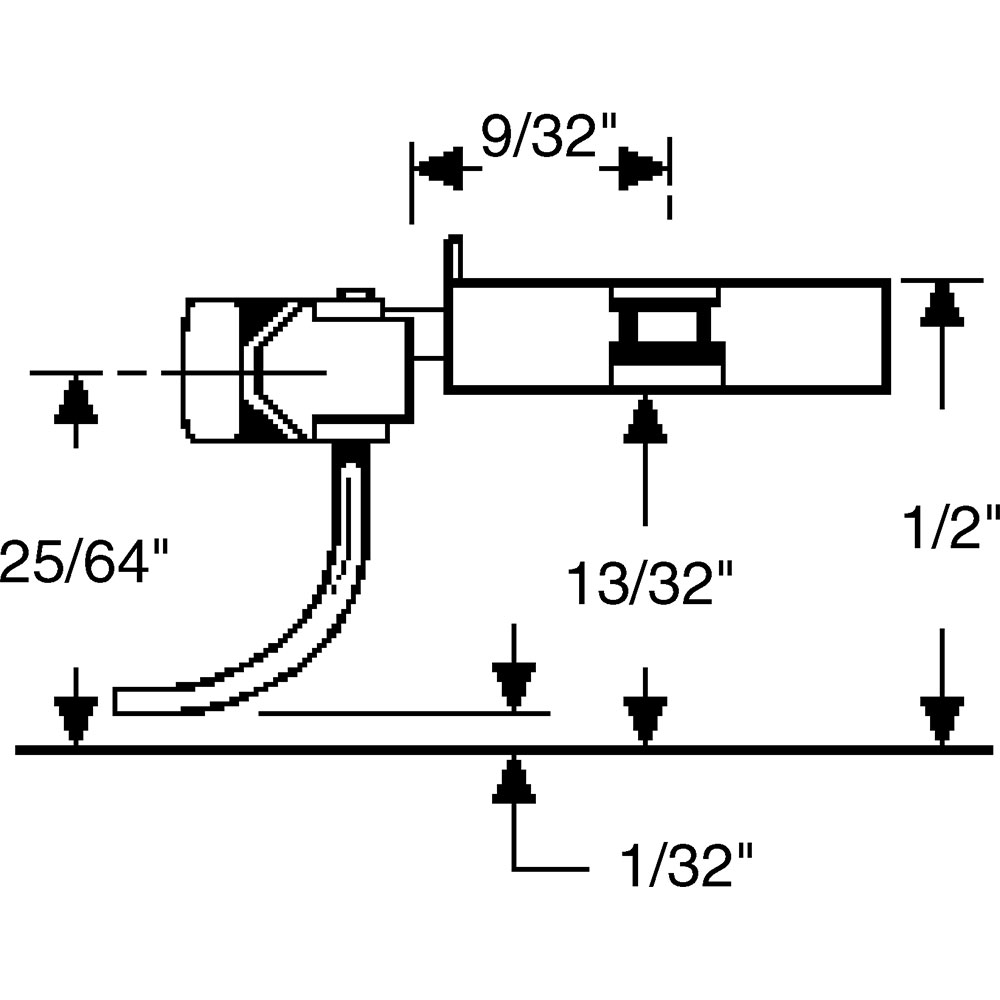

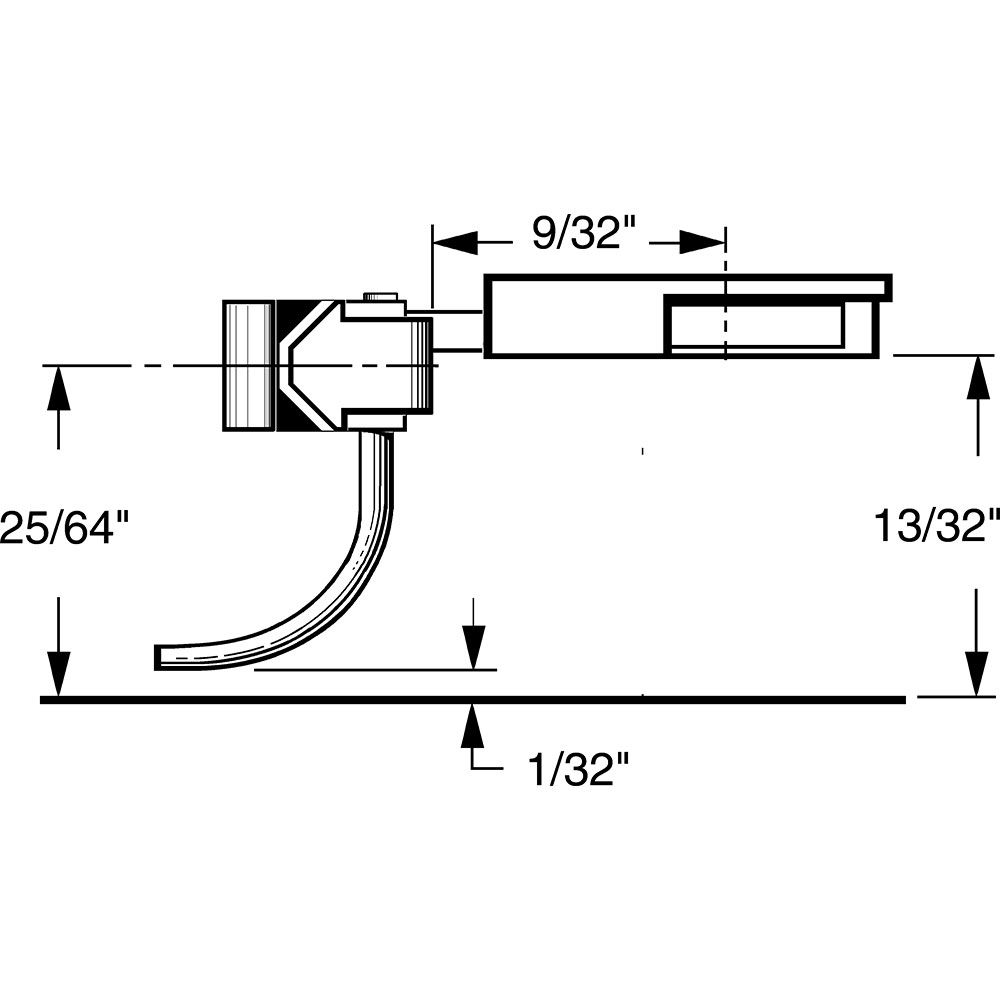

#22 in a #213 mounted on top. Mounting Specifications:
|
Mounting Height |
- 13/32" |
|
Centerline |
- 25/64" |
|
Trip Pin Height |
- 1/32" |
|
Center Hole |
- 2-56 Insulated Screws are the most commonly used. Screw length will vary |

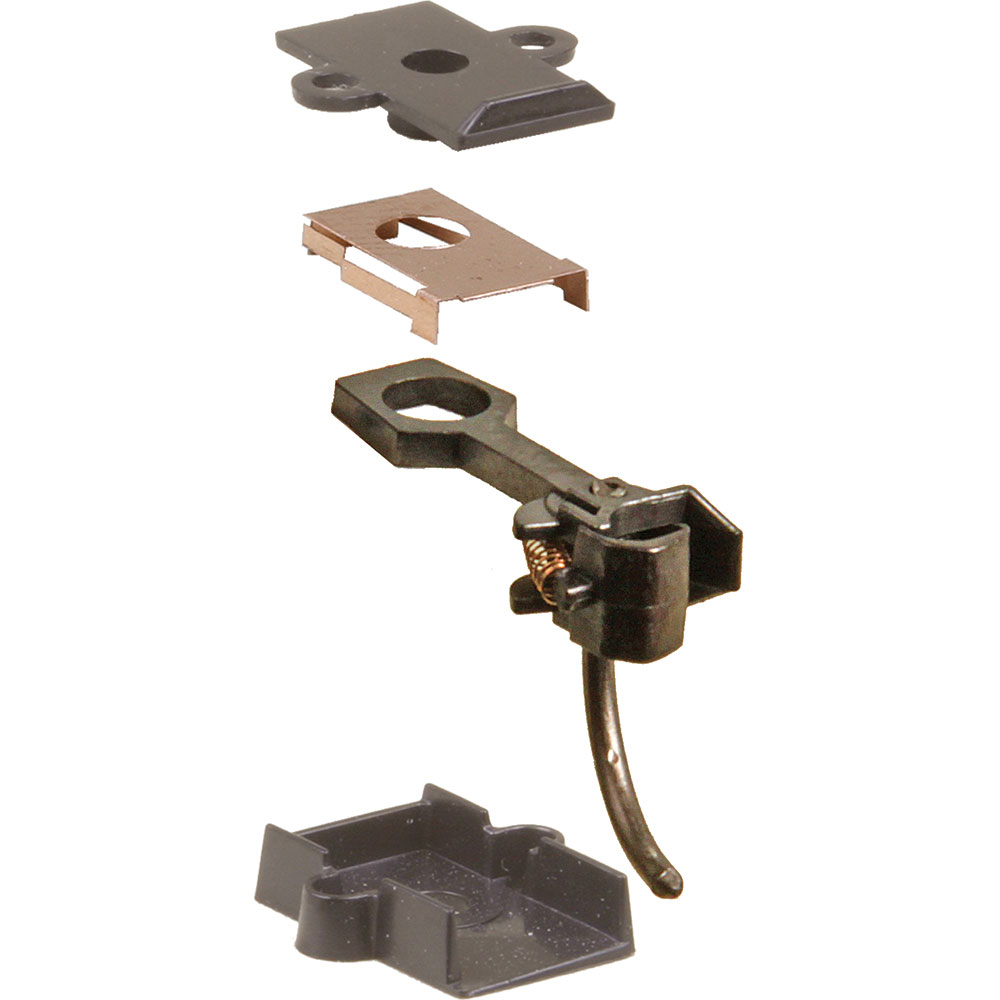

#22 in a #232 Mounting Specifications:
|
Mounting Height |
- 1/2" |
|
Centerline |
- 25/64" |
|
Trip Pin Height |
- 1/32" |
|
Center Hole |
- 2-56 Insulated Screws are the most commonly used. Screw length will vary |
|
Side Holes |
- 0-48 Self-Tapping or 0-80 Machine Screws. Screw length will vary |
Don’t forget these other helpful tools for your Kadee coupler installations:
#206 Insulated Muti-Purpose Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap ‘2-56’ and Drills, #50 and #43
#780 Tap ‘0-80’ and Drills, #55 and #52
