Kadee HO #148 Whisker Metal Couplers with Draft Gear boxes Universal Medium 9/32" Centerset Shank - 2 Pair

Description

Kadee HO #148 Whisker Metal Couplers with Draft Gear boxes Universal Medium 9/32" Centerset Shank - 2 Pair

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.  Use the provided insulated gearbox or insulated #28 coupler.

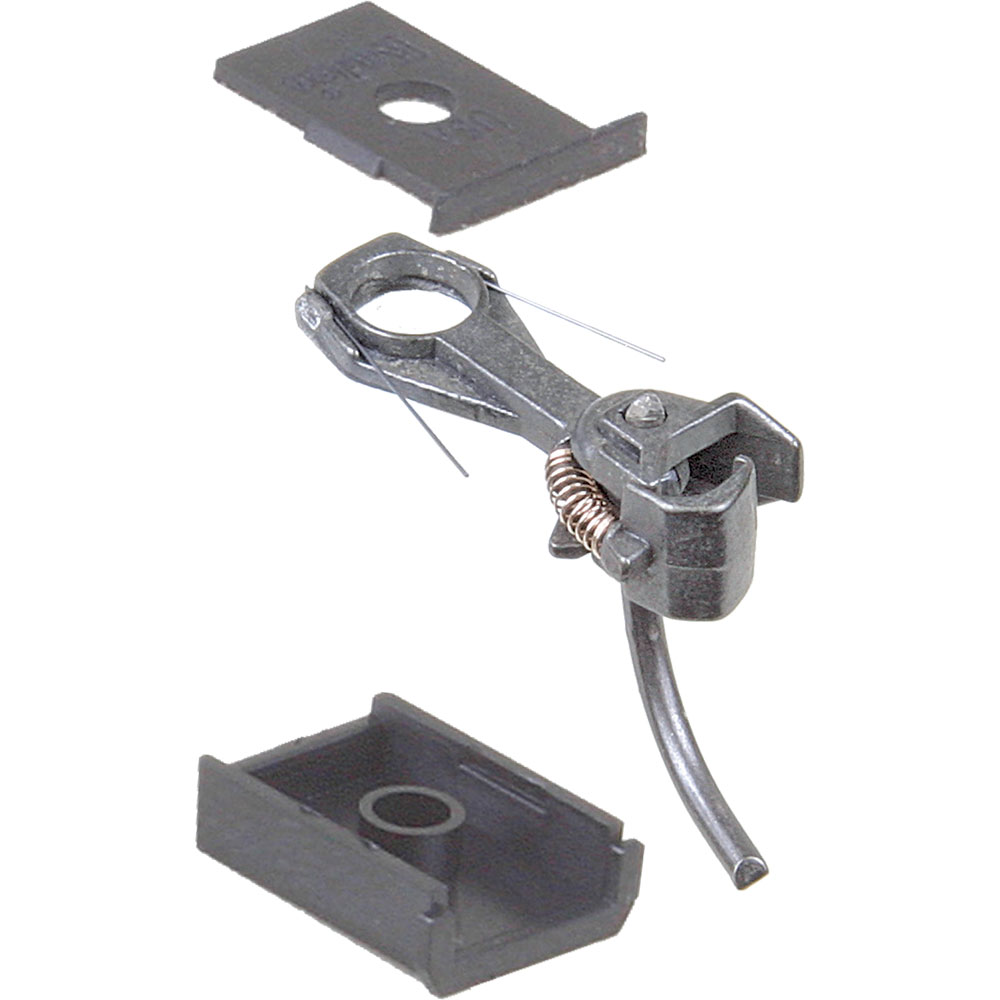

This industry leading coupler features an all metal coupler head, shank, and Whisker centering spring and comes complete with insulated draft gearbox and lid. The #148 Magne-Matic Whisker Metal Coupler may be mounted with the included #242 Snap-Together Gearbox or with other manufacturers cast-on coupler pockets.

The #148 Whisker Metal Coupler will work anywhere a NO.5 Coupler will work and is a direct replacement for most Bachmann On30 couplers & a direct replacement for most plastic Medium Centerset 'clone' couplers.

Package Includes:

(2) Pair #148 Whisker Metal Couplers - Medium Centerset Shank

(2) Pair #242 Snap-Together Gearboxes

(2) #622 Knuckle Springs

#148 Whisker Metal Coupler Features:

Note: Some manufacturers now produce models with non-industry standard coupler pockets molded-on gearbox. These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, the top of the #148 Whisker coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.

#242 Snap-Together Gearbox Features:

Mounting Specifications:

Don’t forget these other helpful tools for your Kadee coupler installations:

#206 Insulated Muti-Purpose Coupler Height Gauge

#231 Greas-em Dry Graphite Lubricant

#237 Coupler Trip Pin Pliers

#240 Double Headed Pin Vise

#241 Dual Tool Manual Uncoupling Tool and Spring Pick

#246 Tap ‘2-56’ and Drills, #50 and #43

#780 Tap ‘0-80’ and Drills, #55 and #52
