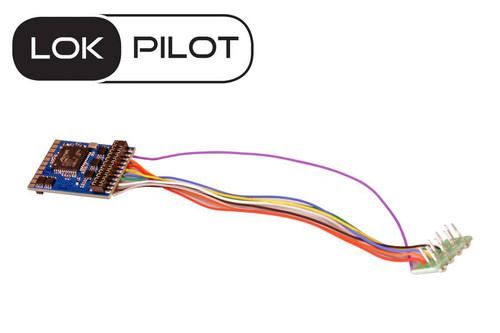

ESU DCC Decoder 59820 LokPilot 5 Micro DCC 8 Pin Plug NEM652

Description

ESU DCC Decoder 59820 LokPilot 5 Micro DCC 8 Pin Plug NEM652

The LokPilot 5 micro DCC is the ‘twin’ of the LokPilot 5 micro. With just 8.0mm x 7.0mm and a thickness of only 2.4mm on the capacitor: 2.9mm, just so small that it can also be accommodated in very small locomotives of nominal sizes Z, N or TT, it is a pure DCC Decoder. This lack of flexibility is rewarded with a lower price.

LokPilot 5 micro DCC decoders are available with all common interfaces. The variants with Next18 or PluX16 interface are a bit larger with a base area of 13.0mm x 9.2mm, but have 2 additional function outputs.

Modes

The LokPilot 5 micro DCC is a ‘pure-bred’ DCC decoder. 14 to 128 speed steps are as natural as 2- and 4-digit addresses. Up to 32 functions can be triggered. Thanks to RailComPlus the decoders register automatically with a suitable DCC system like the ESU CabControl.

The decoder accepts all DCC programming modes and thanks to RailCom the CV values ​​can be read on the main track with RailCom equipped DCC systems. For command stations that only program the CVs from 1-255 auxiliary CV registers exist.

The LokPilot 5 micro DCC decoder recognizes the Marklin braking sections as well as the ZIMO HLU / ZACK Commands or the Lenz ABC system. Also braking with DCC brake modules or with DC voltages possible. It also stops with a Selectrix brake diode. An ABC automatic shuttle train enables automatic commuting between two train stations.

The LokPilot 5 micro DCC decoder can be used on analog DC trains. The top speed can be set separately.

The decoder switches between the operating modes fully automatically ‘on-the-fly’.

Features

We know that you want your locomotives to be as realistic as possible. Therefore, we have the LokPilot 5 DCC packed with function outputs. Depending on the interface version, each LokPilot offers 5 DCC Decoder at least 10 amplified function outputs with 250mA output current each. In the executions with PluX22 or 21MTC interface there are 4 outputs to control servos or Logic level outputs added. All-important lighting functions are available. The brightness of each output can be set separately. The decoder masters automatic pushing and pulling when uncoupling for ROCO, Krois and Telex couplings.

Motor control

The engine control of the LokPilot 5 DCC has been fundamentally improved again. A variably adjustable PWM clock frequency from 10kHz to 50kHz ensures super quiet operation, especially with bell-armature motors. Operation - The typical ‘hum’ is a thing of the past. The load control now has up to 10 CVs which can be adjusted for difficult cases. The unique ‘Autotune’ function enables the automatic calibration of the decoder to the motor. The LokPilot 5 DCC decoder delivers up to 1.5A of motor current. Enough juice even for older motors.

Operational safety

On request, a PowerPack can be fitted to the LokPilot 5 DCC to bridge dirty rail sections.

Protection

Of course, all function outputs as well as the motor output are protected against overload. We want you to enjoy the features of our decoders for as long as possible!

Future proof

The LokPilot 5 DCC can be updated and, if necessary, new operating software can be uploaded with the aid of an ESU LokProgrammer to do so.
