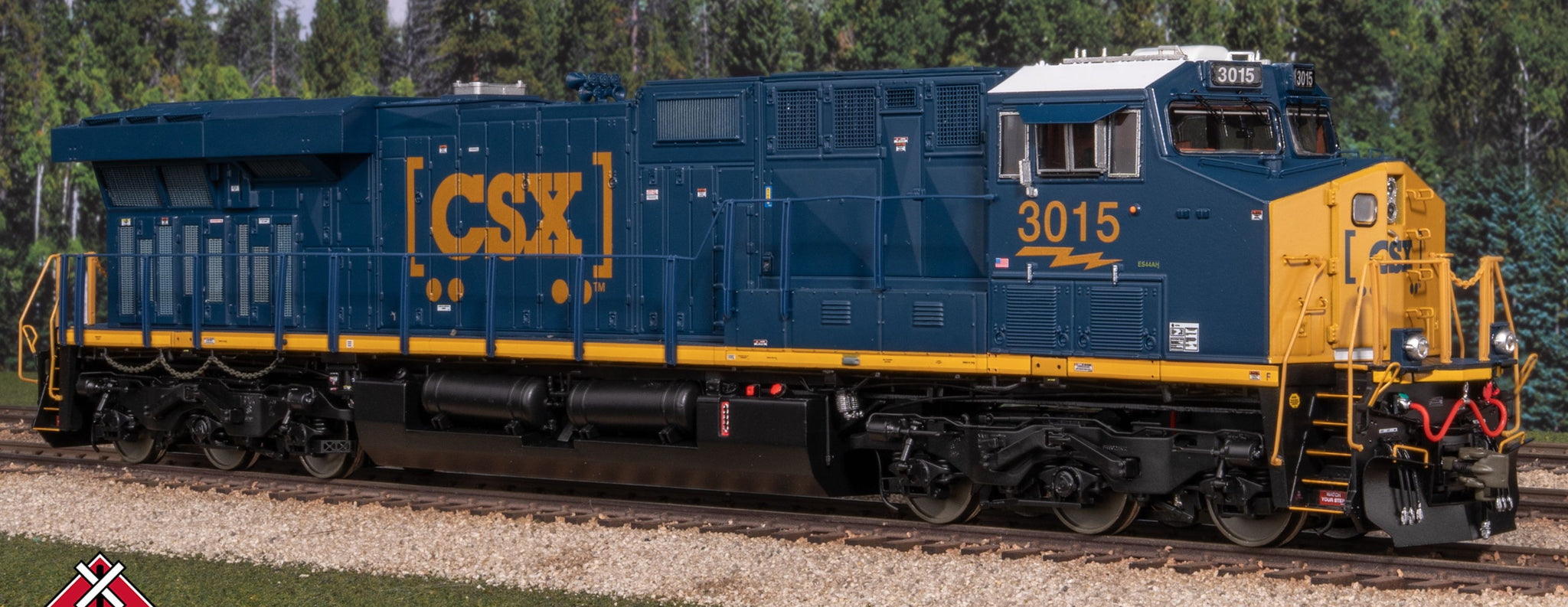

ScaleTrains Rivet Counter HO SXT41627 DCC/ESU Loksound 5 Equipped GE ES44AH Locomotive CSX 'YN3 Boxcar Logo' w/PTC CSXT #3015

ScaleTrains Rivet Counter HO SXT41627 DCC/ESU Loksound 5 Equipped GE ES44AH Locomotive CSX 'YN3 Boxcar Logo' w/PTC CSXT #3015

Road Number Specific ScaleTrains

• New road numbers
• Era: 2012 to present
• Series 3000 to 3064; built 04-06/2012
• Fully-assembled
• Multiple road numbers
• LED-illuminated ground lights on both sides of locomotive*
• LED-illuminated front, rear and rectangle side walkway lights*
• LED-illuminated front deck-mounted alternating ditch lights**
• Printed and LED lighted number boards*
• LSL (Locomotive Speed Limiter) indicator lights on cab sides (non-operating)
• Sill-mounted tow chain
• Semi-scale coupler buffers equipped with die-cast metal semi-scale SBE bottom shelf knuckle couplers
• Inside loop uncoupling levers with up down brackets
• Single trainline hose with silver gladhand
• Pilot-mounted battery charging receptacles
• Dual front dummy Multiple Unit (MU) receptacles mounted to pilot face
• Front raised and rear flush pilot-mounted Multiple Unit (MU) receptacles
• Front and rear single ECP brake equipment box and cable mounted on pilot face
• See-through round-hole stepwell steps
• Walkway with front anticlimber; no support brackets
• GE “nub” pattern walkway tread
• Late handrails with U-bolt caps and narrow rear most stanchion on long side rails
• Wide profile end handrails
• Sand box clean out door with knuckle buster latch and hinge
• Front nose headlight
• Front straight grab irons mounted directly to the nose
• Right nose door with window
• Front high-mounted (cab) numberboard housings
• Dual cab side blue flag holder
• Left side under cab front access bolted X panel; rear door with square corrugated grille
• Late cab with barrel bolt latches on subbase doors
• Detailed cab interior with separate floor, rear wall, seats, and control stand
• In cab grade crossing camera mounted on right side
• Tinted cab side windows
• Tall mirror mounted in front of sliding cab side windows on both sides
• Switching mirror mounted between rear of sliding cab side windows and fixed rear  window on engineer’s side
• Cab roof GE communications handler octagonal dome and dual long STI-CO PTC Dual Track Antenna System without Radome covers
• Inverter Cabinet with Bolted and hinged access door, Front Top X Panel Wider Than Rear X Panel, three lower X panels with 4 - 6 - 4 Bolt Pattern Lower X Panels
• See-through dynamic brake exhaust
• Left side dynamic brake cab: tri blower dynamic brake with flush exhaust
• Etched metal see-through dynamic brake intake grilles with blower motors visible inside
• Right side dynamic brake cab: door with grille, small grille, door with grille, and door with grille
• Dynamic brake cab door with high door handle and high mounted door handle bumper
• Long right side air intake grille
• Left side auxiliary cab: 3 tall doors with latches on the #2 door and short auxiliary cab filter box door
• Right side auxiliary cab: raised X panel door; 3 doors with latches on #2 and #3 doors
• ES44 style engine cab doors: latched first door in each set of three
• Three engine cab roof lift rings
• Lost wax brass cast Nathan AirChime K5HL horn mounted on engine cab roof
• ES44 style exhaust stack
• Left side exhaust cab doors: latched last door in set of three
• Flush heat exchanger housing with two-piece wide slot grille
• Late raised radiator grille
• 22 individually applied etched metal see-through radiator intake and exhaust grilles on sides and top of radiator compartment
• Left side radiator cab grille arrangement: Raised doors. Grilles - tall-short-tall-short-tall, no grille under brake wheel short front angled grille and two-piece rear angled grille
• Right side radiator cab grille arrangement: Raised doors. Grilles – tall, short, tall, short, short, tall, short, tall, short front angled grill, two-piece rear angled grille
• Flat water fill box with sight glass
• High mounted horizontal rear headlight
• Rear wide-spaced dual dummy Multiple Unit (MU) receptacles
• Accurately profiled frame with separately applied plumbing and cabling
• Late GE steerable trucks with separately applied brake cylinders, air plumbing, rotating bearing caps, and reinforcement bar under center journal
• Rust-color painted wheelsets
• Square handbrake chain bracket
• Toilet drain with exterior handle
• AEI tag mounted to right sidesill under rear battery box door
• Dual Graham-White (Prime) finned 075 air filters
• Graham-White 994-500 air dryer
• 5,300-gallon fuel tank with internal waste retention tank, digital fuel gauge, vertical fuel gauge, and round fuel gauge
• Dual fuel fills per side with rear fill “blanked”
• Flat top left side fuel tank top box
• Digital Fuel Gauges
• Long crankcase drainpipe attached to the end of the fuel tank
• Factory-applied wire grab irons, snowplow with grab irons, spare knuckles, trainline hoses with silver gladhands, 3-hose MU clusters with silver gladhands, uncoupling levers, windshield wipers, mirrors, sunshades, air tanks, fuel tank mounted electronic bell, brake wheel, and more
• Motor with 5-pole skew wound armature
• Dual flywheels
• All-wheel drive
• All-wheel electrical pick-up
• Directional LED headlights
• Printing and lettering legible under magnification
• Operates on Code 70, 83, and 100 rail
• Packaging safely stores model
• Minimum Radius: 18”
• Recommended Radius: 22”

DCC & sound equipped locomotives also feature:*****

• ESU-LokSound 5 DCC and Sound decoder with “Full Throttle”*****
• Two (2) cube-type speakers
• Accurate GEVO-12 prime mover and auxiliary sounds, horn, bell, and more
• ESU-designed PowerPack with two (2) super capacitors***
• Operates on both DC and DCC layouts*****

DCC & sound ready locomotives also feature:*****

• Operate using DC*****
• DCC ready with 21-pin connector

* Lighting features operate when using an ESU decoder with appropriate programming while operating using DCC

** In DC operation, both front ditch lights illuminate; rear ditch lights (if equipped) do not illuminate

*** Compatible with appropriately programmed ESU decoders while operating using DCC

**Lombard Hobbies Recommendation - As modelers ourselves we highly recommend ONLY running DCC on DCC systems and DC on DC systems, regardless of 'Dual-Mode' capability. This gives optimum performance and safeguards the unit from possible damage from running on a different system than originally intended and from any inexperienced operator errors.

Prototype History:

In 2002, GE released the first GEVO, a new series of locomotives that would replace the AC4400CW and Dash 9-44CW. The first two models were the ES44DC and ES44AC. The ES44C4 followed a few years later.

The new models were designed to meet the stricter diesel locomotive emissions standards imposed by Environmental Protection Agency (EPA) regulations. The EPA “Tier” emissions standards are a series, or Tiers, of allowable emissions levels based upon a locomotive’s date of manufacture. In 2005, Tier 2 took effect followed by Tier 3 in 2010 and Tier 4 took in 2015.

GE developed a new diesel engine, the 12-cylinder GEVO 12, to meet the new emission standards. Both the bore and stroke were increased to produce the same 4,400 horsepower as the older 7FDL16 16-cylinder engine.

The new prime mover drives an alternator-producing AC current that is rectified to DC. On the ES44DC, this powers the traction motors. On the ES44AC and ES44C4, the DC is “chopped” back into AC to power the traction motors. The two models share a common 73’ 2” frame and external appearance.

The external appearance is similar to the AC4400CW. The cab on early ES44s is almost identical. In 2009, GE changed the cab and nose, moving the nose door from the left side to the right side and replacing the curved seams with more square seams.

Unlike their predecessors, both the AC and DC versions of the ES44 have a large box behind the cab. The biggest visual difference is the larger “wing” structure over the radiator cab. The thicker radiators and related equipment in the radiator cab work to cool the exhaust, which reduces emissions.

Customer options and design changes have resulted in seven different dynamic brake configurations. The grilles on the sides of the radiator cab have also gone through seven configurations. The most recent units have changed the latches on the engine cab doors to match the ET44 units.

Although EPA Tier 4 standards went into effect in 2015, the ES44 series continues to be built. This is due to the Tier 4 Credits, a complicated system that allows GE to continue to build and various railroads to buy the ES44 based on the number of Tier 4 units built.

After 2 testbed units and 35 pre-production units, over 7,600 additional ES44s have been built. All of the major railroads including BNSF, Canadian National, Canadian Pacific, CSX, Norfolk Southern, and Union Pacific have fleets with 100s of units. Florida East Coast, Ferromex, Iowa Interstate, and Kansas City Southern also operate ES44s. In addition, 131 were built as lease units for Citirail.

The ES44 has become the best-selling diesel locomotive of all time.
