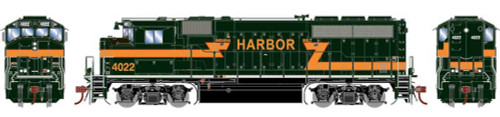

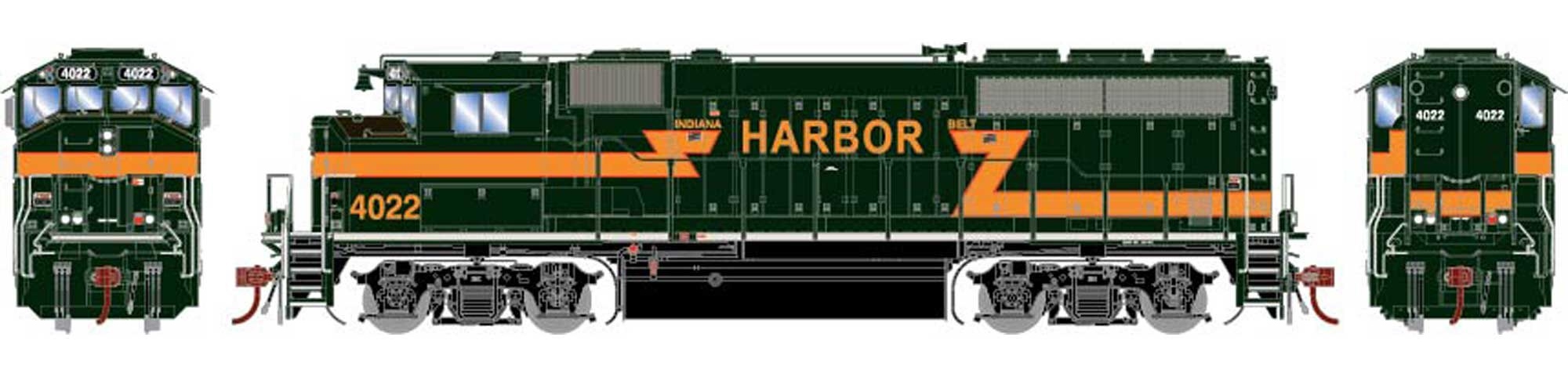

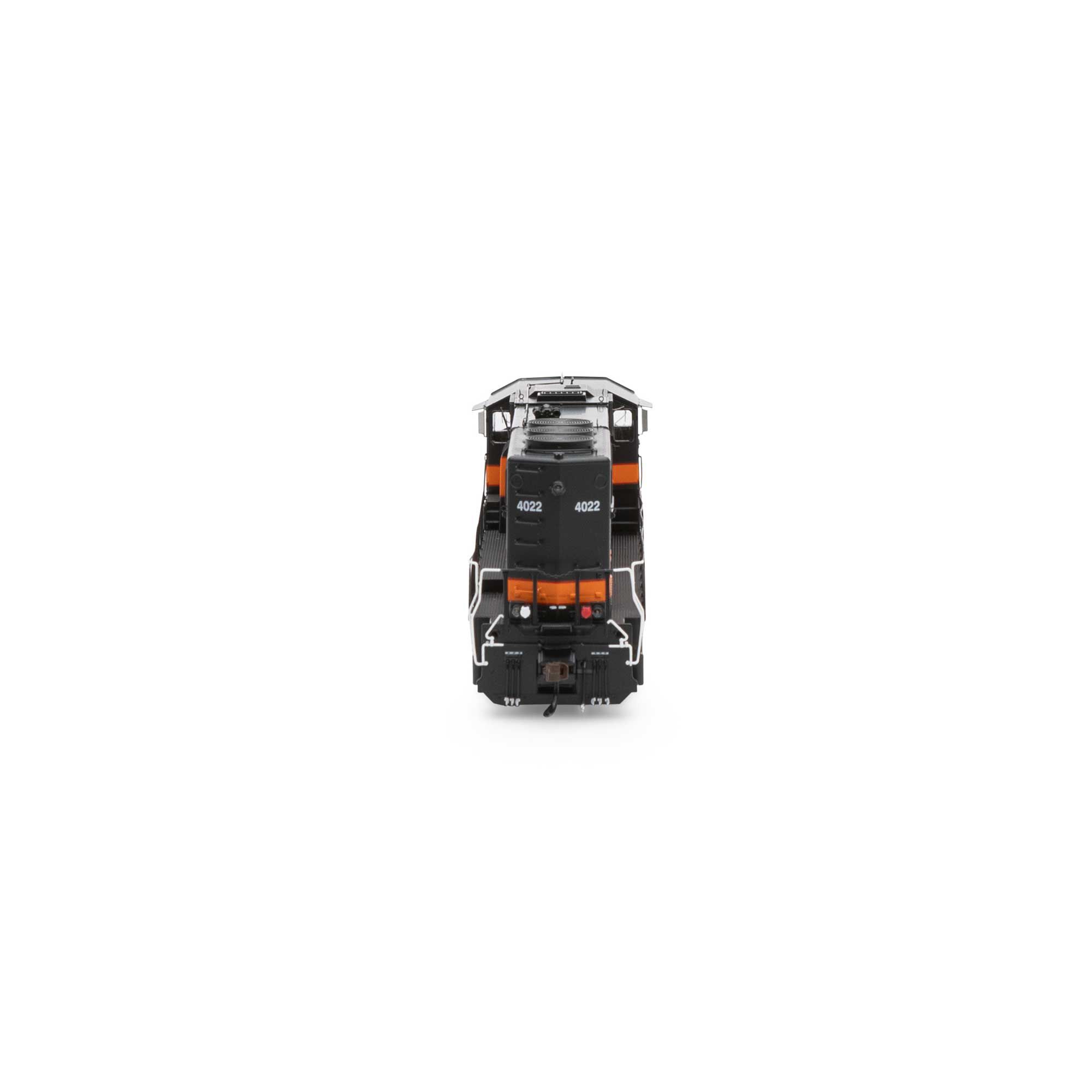

Athearn Genesis HO ATHG65086 DCC Ready EMD GP40-2L Indiana Harbor Belt IHB #4022

Description

Athearn Genesis HO ATHG65086 DCC Ready EMD GP40-2L Indiana Harbor Belt IHB #4022

IHB FEATURES:

• Painted over class lights
• Long hood-mounted horn
• Cab-mounted bell
• Removed plow
• Sinclair antenna
• 3600 Gallon fuel tank

The IHB acquired a few ex-CN GP40-2L's for local and road service in 2020. While the IHB modified the steps on the walkway sill, our model is a close representation and allows the modeler a great starting point for further modeling or to simply operate as is in this sharp scheme.

ROAD NUMBER SPECIFIC FEATURES:

• #4020
• Dual rear headlight
• square EMD ditch lights
• modified truck side frames.
• #4021
• Single rear headlight
• square EMD ditch lights.
• #4022
• Single rear headlight
• small round ditch lights.

GP40-2 LOCOMOTIVE FEATURES:

• Coupler cut levers
• MU hoses
• Trainline hose
• See through cab windows
• Full cab interior
• Walkway tread
• Windshield wipers
• Lift rings
• Wire grab irons
• Sander lines
• Fine-scale Celcon handrails for scale appearance
• Detailed fuel tank with fuel fillers, fuel gauges, & breather pipes
• McHenry scale knuckle couplers - Kadee compatible
• DCC-ready features Quick Plug plug-and-play technology with 21-pin NEM connector
• Scaled from prototype resources including drawings, field measurements, photographs, and more
• Accurately painted and printed paint schemes
• Genesis driveline with 5-pole skew wound motor, precision machined flywheels, and multi-link drivetrain
• All-wheel drive with precision gears for smooth & quiet operation
• All-wheel electrical pickup provides reliable current flow
• Wheels with RP25 contours operate on all popular brands of track
• LED Lighting for realistic appearance
• Heavy die-cast frame for greater traction and more pulling power
• Packaging securely holds for the model for safe storage
• Fully-assembled and ready-to-run
• Minimum radius: 18"

PRIMED FOR GRIME MODELS FEATURE

• Duplicated look and feel of ‘In Service’ equipment
• Faded base colors matched to the prototype
• Perfect starting point for adding grime and rust

SOUND-EQUPPED MODELS ALSO FEATURE

• Onboard DCC decoder with SoundTraxx Tsunami2 sound
• Sound units operate in both DC and DCC**
• Engine, horn, and bell sounds work in DC
• All functions NMRA compatible in DCC mode
• Precision slow speed control
• Program a multiple unit (MU) lashup with lead unit only horn, bell, and lights
• Many functions can be altered via Configuration Value (CV) changes

  **Lombard Hobbies Recommendation - As modelers ourselves we highly recommend ONLY running DCC on DCC systems and DC on DC systems, regardless of 'Dual-Mode' capability. This gives optimum performance and safeguards the unit from possible damage from running on a different system than originally intended and from any inexperienced operator errors.

PROTOTYPE SPECIFIC INFORMATION

By the early 1970s, many first generation diesels were reaching the end of their service lives. One of the most common replacement locomotives became the GP40-2. EMD began production of the 16-cylinder, turbocharged, 3000 horsepower engine in 1972. These locomotives were developed for service where higher horsepower and faster service were preferable. A major feature for the GP40-2 was the introduction of the ‘dash 2’ modular electrical cabinet. For more than 40 years, the GP40-2 has worked main line freights, locals, switching jobs, yard service, and helper service. Many remain in service today.
